‘Best of Breed’ wireless drives Chase Center experience

February 20, 2020 by Paul Kapustka Leave a Comment

An under-seat Wi-Fi AP enclosure at Chase Center, foreground, with a DAS enclosure visible to the left. Credit all photos (except where otherwise noted): Paul Kapustka, MSR (click on any picture for a larger image)

As stunning as Chase Center is visually, what you can’t see is equally powerful in adding to the fan experience. Namely, the wireless networks, and the gear that supports the connectivity.

Inside the shiny new home of the NBA’s Golden State Warriors, which sits on the edge of the San Francisco Bay, is a cellular DAS deployment from Verizon using Corning gear that may be the new forward-thinking model for cellular infrastructure for large public venues like stadiums and arenas. The 18,000-seat arena also has a Wi-Fi network using gear from Aruba, a Hewlett Packard Enterprise company, which supports the emerging Wi-Fi 6 standard for communications inside the main seating bowl.

But if you’re attending a Warriors game, or one of the many concerts scheduled at Chase Center, you may not ever see the equipment that brings the world-class connectivity to the fans. Both the DAS and the Wi-Fi networks utilize an under-seat antenna deployment method, just part of an aesthetic plan that does its best to minimize the visual impact of antennas and other wireless gear. Even deeper into the building is all the optical fiber supporting the networks, with capacity for future needs already in place.

During a mid-October 2019 visit before all the networks were fully tuned, Mobile Sports Report still got strong test results from both Wi-Fi and DAS networks in most areas in and around the arena, clear confirmation that the Warriors’ goal of having excellent wireless connectivity at their new home was right on track. And with the Corning ONE system in behind a DAS design built from the ground up with future needs in mind, as well as the expected capacity gains coming from Wi-Fi 6, the Warriors and their partners are confident they’ve built a wireless system worthy of their world-class venue goals.

“We feel extremely proud” of the venue’s wireless systems, said Brian Fulmer, director of information technology for the Golden State Warriors. Though the inevitable construction delays led to some late nights heading up to the arena’s Sept. 6, 2019 public debut, according to Fulmer all wireless systems were fully online for the opening Metallica concert, where the arena saw 2.58 terabytes of data used on the Wi-Fi network with another 2.69 TB used at another Metallica show a couple days later.

“It was a race to the finish line but we did it, and the performance speaks for itself,” said Fulmer.

Searching for ‘Best in Breed’

Editor’s note: This profile is from our latest STADIUM TECH REPORT, which is available to read instantly online or as a free PDF download! Inside the issue are profiles of the new Wi-Fi deployment at the University of Oklahoma, as well as profiles of wireless deployments at Fiserv Forum and the University of Florida! Start reading the issue now online or download a free copy!

If there was ever a chance to build the best-ever new arena, Chase Center was probably a once-in-a-lifetime opportunity. When you combine the championship run of the team on the court with a devoted fan base centered in one of the hottest economic markets ever, you have the liberty to search for quality instead of bargains on every level.

A Wi-Fi AP hovers over a concourse gathering area.

(Case in point: The Warriors were able to sell out of their new court-level luxury suites, which have rooms just under the stands that include private wine lockers and can cost up to $2 million per year. Clearly, this is a model that may not work in places that aren’t Silicon Valley.)

For the privately financed $1.4 billion building, the Warriors turned to consulting firm Accenture to help determine the “best in breed” technology partners, especially on the wireless front. Several Warriors executives interviewed for this story did all agree on one main point: The team was not trying to install any technology to win imaginary awards for being the best or fastest building out there. Instead, it was all about how technology, especially wireless, could help bring about a world-class experience during every visit.

“Nobody shows up [at an arena] just looking for fast wireless speeds,” said Mike Kitts, the Warriors’ senior vice president for partnerships. “They want to interact. We wanted to create unforgettable experiences in an engaging environment. With the end in mind of a world-class experience, we knew great technology would absolutely play a role.”

Like a team drafting top players, the Warriors ended up choosing Verizon to lead the distributed antenna system (DAS) for cellular wireless, and Aruba for Wi-Fi. To build its neutral-host system, Verizon chose Corning and the Corning ONE platform, with an installation led by Communication Technology Services (CTS).

“We certainly leveraged the expertise of Verizon, as well as AT&T (which is also on the DAS as a client),” said Fulmer. “They’ve done this countless times, and they have the lessons learned of painful experiences.”

Building a DAS that can handle growth

Anyone in the stadium business in Northern California doesn’t have to look too far or remember too long ago to recall one such example of the pain that the nonstop growth in cellular demand can cause. After the San Francisco 49ers’ brand-new home, Levi’s Stadium, opened in 2014, the also brand-new DAS had to be upgraded the very next season to ensure it had enough capacity for the upcoming Super Bowl 50. Verizon, which basically invented under-seat DAS antennas for that deployment, said it had a goal at Chase Center to build a DAS that didn’t need upgrading for at least a few years.

A Wi-Fi AP painted to blend into the outside facade.

Terry Vance, senior manager for Verizon’s Pacific market network performance group, said “the plan from day 1 was to build a DAS with capacity for today and tomorrow. We needed to build this DAS so that for the next 3 to 4 years, we won’t have to touch it.”

Verizon also had to build the DAS in a way that complied with the Warriors’ stringent requirements for clear sight lines, especially in the main bowl seating area. According to the Warriors’ Fulmer, the team “looked at handrail [enclosure] designs,” but rejected them in favor of an under-seat approach. Though more costly in both equipment and construction, the under-seat approach was Verizon’s favored method as well to get more density in the arena.

What Verizon ended up with was a design that currently uses 71 active sectors, with 42 of those in the seating bowl. According to Vance, all the sectors in the bowl area can basically be split into two parts if needed, for a total of 84 potential bowl sectors. Currently, Vance said there are 598 under-seat DAS antennas in use.

According to Vance the Corning ONE system’s extensive use of optical fiber makes it easier to add capacity to the system as needed.

“The fiber to the edge [in the Corning system] is especially useful as you go to 5G,” Vance said. Though it’s not part of the shared DAS system, Verizon also has full 5G bowl coverage at Chase Center, one of the first arena deployments in California. Verizon also is using a couple of MatSing ball antennas, mounted in the rafters to provide cellular coverage to the floor area for concerts and other non-basketball events.

Right now AT&T is the only other carrier on the DAS, with participation from T-Mobile and/or Sprint pending depending upon the outcome of those two companies’ potential merger.

A Verizon 5G speedtest. Credit: Verizon

Jessica Koch, sports and entertainment director of business development for Corning optical communications, gave praise to integrator CTS for its deployment know-how, which she said was “critical to the success of this project.” Corning, Koch said, knows that for fans in large venues like Chase Center, “reliable connectivity without restriction – all the time, at full speed, on any device, from anywhere – has become the expectation in our connected world.”

For Warriors president and COO Rick Welts, the best wireless system is one fans don’t see or worry about, but just use without concern.

“The best thing is if the phone just works, and I don’t have to think about it,” said Welts, who led a stadium tour during MSR’s October visit.

Though Verizon said the system went through some necessary optimization during the hectic early events schedule at Chase Center, Verizon engineers in December were getting DAS speed tests in excess of 100 Mbps for both download links in most locations, according to Philip French, vice president of network engineering for Verizon. Download speeds for 5G connections, he said, are breaking the 1 Gbps mark.

“This DAS is unique since it was the first one we’ve built with 5G in mind from the ground up,” French said. “It’s a very robust design, and for us this is the design of the future.”

Leading the way with Wi-Fi 6

Like several other stadiums that were being finished this past summer, Chase Center was able to take advantage of the release of Wi-Fi equipment that supports the emerging Wi-Fi 6 standard. Though all the new capabilities won’t be fully realized until most end-user devices also support the new version of Wi-Fi, having support for the technology inside the arena was key for the Warriors’ plans.

“You can never really be ‘future proofed’ but we were extremely fortunate with the timing [of Wi-Fi 6 gear arriving],” said the Warriors’ Fulmer. “We were right in the sweet spot for an initial deployment.”

Wi-Fi and DAS gear on the catwalk.

According to Aruba, Chase Center has approximately 250 Aruba 500 Series APs (which support Wi-Fi 6) deployed in the main seating bowl, mostly in under-seat enclosures. Overall, there are approximately 852 total APs used in the full Chase Center network, which includes coverage inside the building as well as in the connected outdoor plaza areas.

During our October visit, MSR got Wi-Fi speedtests of 27.3 Mbps on the download side and 18.2 Mbps on the upload side while standing outside the east entry doors near the big mirror balls that are selfie central for fans visiting the new arena. Inside the doors, our speedtest in the lobby got a mark of 55.8 Mbps / 68.6 Mbps.

On one upper concourse area, near several concession stands outside portal 57, we got a speedtest of 10.5 Mbps / 11.2 Mbps. In the seats in upper section 220 just before tipoff we got a mark of 46.0 Mbps / 28.0 Mbps, and in a lower-bowl concourse area outside portal 9 we got a test mark of 53.7 Mbps / 71.5 Mbps.

According to Aruba, several events other than the Metallica concerts have passed the 2 TB Wi-Fi data mark so far, with several events seeing more than 8,000 unique clients connected and marks of 6,000+ concurrent connected devices and 2.6 Gbps of throughput.

The Warriors’ Fulmer praised not just the Wi-Fi gear but the full “end to end network solutions” available from Aruba as well as from parent Hewlett Packard Enterprise, which is a founding partner at Chase Center.

“We’re still only three months in, and there’s a lot more that we want to do,” Fulmer said. “It was not a small undertaking. But I think we can let the technology speak for itself.”

Filed Under: 4G LTE, 5G, Aruba, AT&T, Basketball, Corning, DAS, Golden State Warriors, Hewlett-Packard, Levi's Stadium, NBA, Verizon Wireless, Wi-Fi Tagged With: 4G LTE, 5G, Aruba, Chase Center, DAS, Golden State Warriors, MatSing, Mobile Sports Report, NBA, Paul Kapustka, San Francisco, Stadium Wi-Fi, Verizon, Verizon Wireless, Wi-Fi, Wi-Fi 6

Fiserv Forum’s wireless networks ready for the Democratic Convention

February 12, 2020 by Paul Kapustka Leave a Comment

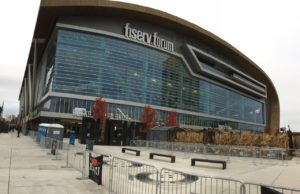

Milwaukee’s Fiserv Forum, home of the NBA’s Milwaukee Bucks and also the locale for this summer’s Democratic Convention. Credit all photos: Paul Kapustka, MSR (click on any picture for a larger image)

With one of the most demanding arena-sized events headed its way this upcoming summer, the wireless networks at Milwaukee’s Fiserv Forum appear to be more than ready to handle any audience demand for mobile connectivity.

With a full-featured distributed antenna system (DAS) deployed and operated by ExteNet Systems using gear from JMA Wireless, as well as a Wi-Fi network using Cisco gear, Fiserv Forum shows both the expertise of wireless providers who have a long history of knowing what works, as well as the foresight to add new techniques and technologies to combine high performance with the quality aesthetics that are the hallmark of the new home of the NBA’s Milwaukee Bucks.

And while a Mobile Sports Report visit this past fall for a Bucks game found all the wireless elements in top working order, the big event for the venue’s second year of operation will be the Democratic National Convention in July 2020. While the four-day nomination gathering is a test for any locale, Fiserv Forum’s forethought on how to prepare for numerous types of events in and around its uniquely designed structure has it well prepared to handle whatever wireless needs the convention will require.

It all starts with the DAS

Editor’s note: This profile is from our latest STADIUM TECH REPORT, which is available to read instantly online or as a free PDF download! Inside the issue are profiles of the new Wi-Fi deployment at the University of Oklahoma, as well as profiles of wireless deployments at Chase Center and the University of Florida! Start reading the issue now online or download a free copy!

Even in these days of predictions of the death of DAS, Fiserv Forum is proof that for high-profile venues, carriers will still participate in a quality deployment. And while many venues have just two or three cellular providers on their DAS, according to ExteNet, the Fiserv Forum DAS has five major carriers participating — AT&T, Verizon, T-Mobile, Sprint and U.S. Cellular.

Wi-Fi AP on an outdoor plaza light pole

Unlike some new arenas, where wireless is an afterthought to construction, ExteNet was involved early on, according to Manish Matta, vice president of marketing at Extenet.

“Getting in sooner rather than later is always better,” said Matta, who said ExteNet was well involved in the overall construction plans, ensuring that there were no delays associated with wireless deployments holding up construction of other parts of the building.

During a pregame tour in October with a team from ExteNet as well as with Robert Cordova, chief technology and strategy officer for the Bucks, Mobile Sports Report got an up-close look at some of the inside parts of the DAS network design, including the headend room and multiple antenna installations that were hard to find given their well-designed placements and camouflaging.

In addition to regular enclosures that were painted or otherwise placed in areas out of the main sight lines, ExteNet and JMA also utilized some of the newer circular flat-panel antenna enclosures that fit flush to ceilings, minimizing the exposure.

The 215 DAS antennas are powered by 40 remote units. According to JMA, the remotes are connected to the backbone with optical fiber, and use digital power to bring power to elements up to a mile away. With 16 sectors in the bowl design, the DAS is able to segment coverage to all parts of the arena, including the bowl as well as concourses and other in-house areas.

DAS antenna in a concourse location

ExteNet, which owns and operates the DAS as a neutral host, also installed 10 extra MatSing ball antennas in the rafters for additional top-down coverage. Though only AT&T is using the MatSings right now, ExteNet said they are integrated into the DAS design if other carriers should wish to utilize them in the future.

During a short walk-around before the Bucks game started, MSR got a DAS speedtest of 85.8 Mbps on the download and 14.9 Mbps on the upload, even though our older iPhone (on the Verizon network) doesn’t support all the latest DAS capabilities. Near the start of the game, as the pregame introductions were at their peak, we got a DAS mark of 18.0 Mbps / 15.7 Mbps in the middle of an upper-deck seating area (Section 227) and then a little bit after the game started, we got a mark of 21.3 Mbps / 12.5 Mbps near a bar area on the upper-level concourse.

Wi-Fi inside and out

On the Wi-Fi side of things, a visitor to Fiserv Forum can connect to the network even before coming in the doors, as part of the 623-AP Cisco installation includes Wi-Fi APs mounted on light poles in the “Deer District,” the plaza area on the stadium’s east side that connects to an outdoor beer garden and several bars and restaurants that were all part of the planned environment built in sync with the arena’s opening.

Before we went inside, we got a Wi-Fi speedtest of 40.5 Mbps / 40.2 Mbps in the middle of the Deer District plaza, which was hosting a pop-up haunted house attraction sponsored by Jack Daniels.

Inside the building, we again needed some guidance from the Bucks’ Cordova to locate some of the Wi-Fi APs, which are inside triangular enclosures that are either painted to match wall surfaces, or utilized as high-visibility section number signs, hiding the gear in plain sight.

Wi-Fi AP blended in to the wall covering

In the seating bowl, Fiserv Forum again shows its commitment to aesthetics with the smallest handrail enclosures we’ve ever seen, a discreet hand-sized enclosure that tucks the antenna components neatly into the top part of a railing, with the AP electronics hidden below the seating areas. Designed by integrator Johnson Controls and its ecosystem partners, Abaxent and AccelTex, the 28 special enclosures are also designed to be easy to detatch and re-attach (with something Johnson Controls calls a simple two-click “dart connector”) which facilitates keeping the network working when the lower-bowl seating areas need to be reconfigured for different events.

Sitting in a courtside seat near one of the handrail enclosures about 20 minutes before tipoff, we got a Wi-Fi speedtest mark of 15.8 Mbps / 33.2 Mbps. On the main concourse just after the game’s start we got a Wi-Fi mark of 28.6 Mbps / 60.4 Mbps, and later on at that same upper-concourse bar we got a mark of 39.9 Mbps / 61.1 Mbps.

Later on during the second quarter of the game, we watched another fan in our lower-bowl seating area spend most of the period keeping one eye on Monday Night Football streaming on his phone. “The Wi-Fi is really good here,” he noted.

Looking ahead to CBRS and 5G

As ExteNet and JMA prepare for the onslaught of the convention’s needs, in many areas the Bucks are already looking farther ahead, to future communications improvements including 5G millimeter wave deployments, and a possible introduction of CBRS services. Cordova, who is an advocate of the capabilities of private LTE networks over the CBRS spectrum, said the flexibility of provisioning services in a CBRS environment could be extremely useful for temporary needs, like during last year’s NBA playoffs when the NBA on TNT crew set up a temporary stage out in the plaza.

While the Bucks have already prepared for connectivity of all sorts out on the plaza space – from the top-level outside Panorama deck at Fiserv Forum that lets fans look out over the city, Cordova pointed out several metal boxes in the plaza that have home-run fiber connections for broadcast TV as well as remote power – there’s going to be all sorts of temporary connectivity needs when the convention media tents set up in the empty lot next door where the previous stadium, the Bradley Center, used to stand.

The fact that the Bucks and ExteNet were already well involved with planning for a July event in October the year before is just another sign of a networking operation that is well positioned now and already thinking about what the next necessary steps are.

Robert Cordova, chief technology and strategy officer for the Bucks, in the headend room

MatSing ball antennas point down from the rafters

The Daktronics centerhung video board

Filed Under: 4G LTE, 5G, AT&T, Basketball, Cisco, DAS, NBA, Sprint, T-Mobile, Verizon Wireless, Wi-Fi Tagged With: 4G LTE, 5G, AT&T, CBRS, Cisco, DAS, Deer District, Democratic National Convention, ExteNet Systems, Fiserv Forum, JMA, Milwaukee Bucks, Mobile Sports Report, NBA, Paul Kapustka, Stadium Wi-Fi, Verizon, Verizon Wireless, Wi-Fi

Super Bowl LIV sets new Wi-Fi record with 26.42 TB of data used

February 7, 2020 by Paul Kapustka Leave a Comment

Under-seat Wi-Fi (left) and DAS (right) enclosures at Miami’s Hard Rock Stadium. Credit: Extreme Networks

The big game is back on top of the unofficial Mobile Sports Report single-day Wi-Fi rankings, with a mark of 26.42 terabytes of data used at last Sunday’s Super Bowl LIV in Miami, according to figures reported by Extreme Networks.

What’s most interesting (to us) about the number is that it was generated in a venue that had approximately 8,000 fewer fans in attendance than last year’s Super Bowl (70,081 in Atlanta for Super Bowl 53 vs. 62,417 for Super Bowl 54). So not surprisingly the fans who connected to the Wi-Fi network at Miami’s Hard Rock Stadium (which uses Extreme gear) also set a new record for average data consumed per connected user, at 595.6 megabytes per user — a big jump from last year’s average data per user total of 492.3 MB.

With a reported 44,358 unique devices connected to the network this year’s Super Bowl also set a new mark for Super Bowl take rate at 71 percent; the top overall take rate mark still belongs to Ohio State, which saw 71.5 of its fans connected when Ohio Stadium saw 25.6 TB of Wi-Fi used this fall during a game against Michigan State. It’s worth noting that the average data per user mark from the Ohio State game was 341.6 MB. Going forward, we think this statistic is even more important than the overall data-used or total tonnage mark, since it more accurately reflects how the network is performing for fans. But we also like keeping a record of the biggest totals as well, since it does provide a high-water mark for stadium Wi-Fi usage.

Peak network usage hits 10 Gbps

Some more info from the great list put together by Extreme: The peak concurrent user number of 24,837 devices was seen during pre-game activities; the peak network throughput of 10.4 Gbps also occurred before the game started, according to Extreme. Of the final data total, 11.1 TB was used before the game started, with the balance of 15.32 TB being used after kickoff.

The most used streaming apps by fans were, in order of usage, Apple iTunes, Apple Streaming, YouTube, Spotify and Netflix; the most used social apps in order of usage were Facebook, Instagram, Twitter, Snapchat and Bitmoji. For sports apps, the most used in order of usage were ESPN, NFL, NFL OnePass, CBS Sports and ESPN Go.

According to Extreme, the Wi-Fi setup at Hard Rock Stadium uses some 2,000 APs, many of which are deployed in under-seat enclosures in the bowl seating. For Super Bowl LIV Verizon customers also had access to an automatic login feature, which in many other stadiums (including Ohio State and Mercedes-Benz Stadium in Atlanta) has accounted for a significant amount of the connected Wi-Fi users.

THE MSR TOP 40 FOR WI-FI

1. Super Bowl 54, Hard Rock Stadium, Miami, Fla., Feb. 2, 2020: Wi-Fi: 26.42 TB
2. Michigan State vs. Ohio State, Ohio Stadium, Columbus, Ohio, Oct. 5, 2019: Wi-Fi: 25.6 TB
3. Super Bowl 53, Mercedes-Benz Stadium, Atlanta, Ga., Feb. 3, 2019: Wi-Fi: 24.05 TB
4. Penn State vs. Ohio State, Ohio Stadium, Columbus, Ohio, Nov. 23, 2019: Wi-Fi: 20.7 TB
5. NCAA Men’s 2019 Final Four semifinals, U.S. Bank Stadium, Minneapolis, Minn., April 6, 2019: Wi-Fi: 17.8 TB
6. Wisconsin vs. Ohio State, Ohio Stadium, Columbus, Ohio, Oct. 25, 2019: Wi-Fi: 17.0 TB
7. Super Bowl 52, U.S. Bank Stadium, Minneapolis, Minn., Feb. 4, 2018: Wi-Fi: 16.31 TB
8. Maryland vs. Ohio State, Ohio Stadium, Columbus, Ohio, Nov. 9, 2019: Wi-Fi: 16.1 TB
9. Miami (Ohio) vs. Ohio State, Ohio Stadium, Columbus, Ohio, Sept. 21, 2019: Wi-Fi: 13.7 TB
10. NCAA Men’s 2019 Final Four championship, U.S. Bank Stadium, Minneapolis, Minn., April 8, 2019: Wi-Fi: 13.4 TB
11. Florida Atlantic vs. Ohio State, Ohio Stadium, Columbus, Ohio, Aug. 31, 2019: Wi-Fi: 13.3 TB
12. Cincinnati vs. Ohio State, Ohio Stadium, Columbus, Ohio, Sept. 7, 2019: Wi-Fi: 12.7 TB
13. Garth Brooks Stadium Tour, Empower Field at Mile High, Denver, Colo., June 8, 2019: Wi-Fi: 12.63 TB
14. 2018 College Football Playoff Championship, Alabama vs. Georgia, Mercedes-Benz Stadium, Atlanta, Ga., Jan. 8, 2018: Wi-Fi: 12.0 TB
15. Auburn vs. Florida, Ben Hill Griffin Stadium, Gainesville, Fla., Oct. 5, 2019: Wi-Fi: 11.82 TB
16. Super Bowl 51, NRG Stadium, Houston, Feb. 5, 2017: Wi-Fi: 11.8 TB
17. Pittsburgh Steelers vs. New England Patriots, Gillette Stadium, Foxborough, Mass., Sept. 8, 2019: Wi-Fi: 11.58 TB
18. Ohio State vs. Nebraska, Memorial Stadium, Lincoln, Neb., Sept 28, 2019: Wi-Fi: 11.2 TB
19. Atlanta Falcons vs. Philadelphia Eagles, Lincoln Financial Field, Philadelphia, Pa., Sept. 6, 2018: Wi-Fi: 10.86 TB
20. 2020 College Football Playoff Championship, LSU vs. Clemson, Mercedes-Benz Superdome, New Orleans, La., Jan. 13, 2020: Wi-Fi: 10.12 TB
21. Super Bowl 50, Levi’s Stadium, Santa Clara, Calif., Feb. 7, 2016: Wi-Fi: 10.1 TB
22. Taylor Swift Reputation Tour, Gillette Stadium, Foxborough, Mass., July 27, 2018: Wi-Fi: 9.76 TB
23. Northwestern vs. Nebraska, Memorial Stadium, Lincoln, Neb., Oct. 5, 2019: Wi-Fi: 9.2 TB
24. Tennessee Titans vs. Denver Broncos, Empower Field at Mile High, Denver, Colo., Oct. 13, 2019: Wi-Fi: 8.98 TB
25. Minnesota Vikings vs. Philadelphia Eagles, NFC Championship Game, Lincoln Financial Field, Philadelphia, Pa., Jan. 21, 2018: Wi-Fi: 8.76 TB
26. Jacksonville Jaguars vs. New England Patriots, AFC Championship Game, Gillette Stadium, Foxborough, Mass., Jan. 21, 2018: Wi-Fi: 8.53 TB
27. Northern Illinois vs. Nebraska, Memorial Stadium, Lincoln, Neb., Sept. 14, 2019: Wi-Fi: 8.5 TB
28. Rolling Stones No Filter Tour, Empower Field at Mile High, Denver, Colo., Aug. 10, 2019: Wi-Fi: 8.47 TB
29. South Alabama vs. Nebraska, Memorial Stadium, Lincoln, Neb., Aug. 31, 2019: Wi-Fi: 8.3 TB
30. Taylor Swift Reputation Tour, Broncos Stadium at Mile High, May 25, 2018: Wi-Fi: 8.1 TB
31. Chicago Bears vs. Denver Broncos, Empower Field at Mile High, Denver, Colo., Sept. 15, 2019: Wi-Fi: 8.09 TB
32. Kansas City Chiefs vs. New England Patriots, Gillette Stadium, Foxborough, Mass., Sept. 7, 2017: Wi-Fi: 8.08 TB
33. SEC Championship Game, Alabama vs. Georgia, Mercedes-Benz Stadium, Atlanta, Ga., Dec. 1, 2018: Wi-Fi: 8.06 TB
34. Green Bay Packers vs. Dallas Cowboys, Divisional Playoffs, AT&T Stadium, Arlington, Texas, Jan. 15, 2017: Wi-Fi: 7.25 TB
35. Stanford vs. Notre Dame, Notre Dame Stadium, South Bend, Ind., Sept. 29, 2018: 7.19 TB
36. (tie) Southern California vs. Notre Dame, Notre Dame Stadium, South Bend, Ind., Oct. 21, 2017: 7.0 TB
Arkansas State vs. Nebraska, Memorial Stadium, Lincoln, Neb., Sept 2, 2017: Wi-Fi: 7.0 TB
37. Tennessee vs. Florida, Ben Hill Griffin Stadium, Gainesville, Fla., Sept. 21, 2019: Wi-Fi: 6.94 TB
38. WrestleMania 32, AT&T Stadium, Arlington, Texas, April 3, 2016: Wi-Fi: 6.77 TB
39. Wisconsin vs. Nebraska, Memorial Stadium, Lincoln, Neb., Oct. 7, 2017: Wi-Fi: 6.3 TB
40. Super Bowl 49, University of Phoenix Stadium, Glendale, Ariz., Feb. 1, 2015: Wi-Fi: 6.23 TB

Filed Under: Apple, Apps, Extreme Networks, NFL, Super Bowl, Verizon Wireless, Wi-Fi Tagged With: Apple, Apps, Extreme Networks, Hard Rock Stadium, Kansas City Chiefs, Miami, Mobile Sports Report, NFL, Paul Kapustka, San Francisco 49ers, Stadium Wi-Fi, Super Bowl, Super Bowl 54, Super Bowl LIV, Verizon Wireless, Wi-Fi

Verizon sees 21.5 TB of cellular data used at Super Bowl LIV in Miami

February 4, 2020 by Paul Kapustka Leave a Comment

Verizon, which led the DAS effort at Miami’s Hard Rock Stadium, said it saw 21.5 terabytes of data used on its network “in and around the stadium” during Sunday’s Super Bowl LIV.

While we are still circling back with Verizon to see if we can get more granular details, we are guessing that this number comes from the network inside and immediately adjacent to the venue, and not the “2-mile radius” that other carriers are also reporting. We will update as we get more info. With AT&T’s report of 10.2 TB inside/around the stadium and 14.5 TB in the two-mile radius, we are somewhere above 35 TB total of cellular traffic for the big game, even before we have any stats from other carriers.

We are also asking Verizon to provide a total number of users on the 5G network the carrier deployed inside the stadium, but don’t hold your breath since total number of users is not a statistic carriers like to provide (as opposed to Wi-Fi stats, which almost always report the unique connections).

On an interesting note, Verizon said in an email to MSR that it saw 20.5 TB of data traffic on its networks around the stadium at Super Bowl 53 in Atlanta last year — as far as we know this is the first official number from Verizon about last year’s Super Bowl, when Verizon declined to provide MSR with any post-game numbers directly after the event. According to the Falcons IT staff there was only 12 TB total of DAS traffic on the in-stadium network during last year’s Super Bowl so the 20.5 TB of Verizon traffic must have included a lot of “around the stadium” traffic to get to that number.

Filed Under: 4G LTE, 5G, AT&T, CBRS, DAS, Super Bowl, Verizon Wireless Tagged With: 4G LTE, 5G, AT&T, CBRS, Hard Rock Stadium, Miami, Mobile Sports Report, NFL, Paul Kapustka, Stadium Wi-Fi, Super Bowl, Super Bowl LIV, Verizon Wireless

Wi-Fi breathes new life into ‘The Swamp’ at the University of Florida

February 3, 2020 by Paul Kapustka Leave a Comment

Florida’s Ben Hill Griffin Stadium got a full-venue Wi-Fi network this fall. Credit all photos: Paul Kapustka, MSR (click on any picture for a larger image)

Can Wi-Fi help bring new life to an old venue? In a way, that happened this fall when the University of Florida lit up a stadium-wide Wi-Fi network at Ben Hill Griffin Stadium, the 88,548-seat venue known by most as just “The Swamp.”

Though at Florida, like most SEC stadiums, the fans don’t really need any technology to fire them up, the addition of a NFL-caliber Wi-Fi network from Extreme Networks and Verizon was quickly embraced by fans in Gainesville, with one early contest against Auburn cresting the 11-terabyte mark for total data used. If nothing else, with the network in place a whole world outside of the stadium walls gets to see the arm-chomping craziness that makes Ben Hill Griffin Stadium one of the nation’s premier college football venues, thanks to social media and other apps that let fans share their game-day experience.

But beyond the obvious benefits for fans, the new network also brought new features to the Gators’ back-of-house business operations, including being able to connect a new point-of-sale system for concession stands, while also providing the potential for better digital engagement with the people in the stands. According to Florida athletic director Scott Stricklin, the addition of Wi-Fi has given Ben Hill Griffin Stadium somewhat of a new lease on life, with the ability of the new to augment the old.

“We had a lot of the inherent challenges of putting technology into a 90-year-old venue,” said Stricklin, “but it’s also interesting how technology allows you to work around those challenges.”

Under-seat APs in the club section

By partnering with stadium-application developer VenueNext, which has recently expanded its services to include a back-end POS system, Florida can now offer fans at home games a wide menu of digital-powered services, like the ability to order food and drinks ahead of time for pickup at express windows, and the ability to click on a phone to say “Water Me,” to have cold water delivered to the sunny-seat sections of the stadium.

For the business of running the stadium, the new VenueNext POS system allowed Florida to shed its old cash-drawer system to one that can now provide a connected way to manage concession stands.

“The new app and POS technology makes concessions better for everyone, it’s faster for those who order ahead of time, and the lines are shorter,” Stricklin said. “It’s a fascinating idea that technology can extend the useful life of a facility.”

Scenes from a retrofit: drilling and conduits

Editor’s note: This profile is from our latest STADIUM TECH REPORT, which is available to read instantly online or as a free PDF download! Inside the issue are profiles of the new Wi-Fi deployment at the University of Oklahoma, as well as profiles of wireless deployments at Chase Center and Fiserv Forum! Start reading the issue now online or download a free copy!

Like many other big-bowl stadiums at the big foot- ball schools, Ben Hill Griffin Stadium is a work built over time, with different renovations and additions adding layers of concrete and seating in ways that definitely did not have wireless networking in mind. And like many other schools, Florida had a tough time historically making the case for the capital outlay needed to bring Wi-Fi to a venue that might only see six or seven days of use a year.

At his previous job as athletic director for Mississippi State, Stricklin was part of an SEC advisory board that just five years ago didn’t see stadium Wi-Fi as a priority. Fast forward to 2019, and both the world in general and Stricklin have changed their views.

Flashing covers conduit leading to under-seat APs

“At one point, Wi-Fi was seen as a luxury item [for stadiums],” said Stricklin. “Now, connectivity is like running water or electricity. You’ve got to have it.”

An RFP process for a full-stadium Wi-Fi network ended up getting Florida to choose a $6.3 million proposal from Verizon and Extreme, which have paired together for similar big-stadium deployments before, mainly at NFL venues like Green Bay’s Lambeau Field and Seattle’s CenturyLink Field.

“Obviously they’re experienced,” Stricklin said of the Extreme-Verizon pairing. “The success they’ve had before played a big role in increasing our comfort level.”

Like at those stadiums, at Florida Verizon has its own separate SSID for Verizon customers, who can be automatically connected to the Wi-Fi upon entering the stadium. Other guests can sign in for free via a portal screen.

According to Matt Vincent, Florida’s director of infrastructure operations, construction of the network actually started during the 2018 season, with small-section roll-outs of the service. Over this past summer, however, the heavy lifting went in, with Extreme finishing the full-stadium design with 1,478 APs, all Wave2 802.11ac. Of that number, approximately 1,200 are in the main seating bowl, with most of those located in under-seat enclosures.

Unlike some other under-seat deployments where a separate core drill was done for each AP location, at Florida Extreme was able to reduce the number of concrete holes needed with some ingenious use of conduit and metal plating. In many areas of the stands, one hole through the concrete supports a number of APs, with conduit and metal plating covering the connections under and behind the seats and benches.

Gator fans can now share game memories while at the stadium

If you know what you are looking for, when you wander the maze of concourses under the seating sections you can spot a new network of conduit pipes that bring the cabling from the network out to the seats. In concourses, clubs and other areas with overhead mounting places, Extreme also used omni-directional antennas and other typical indoor equipment for coverage.

Getting to 11+ TB with fast, consistent coverage

At Florida’s biggest home game of the year, an Oct. 5 game against Auburn (a 24-13 Florida victory), Gator fans used 11.82 terabytes of data on the Wi-Fi network, one of the top totals ever seen at a college venue. Mobile Sports Report visited the stadium for a Nov. 9 game against Vanderbilt, and found strong performance on the network stadium-wide, including in harder-to-cover areas like concourses and narrow seating areas under overhangs.

Starting our testing in the club-seating lounge area, MSR got a Wi-Fi speedtest of 68.6 Mbps on the download and 65.2 Mbps on the upload, in front of a stuffed alligator with a very toothy grin. Heading down to the main entry gate, we got a mark of 50.2 Mbps / 61.8 Mbps as fans were streaming in just ahead of game time.

In a somewhat enclosed seating area on the lower level behind one end zone, we got a test of 21.9 Mbps / 29.9 Mbps just as the Gator mascots took the field for pregame activity. Moving up into the upper deck of section 43, we got a mark of 47.8 Mbps / 50.9 Mbps just after kickoff. Heading under the upper deck stands to the top concourse we got a mark of 43.6 Mbps / 55.5 Mbps, while drawing puzzled stares from fans wondering why we were taking pictures of the metal tubes running up the back of the seating floor.

An AP underneath a bench seating area

Stopping under the other end zone for a Gatorade break, we sat at some loge-type seats and got a mark of 61.2 Mbps / 64.4 Mbps. Then moving back out into the stands we got our up-close picture of the sign welcoming us to “The Swamp,” where we got a speedtest of 54.0 Mbps / 53.8 Mbps.

An island of connectivity among the crowds

While Florida’s Vincent spends most of his game days working to assure the network keeps running at top performance, he said that stadium staff enjoys the Wi-Fi as well.

“It’s been just a night and day difference for everyone since we added the Wi-Fi,” Vincent said, noting a tweet from a fan during the Auburn game that said “the only place in town his phone could connect was at the stadium.”

While saying the decision to deploy Wi-Fi was still somewhat of a leap of faith, Stricklin gave credit to the Florida staff members who prepared the reports outlining the benefits such a system could bring to the venue, for both the fans as well as for the school.

“It’s a little like Indiana Jones when he steps out [over the cliff] and doesn’t see the floor below him,” Stricklin said. “It’s an intense capital outlay [to build a Wi-Fi network] and I don’t know that we’ll ever see it all returned in terms of numbers. But again, I thank the staff and partners like VenueNext who all had a great vision of what a connected stadium could do. With mobile ticketing, you have the opportunity to learn who’s in your stadium. There are concrete ways we can use connectivity to engage, learn about fans, and keep up with them. It’s a wise investment.”

The white dots are under-seat APs

Wi-Fi coverage was good throughout ‘The Swamp’

Conduit carrying cables to under-seat APs proceeds in an orderly fashion up the underside of the stands

Filed Under: Apps, Concessions, Extreme Networks, NCAA Football, SEC, Verizon Wireless, Wi-Fi Tagged With: Ben Hill Griffin Stadium, Extreme Networks, Florida Gators, Gators, Mobile Sports Report, NCAA, Paul Kapustka, SEC, SEC football, Stadium Wi-Fi, The Swamp, under seat Wi-Fi, University of Florida, Verizon Wireless, Wi-Fi

Verizon: 5G, CBRS part of wireless network mix at Super Bowl LIV

January 29, 2020 by Paul Kapustka Leave a Comment

Hard Rock Stadium, home of Sunday’s Super Bowl LIV, will have 5G and CBRS networks in addition to the regular 4G LTE and Wi-Fi. Credit: Hard Rock Stadium

In addition to stadium-wide Wi-Fi and 4G LTE cellular coverage, Super Bowl LIV in Miami will also include 5G millimeter-wave networks as well as a small trial of live CBRS deployments inside Miami’s Hard Rock Stadium, according to Verizon.

The mix of wireless coverage is all designed to answer the annual ever-increasing demand for bandwidth at what has historically been the sporting world’s heaviest single day for wireless traffic, a trend Verizon expects to continue once again this year. In a phone interview from Miami, Andrea Caldini, Verizon vice president of network engineering, said the company’s two-year effort to bolster wireless coverage inside and outside the Super Bowl venue was all about increasing capacity in every way possible.

“It’s exciting that this will be the first 5G millimeter-wave Super Bowl,” said Caldini, who said Verizon used the stadium’s relatively new overhang roof to mount the 5G antennas. For the 4G LTE DAS, Verizon as neutral host followed the same playbook the company has used at other recent Super Bowl venues by installing under-seat DAS enclosures in most bowl-seating areas. AT&T, T-Mobile and Sprint are all also on the DAS, according to Verizon. Out of the 1,500-plus cellular antennas in the bowl seating area, approximately 1,100 of those are in under-seat enclosures, according to Verizon.

Under-seat wireless enclosures at Hard Rock Stadium. Credit: Verizon Wireless

Verizon also said that most of the bowl seating Wi-Fi coverage also comes from under seat enclosures, using gear from Extreme Networks. According to Extreme, the Wi-Fi network in Hard Rock Stadium has approximately 2,000 APs. Like in other NFL and college stadiums where it has a hand in both the cellular and Wi-Fi networks, Verizon customers at Hard Rock Stadium will have a separate Wi-Fi SSID that can autoconnect devices.

But to give you some idea of the breadth of the network, Caldini did say there are 258 sectors in the stadium DAS, and another 58 sectors in the DAS covering the extensive parking lot areas surrounding the venue. Verizon also has deployed a small cell network with 4G LTE, 5G and Wi-Fi for the parking lot and tailgate areas, Caldini said. And just to make sure the field areas are covered (for postgame ceremonies and for media use), Verizon also installed two MatSing ball antennas.

CBRS gets a test deployment

While its footprint will be much smaller, Verizon did say there will be some live networks at the game using the Citizens Broadband Radio Service (CBRS) spectrum, in nine stadium suites. Just recently approved by the FCC for full commercial use, the CBRS spectrum is of great interest to carriers and to venues due to its support of the LTE standard. According to Caldini, visitors in the suites where CBRS service is available will be able to directly connect to the network if their device supports the CBRS spectrum. Apple iPhone 11 devices, along with several other Android phones, currently have radio chips that support CBRS.

Caldini is excited about the possibilities the 150 MHz of CBRS spectrum could bring to venue deployments, and said Verizon will have an expanded CBRS deployment at Super Bowl LV in Tampa in 2021.

“You’ll see CBRS being a much bigger play next year,” Caldini said.

While the new-ish overhang roof that was installed during the latest renovation of Hard Rock Stadium did give Verizon a good place for equipment mounting, Caldini said there were some other construction-type hurdles that had to be overcome during the wireless network deployments.

The lack of any handrails, she said, led to the prominence of the under-seat antenna deployments; and because the light poles at Hard Rock Stadium are designed to be lowered when extreme weather (like hurricanes) hits the area, Verizon had to mount equipment lower down on the poles.

When it comes to potential emergency situations, Caldini noted that Verizon has installed its own power system for its networks, with batteries and generators back in the head end — recalling the situation at the Mercedes-Benz Superdome in New Orleans during Super Bowl 47, when a power outage delayed the game.

“If the power goes out [in Miami], the network will stay on,” Caldini said.

And while the limited number of consumer devices supporting 5G communications will probably keep 5G usage at Super Bowl LIV somewhat low, Caldini noted that by next year’s big game, it will likely be a different story.

Recalling earlier cellular generation changes, when initial devices were usually standalone “pucks” or laptop cards, Caldini was excited to see quick support for 5G emerging.

“It’s amazing how many devices are going to support 5G,” said Caldini, who predicts there will be more than 20 5G-enabled handsets out later this year. “It’s going to be very interesting to see what we can do [with applications] next year on 5G.”

Filed Under: 4G LTE, 5G, Apple, CBRS, DAS, Extreme Networks, NFL, Super Bowl, Verizon Wireless, Wi-Fi Tagged With: 4G LTE, 5G, CBRS, DAS, Extreme Networks, Hard Rock Stadium, Miami Dolphins, Mobile Sports Report, NFL, Paul Kapustka, Stadium Wi-Fi, Super Bowl, Verizon, Verizon Wireless, Wi-Fi
