Fiserv Forum’s wireless networks ready for the Democratic Convention

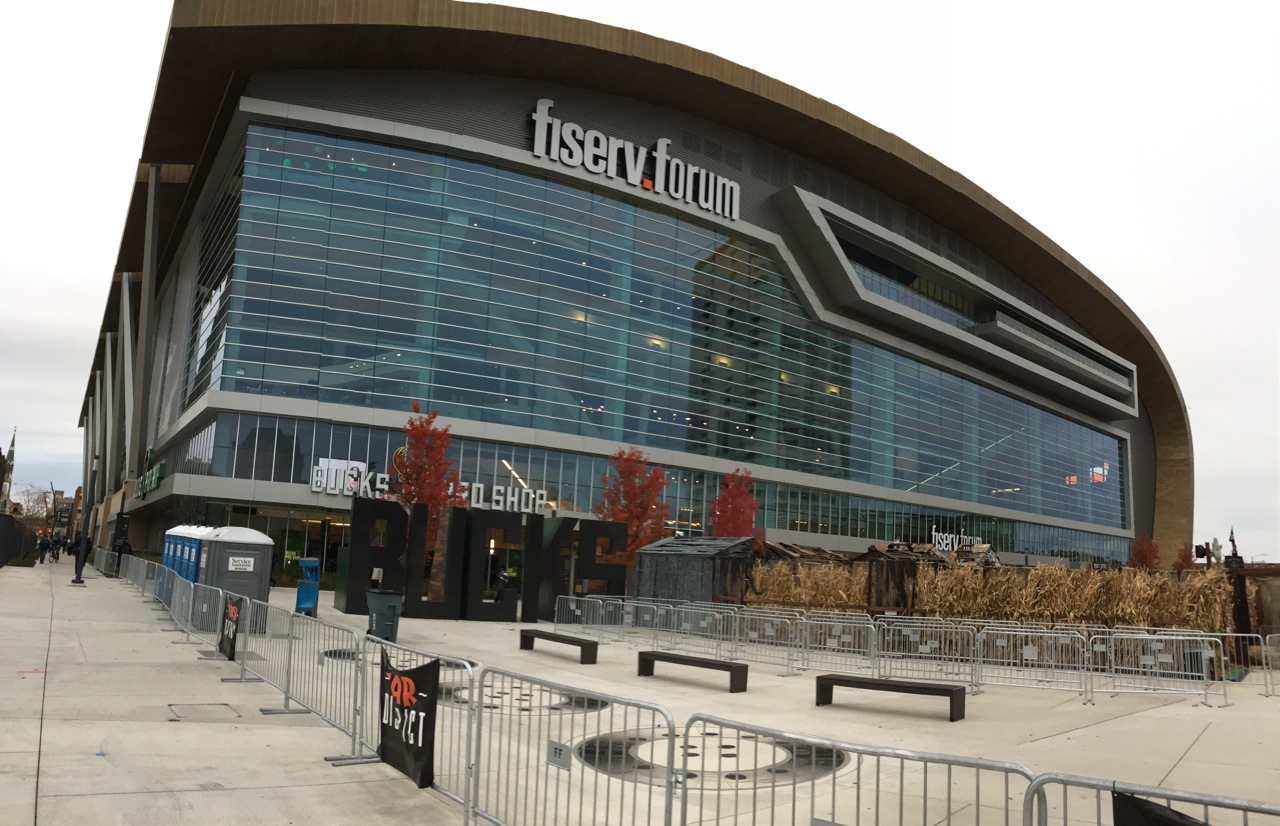

Milwaukee’s Fiserv Forum, home of the NBA’s Milwaukee Bucks and also the locale for this summer’s Democratic Convention. Credit all photos: Paul Kapustka, MSR (click on any picture for a larger image)

With one of the most demanding arena-sized events headed its way this upcoming summer, the wireless networks at Milwaukee’s Fiserv Forum appear to be more than ready to handle any audience demand for mobile connectivity.

With a full-featured distributed antenna system (DAS) deployed and operated by ExteNet Systems using gear from JMA Wireless, as well as a Wi-Fi network using Cisco gear, Fiserv Forum shows both the expertise of wireless providers who have a long history of knowing what works, as well as the foresight to add new techniques and technologies to combine high performance with the quality aesthetics that are the hallmark of the new home of the NBA’s Milwaukee Bucks.

And while a Mobile Sports Report visit this past fall for a Bucks game found all the wireless elements in top working order, the big event for the venue’s second year of operation will be the Democratic National Convention in July 2020. While the four-day nomination gathering is a test for any locale, Fiserv Forum’s forethought on how to prepare for numerous types of events in and around its uniquely designed structure has it well prepared to handle whatever wireless needs the convention will require.

It all starts with the DAS

Editor’s note: This profile is from our latest STADIUM TECH REPORT, which is available to read instantly online or as a free PDF download! Inside the issue are profiles of the new Wi-Fi deployment at the University of Oklahoma, as well as profiles of wireless deployments at Chase Center and the University of Florida! Start reading the issue now online or download a free copy!

Even in these days of predictions of the death of DAS, Fiserv Forum is proof that for high-profile venues, carriers will still participate in a quality deployment. And while many venues have just two or three cellular providers on their DAS, according to ExteNet, the Fiserv Forum DAS has five major carriers participating — AT&T, Verizon, T-Mobile, Sprint and U.S. Cellular.

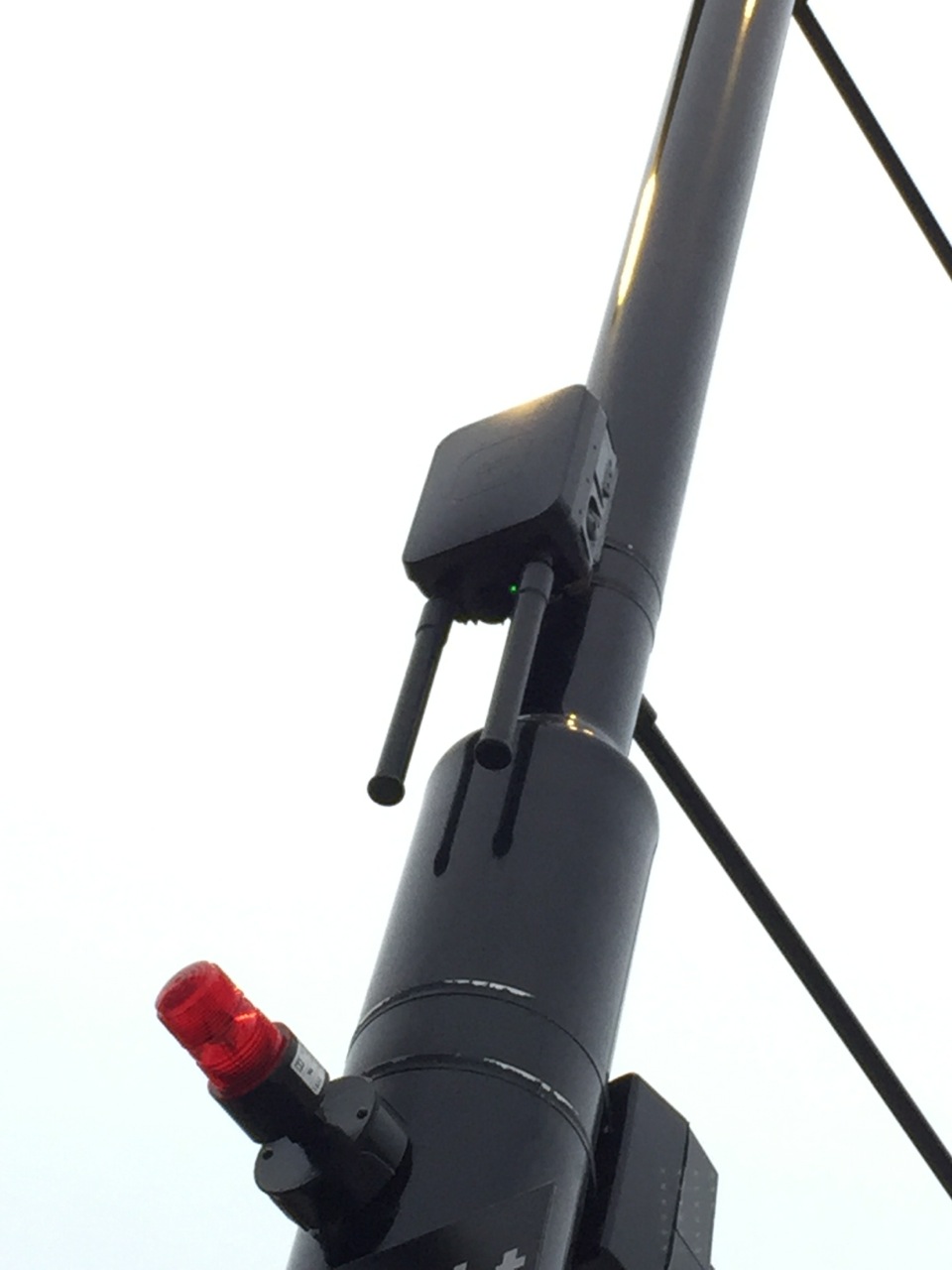

Wi-Fi AP on an outdoor plaza light pole

Unlike some new arenas, where wireless is an afterthought to construction, ExteNet was involved early on, according to Manish Matta, vice president of marketing at Extenet.

“Getting in sooner rather than later is always better,” said Matta, who said ExteNet was well involved in the overall construction plans, ensuring that there were no delays associated with wireless deployments holding up construction of other parts of the building.

During a pregame tour in October with a team from ExteNet as well as with Robert Cordova, chief technology and strategy officer for the Bucks, Mobile Sports Report got an up-close look at some of the inside parts of the DAS network design, including the headend room and multiple antenna installations that were hard to find given their well-designed placements and camouflaging.

In addition to regular enclosures that were painted or otherwise placed in areas out of the main sight lines, ExteNet and JMA also utilized some of the newer circular flat-panel antenna enclosures that fit flush to ceilings, minimizing the exposure.

The 215 DAS antennas are powered by 40 remote units. According to JMA, the remotes are connected to the backbone with optical fiber, and use digital power to bring power to elements up to a mile away. With 16 sectors in the bowl design, the DAS is able to segment coverage to all parts of the arena, including the bowl as well as concourses and other in-house areas.

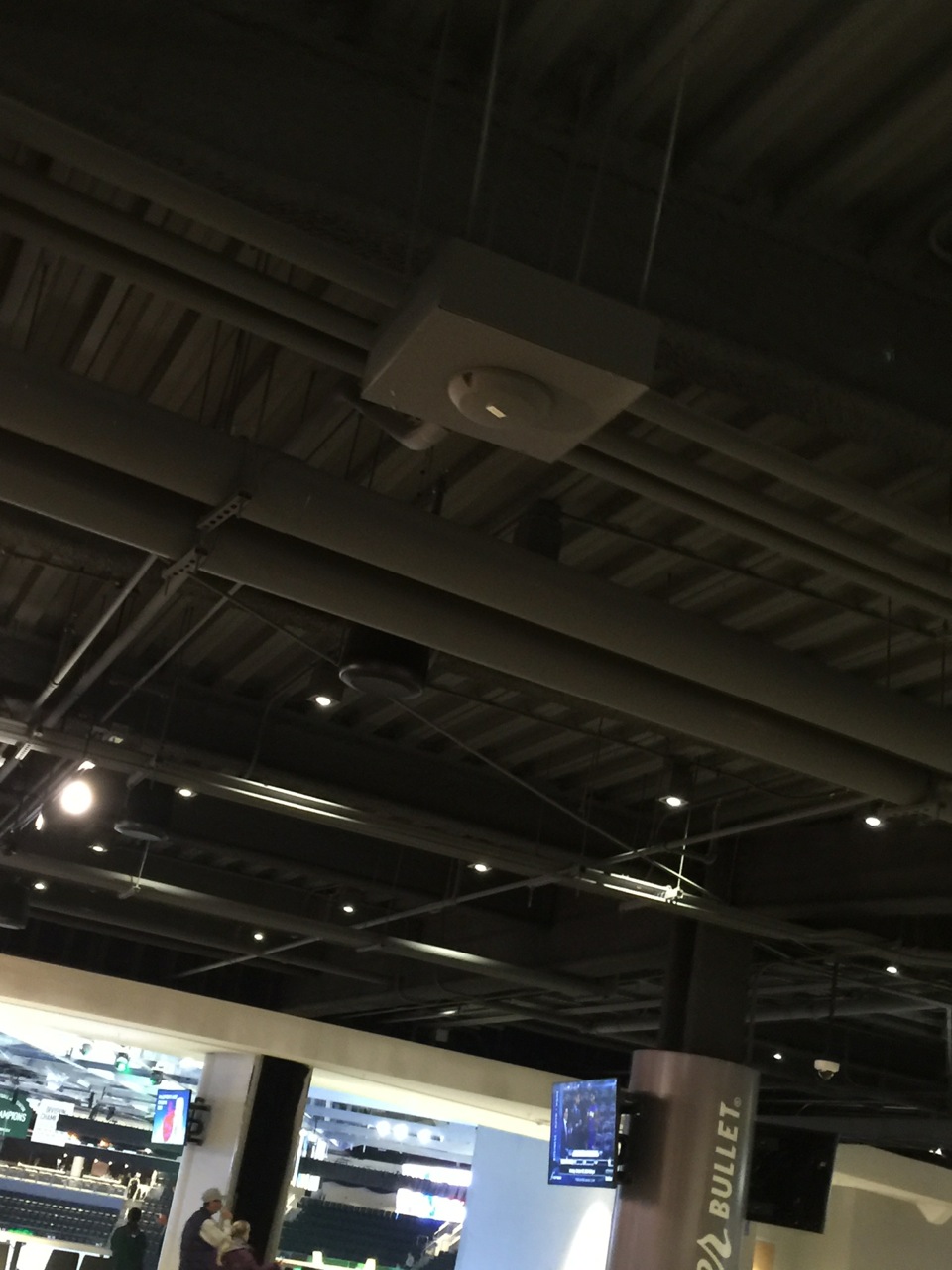

DAS antenna in a concourse location

ExteNet, which owns and operates the DAS as a neutral host, also installed 10 extra MatSing ball antennas in the rafters for additional top-down coverage. Though only AT&T is using the MatSings right now, ExteNet said they are integrated into the DAS design if other carriers should wish to utilize them in the future.

During a short walk-around before the Bucks game started, MSR got a DAS speedtest of 85.8 Mbps on the download and 14.9 Mbps on the upload, even though our older iPhone (on the Verizon network) doesn’t support all the latest DAS capabilities. Near the start of the game, as the pregame introductions were at their peak, we got a DAS mark of 18.0 Mbps / 15.7 Mbps in the middle of an upper-deck seating area (Section 227) and then a little bit after the game started, we got a mark of 21.3 Mbps / 12.5 Mbps near a bar area on the upper-level concourse.

Wi-Fi inside and out

On the Wi-Fi side of things, a visitor to Fiserv Forum can connect to the network even before coming in the doors, as part of the 623-AP Cisco installation includes Wi-Fi APs mounted on light poles in the “Deer District,” the plaza area on the stadium’s east side that connects to an outdoor beer garden and several bars and restaurants that were all part of the planned environment built in sync with the arena’s opening.

Before we went inside, we got a Wi-Fi speedtest of 40.5 Mbps / 40.2 Mbps in the middle of the Deer District plaza, which was hosting a pop-up haunted house attraction sponsored by Jack Daniels.

Inside the building, we again needed some guidance from the Bucks’ Cordova to locate some of the Wi-Fi APs, which are inside triangular enclosures that are either painted to match wall surfaces, or utilized as high-visibility section number signs, hiding the gear in plain sight.

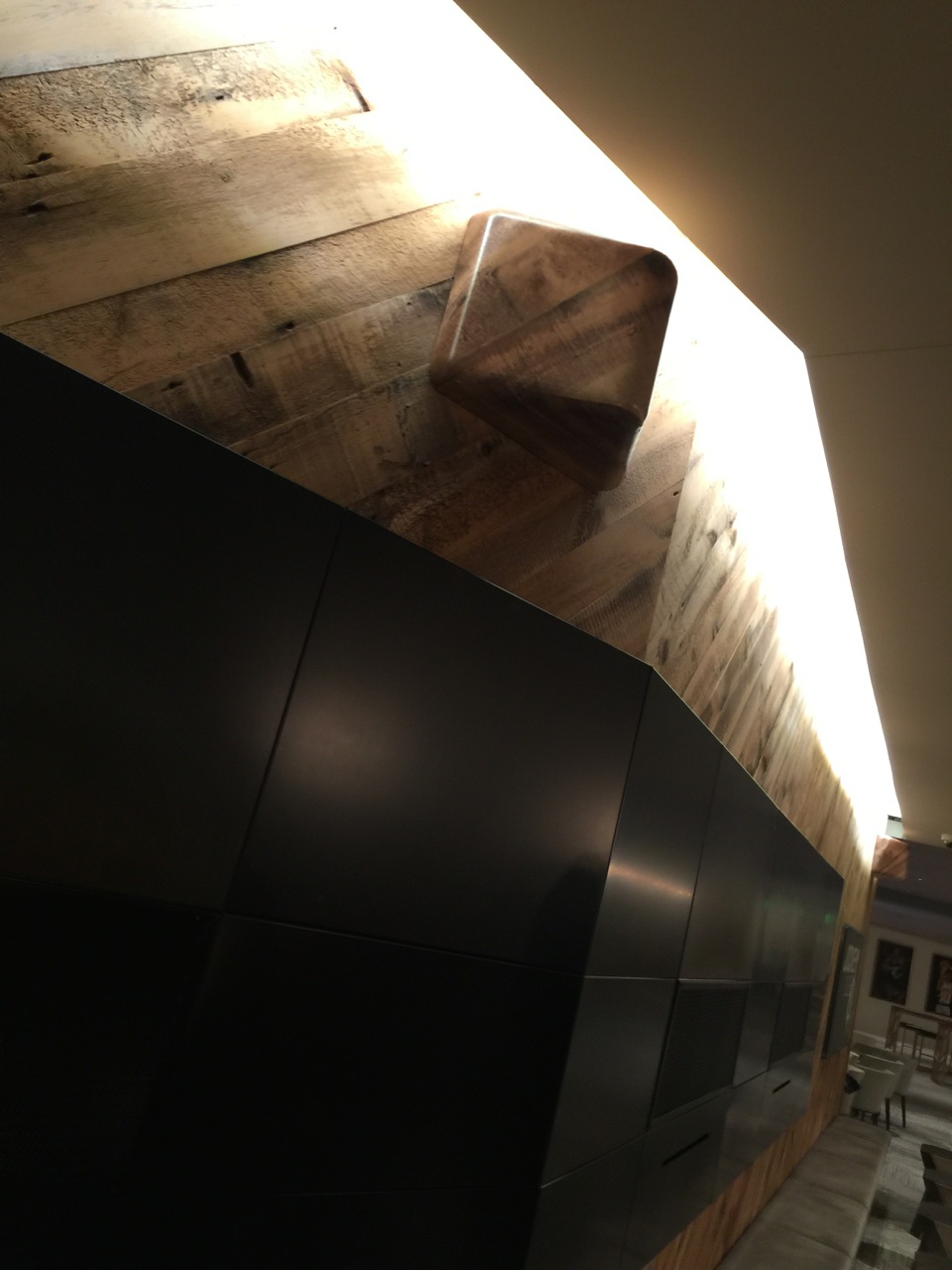

Wi-Fi AP blended in to the wall covering

In the seating bowl, Fiserv Forum again shows its commitment to aesthetics with the smallest handrail enclosures we’ve ever seen, a discreet hand-sized enclosure that tucks the antenna components neatly into the top part of a railing, with the AP electronics hidden below the seating areas. Designed by integrator Johnson Controls and its ecosystem partners, Abaxent and AccelTex, the 28 special enclosures are also designed to be easy to detatch and re-attach (with something Johnson Controls calls a simple two-click “dart connector”) which facilitates keeping the network working when the lower-bowl seating areas need to be reconfigured for different events.

Sitting in a courtside seat near one of the handrail enclosures about 20 minutes before tipoff, we got a Wi-Fi speedtest mark of 15.8 Mbps / 33.2 Mbps. On the main concourse just after the game’s start we got a Wi-Fi mark of 28.6 Mbps / 60.4 Mbps, and later on at that same upper-concourse bar we got a mark of 39.9 Mbps / 61.1 Mbps.

Later on during the second quarter of the game, we watched another fan in our lower-bowl seating area spend most of the period keeping one eye on Monday Night Football streaming on his phone. “The Wi-Fi is really good here,” he noted.

Looking ahead to CBRS and 5G

As ExteNet and JMA prepare for the onslaught of the convention’s needs, in many areas the Bucks are already looking farther ahead, to future communications improvements including 5G millimeter wave deployments, and a possible introduction of CBRS services. Cordova, who is an advocate of the capabilities of private LTE networks over the CBRS spectrum, said the flexibility of provisioning services in a CBRS environment could be extremely useful for temporary needs, like during last year’s NBA playoffs when the NBA on TNT crew set up a temporary stage out in the plaza.

While the Bucks have already prepared for connectivity of all sorts out on the plaza space – from the top-level outside Panorama deck at Fiserv Forum that lets fans look out over the city, Cordova pointed out several metal boxes in the plaza that have home-run fiber connections for broadcast TV as well as remote power – there’s going to be all sorts of temporary connectivity needs when the convention media tents set up in the empty lot next door where the previous stadium, the Bradley Center, used to stand.

The fact that the Bucks and ExteNet were already well involved with planning for a July event in October the year before is just another sign of a networking operation that is well positioned now and already thinking about what the next necessary steps are.

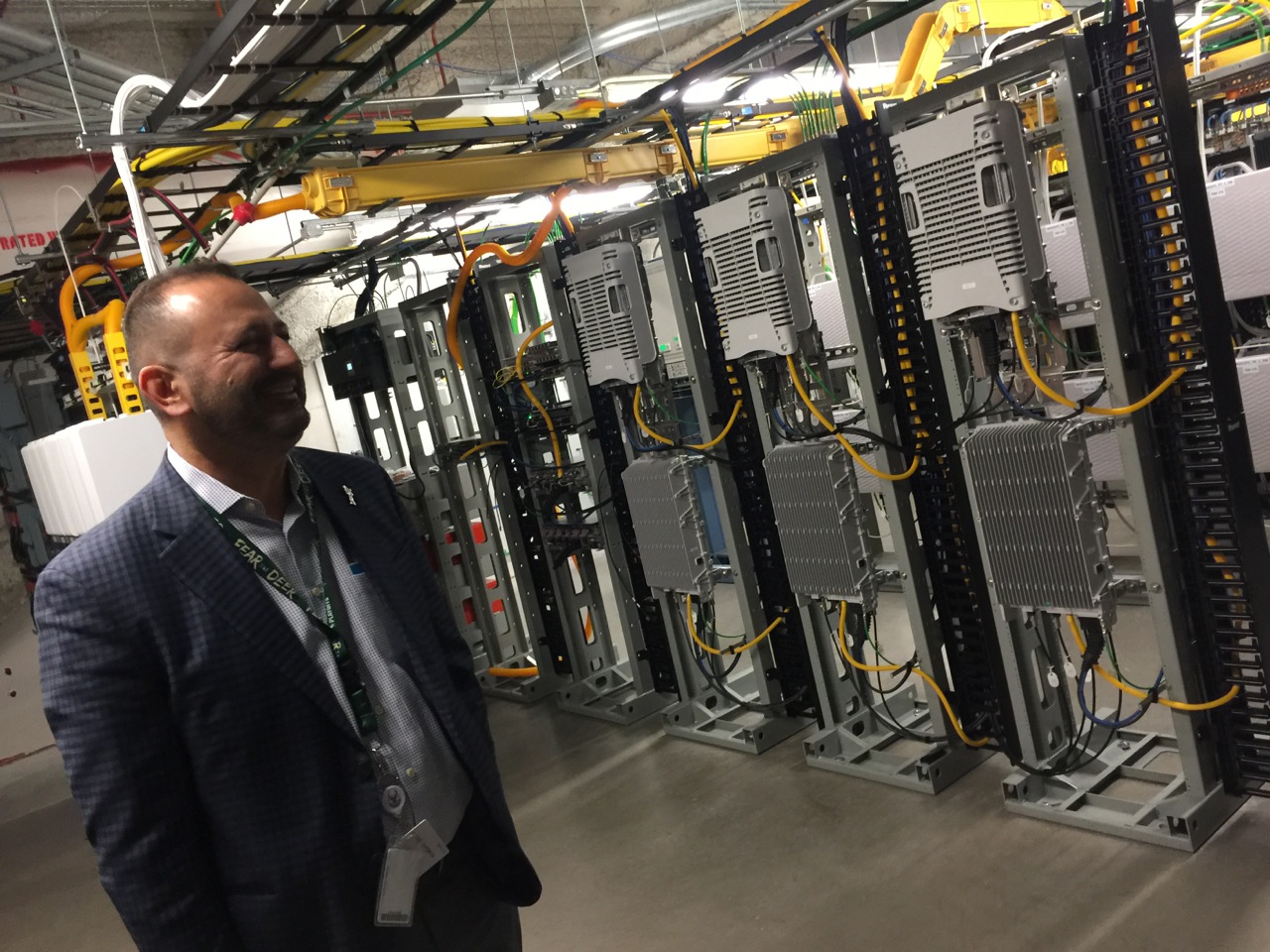

Robert Cordova, chief technology and strategy officer for the Bucks, in the headend room

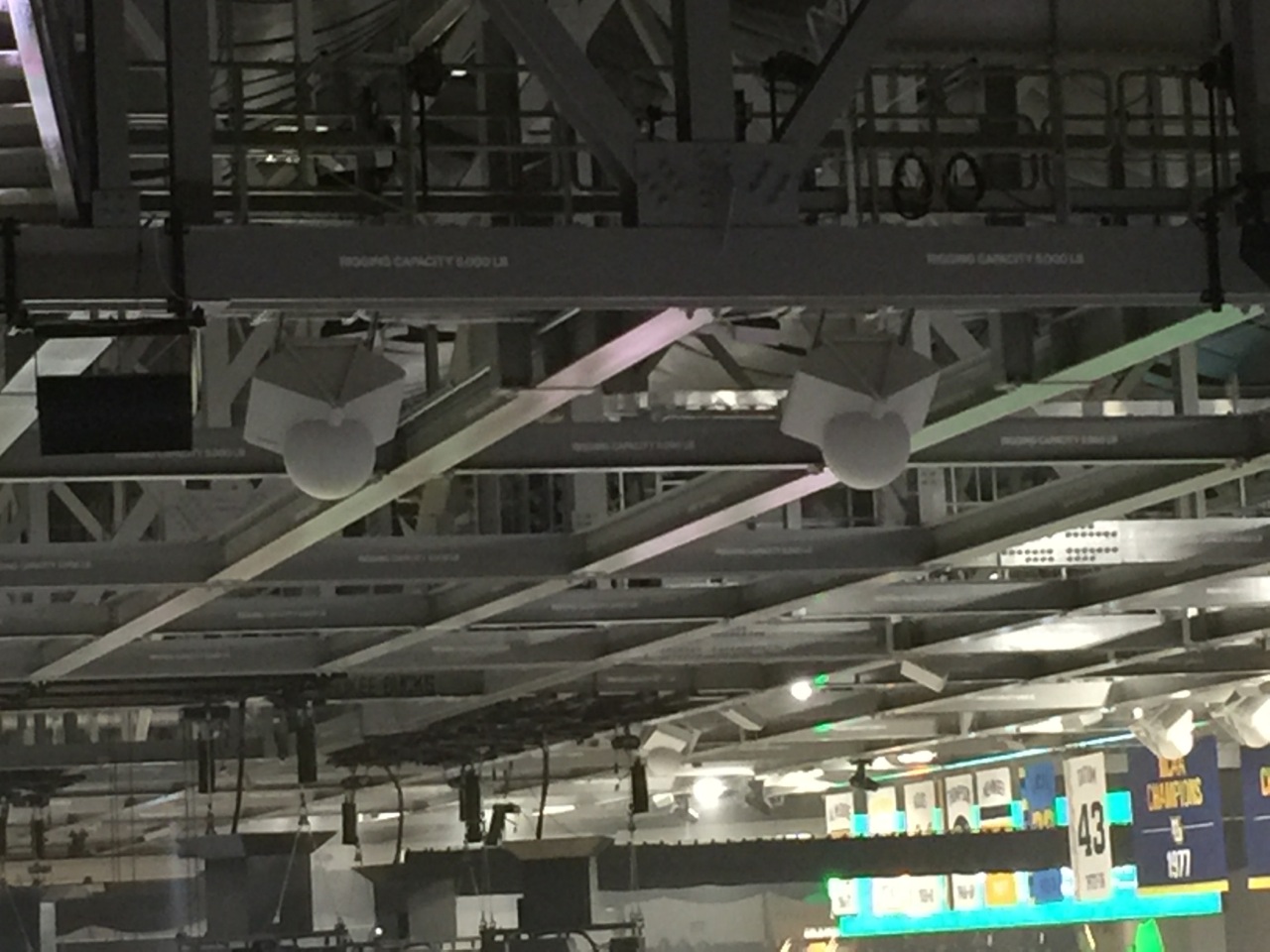

MatSing ball antennas point down from the rafters

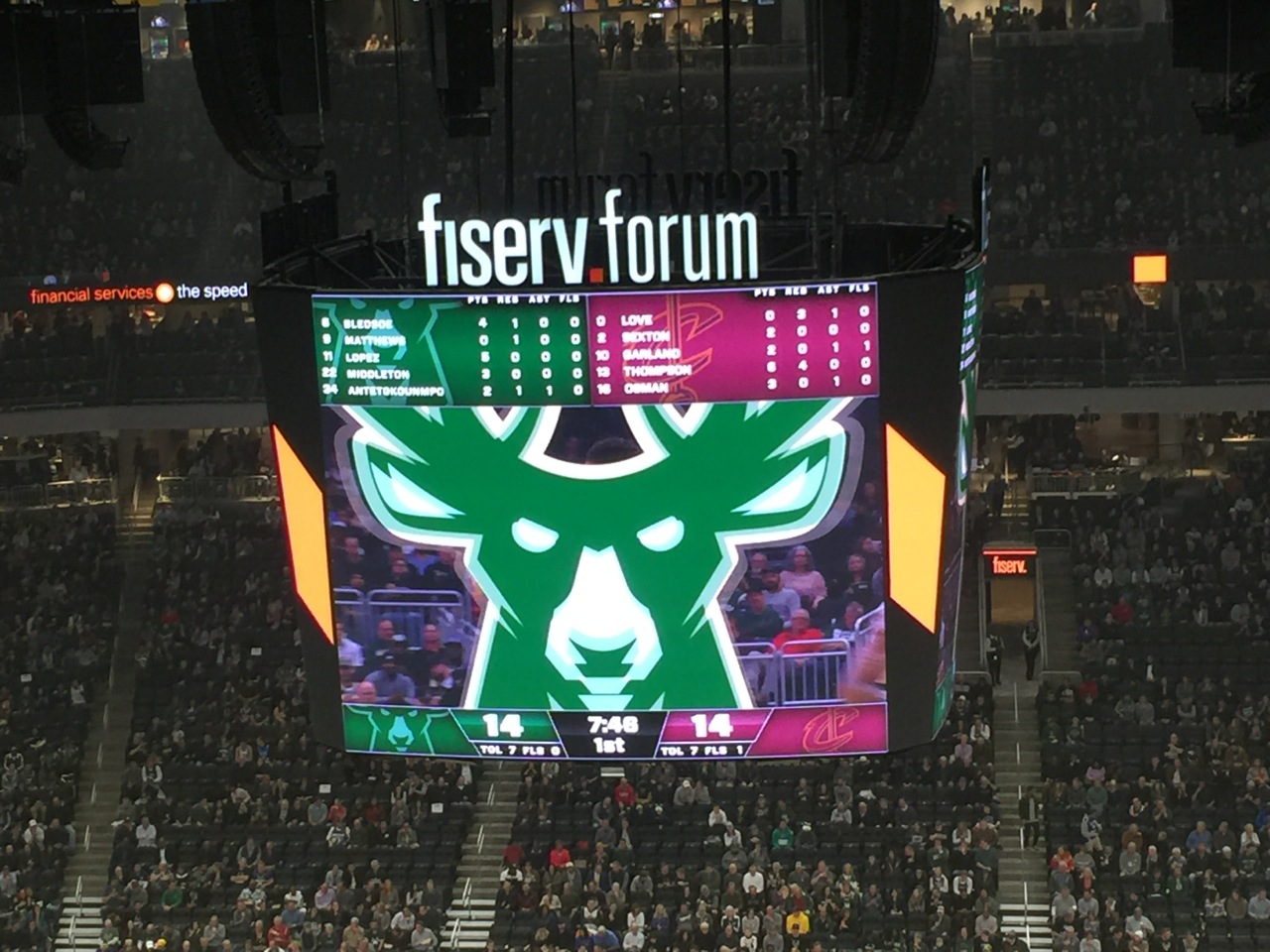

The Daktronics centerhung video board
