New Report: FC Cincinnati’s West End Stadium using technology to support safer, easier fan experience

Stadium Tech Report is pleased to announce our Spring 2021 issue, with a profile of the technology being deployed at FC Cincinnati’s new West End Stadium. With an eye toward making the fan experience better and safer, the Atomic Data-led deployment of Wi-Fi, entry and concessions technologies provides a robust technology infrastructure. Read our lead profile for all the details!

Our latest issue also has some forward-thinking analysis, including Bill Anderson’s essay on why Frequency Neutral Networks are the “magic” that will provide the kind of wireless connectivity users are seeking. Paul Kapustka weighs in on why concessions are going all-digital and cashless, and why that’s a good thing for everyone involved.

We are also featuring our second interview in our “Design Vision” series, this time with Kevin Devore of ME Engineers. We also have a recap of the wireless usage from Super Bowl LV in Tampa, where the reduced-size crowd still consumed data at a rate equal to past “big games.”

If you are reading on a desktop or tablet, you can view all the stories in our web magazine format.

We’d like to take a quick moment to thank our sponsors, which for this issue include Corning, Boingo, MatSing, Cox Business/Hospitality Network, American Tower, CommScope, AmpThink, ExteNet Systems and Belden. Their generous sponsorship makes it possible for us to offer this content free of charge to our readers. We’d also like to welcome readers from the Inside Towers community, who may have found their way here via our ongoing partnership with the excellent publication Inside Towers.

New Report: AT&T Stadium rewrites the DAS playbook

Stadium Tech Report is pleased to announce our Winter 2021 issue, with an in-depth profile of the new, groundbreaking distributed antenna system (DAS) recently installed at AT&T Stadium, home of the Dallas Cowboys. With its super-dense deployment of approximately 670 network zones and use of cutting-edge MatSing Lens antennas, the new cellular network is designed to handle the biggest demands from the largest crowds at what is probably the busiest football-sized arena anywhere.

We are also debuting some of our new, expanded areas of content coverage, with an in-depth look at how a converged compute infrastructure can help venues recover leaseable space and reduce operating expenses. Also look for our inaugural “Design Vision” interview, where we talk to Chris Williams, president of WJHW, to get his insights on stadium design and on two of his company’s recent projects, SoFi Stadium and Allegiant Stadium.

Also, please make sure you read my “letter from the editor” at the start of this issue, as it describes the business and strategic changes taking place here at Stadium Tech Report.

We’d like to take a quick moment to thank our sponsors, which for this issue include Corning, Boingo, MatSing, Cox Business/Hospitality Network, Comcast Business, American Tower, CommScope, AmpThink, ExteNet Systems and Ventev. Their generous sponsorship makes it possible for us to offer this content free of charge to our readers. We’d also like to welcome readers from the Inside Towers community, who may have found their way here via our ongoing partnership with the excellent publication Inside Towers.

READ THE REPORT NOW, no email or registration required!

New Report: Inside the technology at SoFi Stadium and Allegiant Stadium

Stadium Tech Report is pleased to announce our FALL 2020 issue, with profiles of two of the most innovative new venues to open – SoFi Stadium in Los Angeles and Allegiant Stadium in Las Vegas! While neither venue will host fans this NFL season, our profiles will dig in-depth to tell you about the technologies in place to make these stadiums the most advanced when it comes to the game-day experience. We also have a substantive news analysis story about how venues and product and service suppliers are planning to tackle two of the biggest venue issues when it comes to hosting fans during a pandemic – venue entry and concessions operations.

We’d like to take a quick moment to thank our sponsors, which for this issue include Corning, Boingo, MatSing, Cox Business/Hospitality Network, Comcast Business, American Tower, CommScope, AmpThink and ExteNet Systems. Their generous sponsorship makes it possible for us to offer this content free of charge to our readers. We’d also like to welcome readers from the Inside Towers community, who may have found their way here via our ongoing partnership with the excellent publication Inside Towers. We’d also like to thank the SEAT community for your continued interest and support.

We would like to take a moment here and give some special thanks to the people at SoFi Stadium and at Allegiant Stadium, and to all the other subjects we interviewed for this issue, for their extra help when it came to providing interview time and especially photos to help bring our publications to life. We quite literally couldn’t have done this without your help, and we look forward to visiting venues again in the near future!

Dodgers up the ante with new Wi-Fi 6 network

Dodger Stadium upgraded its wireless with a new Wi-Fi 6 network installed this past offseason. Credit all photos: Los Angeles Dodgers (click on any picture for a larger image)

Professional sports may have put games and exhibitions on hold, but a handful of IT executives from Major League Baseball teams have been using pandemic downtime to upgrade Wi-Fi and DAS systems in their stadiums.

Case in point: The Los Angeles Dodgers just completed the league’s first Wi-Fi 6 overhaul along with adding new 5G cellular antennas to ensure Blue Believers stay seamlessly connected to social media, email, text and good old-fashioned voice calls during home games. When baseball returns to venues, Dodger Stadium and the new Globe Life Field in Arlington, Texas, will lead the way as the first stadiums with Wi-Fi 6 fan-facing networks.

“We’re up against the same challenges that every stadium has, which is how to deal with the density of individuals trying to connect simultaneously – a challenge that’s unique to our industry,” explained Ralph Esquibel, vice president of IT for the Dodgers. “Wi-Fi 6 was created for this kind of high-density environment.”

Wi-Fi 6, better known in IEEE circles as the 802.11ax standard, is a significant upgrade for Wi-Fi networks that started appearing last year. Among its benefits are that use of the new standard can increase the amount of available spectrum and number of channels available for users; it can also significantly accelerate users’ average data rates, while also decreasing the amount of battery power used by devices searching for a Wi-Fi connection.

As long as they have newer phones that support the new standard, Wi-Fi 6 networks provide everything a team could want for its connection-conscious fans.

Replacing the Wi-Fi 4 network

Editor’s note: This profile is from our latest STADIUM TECH REPORT, which is available to read instantly online or as a free PDF download! Inside the issue is our comprehensive study on how venues can cope with Covid-19, plus a profile of Globe Life Field! Start reading the issue now online or download a free copy!

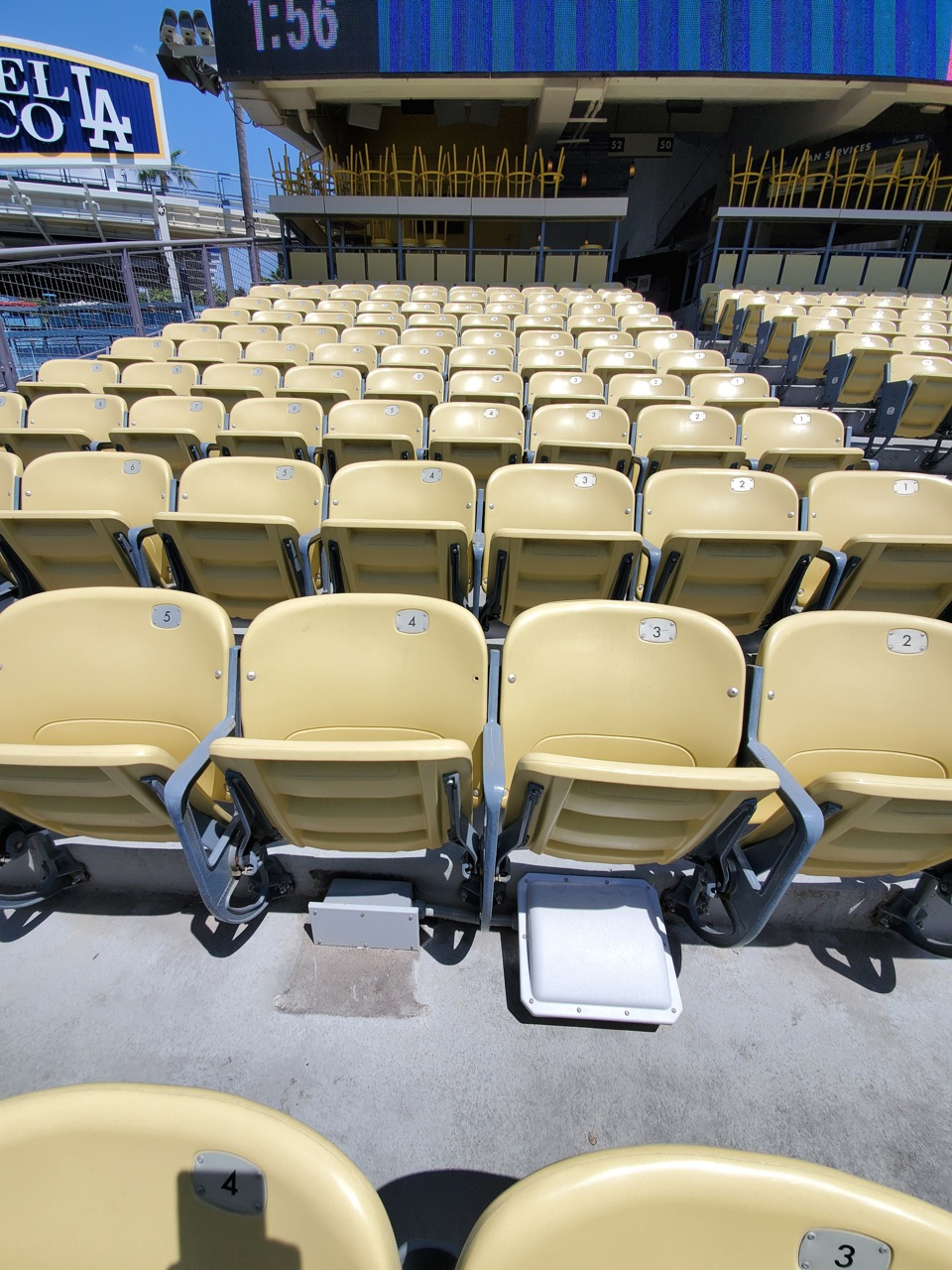

Like its predecessor, the Wi-Fi 6 network will use under-seat APs in the bowl

It’s been barely five years since the Dodgers installed Wi-Fi 4 in the stadium, making use of under-seat APs and what were the league’s first APs cleverly concealed inside hand railings for even denser coverage. There were about 900 APs powering the network then, which easily accommodated 8,000 simultaneous users on its maiden voyage.

“It was state of the art back at that point in time,” Esquibel recalled. But usage and uptake quickly soared among fans and it wasn’t long before 30,000 simultaneous users were contending for bandwidth at each game.

“That was when I’d get a call from previous ownership, usually sometime in the second inning with, ‘I can’t get on email or make a phone call…’,” Esquibel laughed. Suddenly, it didn’t matter how close your seat was to home plate; anybody watching the game became inadvertent victims of Wi-Fi’s highly successful rollout at Dodger Stadium.

Other baseball stadiums experienced similar capacity and uptake issues. That’s in part what prompted MLB to dispatch its technology committee to look at technology upgrades to make sure baseball fans could do all the wireless networking they wanted to while watching a game. Though MLB did not respond to a request for more information, STR was able to get some information from other sources about the pending upgrade plans.

Wi-Fi 6 coming to more ballparks

According to our sources, MLB technologists settled on Wi-Fi 6 upgrades as their next strategic push. So while the Dodgers will be the first baseball team to upgrade to Wi-Fi 6, other teams were also reportedly in the first steps of adding Wi-Fi 6 before the coronavirus pandemic put a hold on many upgrade plans.

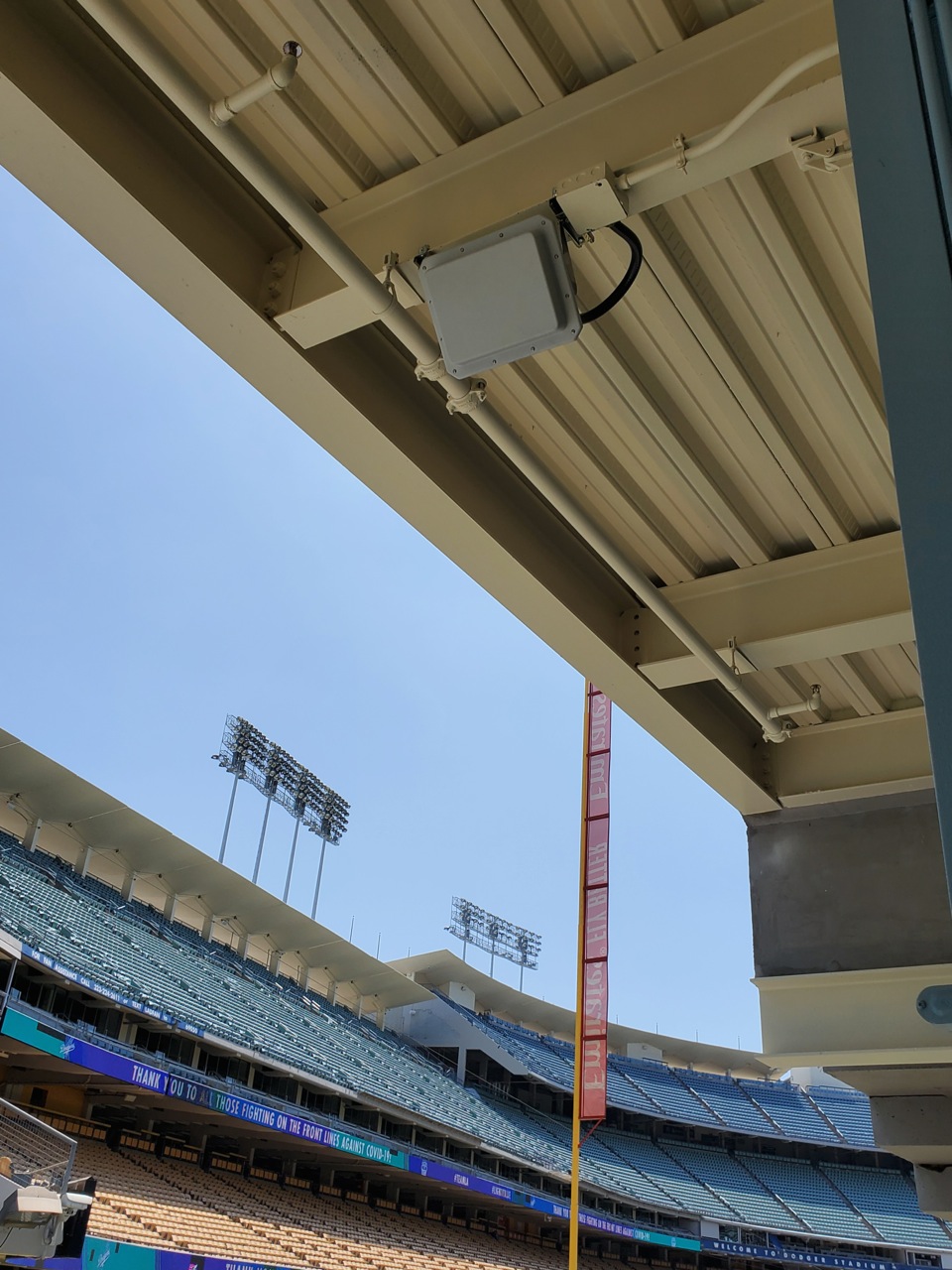

More APs were added in overhangs and roofed areas

It’s unclear if the MLB technology committee brought any financial help to the table along with their wireless expertise for these six upgrades. When MLB put together a consortium to bring wireless connectivity to parks starting back in 2014, it got financial buy-in from wireless carriers, equipment vendors and teams to help spread the costs around. Esquibel wouldn’t specify any dollar amounts for the Dodgers’ Wi-Fi 6 budget or whether the league contributed anything. He did note that the team negotiated an upgrade clause into its previous Wi-Fi networking contract.

Construction for the Dodgers’ new network began last fall, right after the Dodgers lost to the Washington Nationals in the NLDS playoffs. Back then, there were 880 APs that comprised the Wi-Fi 4 network; the upgrade to Wi-Fi 6 bumped that total closer to 1,100 APs, Esquibel said. The Dodgers installed 9100 series APs from Cisco in most of the same locations, reusing the cabling and conduits in the process. The Dodgers also replaced network switches (Cisco again, and its 9300 switching line) to handle greater throughput and the increased processing capacity, Esquibel added.

On the cellular side, Esquibel said carriers are adding 5G gear to the stadium, with AT&T having the most extensive deployment right now. Customers of AT&T and Verizon will also be able to be switched over to the Wi-Fi network when entering the park.

The upgrades to its wireless infrastructure also set the stage for some new capabilities coming down the pike. The combo of Wi-Fi 6 and 5G services will help the Dodgers deliver 4k and 8k video formats; it will also help as professional sports move toward “probability gaming,” i.e., online sports betting. Esquibel credits partners Cisco, AmpThink, Horizon Communications and MLB with building a powerful solution to enable these emerging services and capabilities.

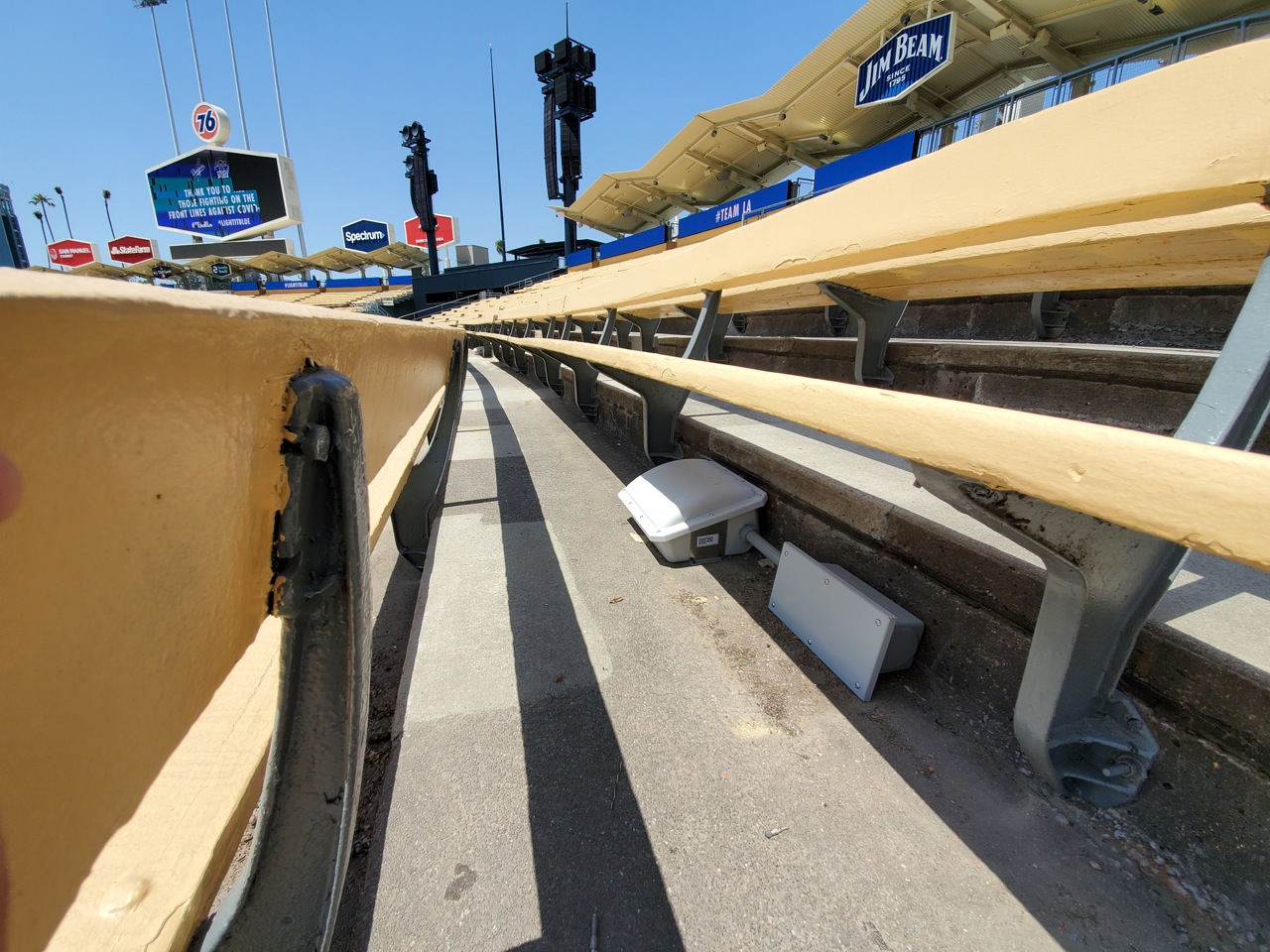

Bench seating also got under-seat APs

There were other elements to the Dodgers’ 2020 tech stack refresh as well. Inside the stadium, they reworked the outfield to create a centerfield plaza with left- and right-field pavilions, with cut-outs and walkways above the pavilions plus more APs than last year to accommodate more seated and standing spectators. Esquibel said the team has also replaced its point-of-sale system, and has added Appetize, a cloud-based POS concessions app, as well as ParkHub to keep closer tabs on the Dodgers’ parking lots.

While the Wi-Fi 6 construction is complete, advance testing and fine-tuning are on indefinite hold. As of early June, Esquibel and his Dodger colleagues were sheltering in place and had been since mid-March.

“The pandemic has slowed down testing,” he said, nothing that the stadium needs capacity crowds to gauge how well the new networks are engineered and where antennas need adjusting. And it’s clear that contemplating the first post-pandemic home game brings out Esquibel’s fan boy, broadband wireless notwithstanding.

“I want to smell the grass and be with the crowd,” Esquibel said. “Like everyone else, I just want to see some baseball.”

Oklahoma leads the way with Wi-Fi 6 network at football stadium

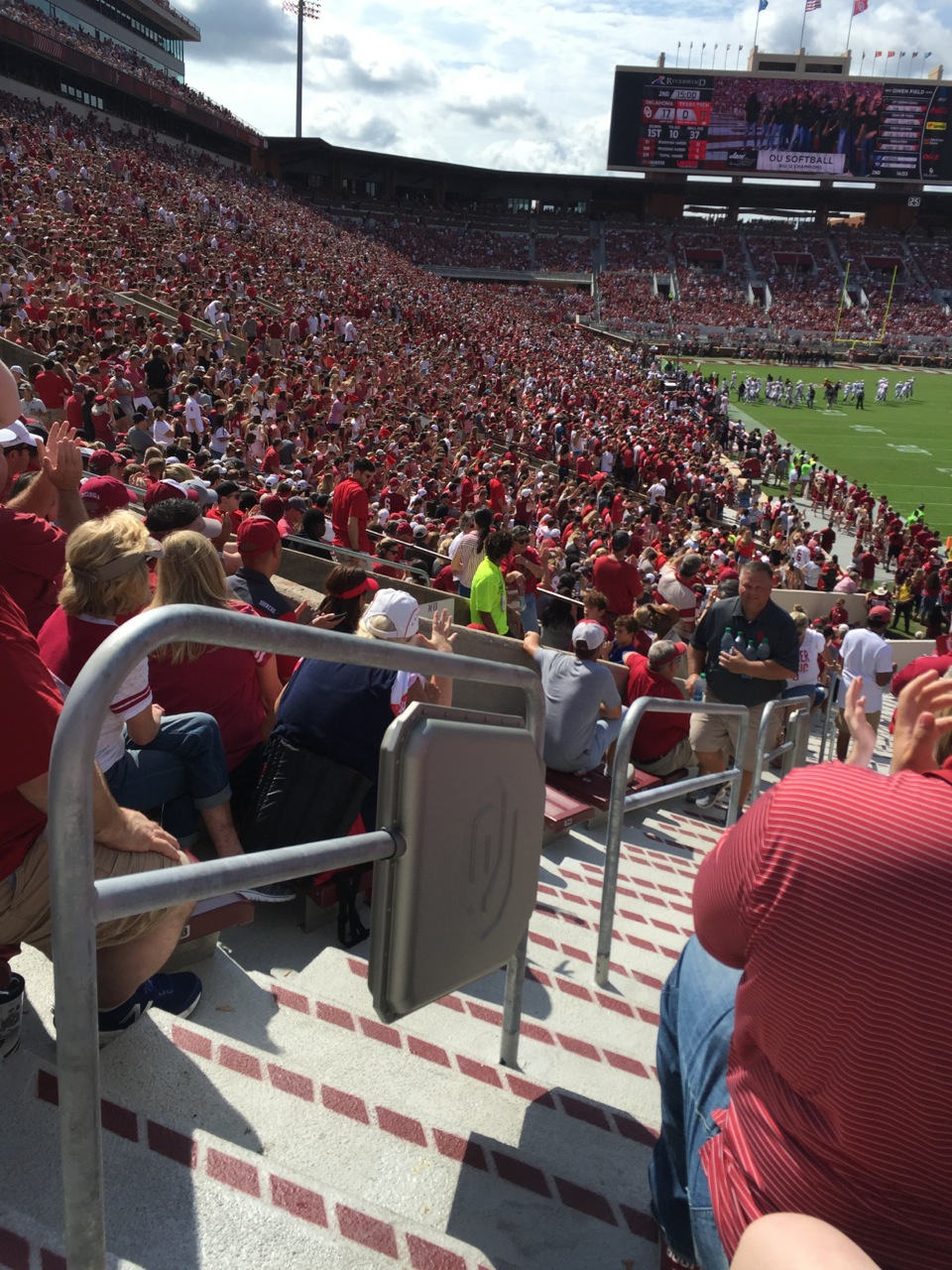

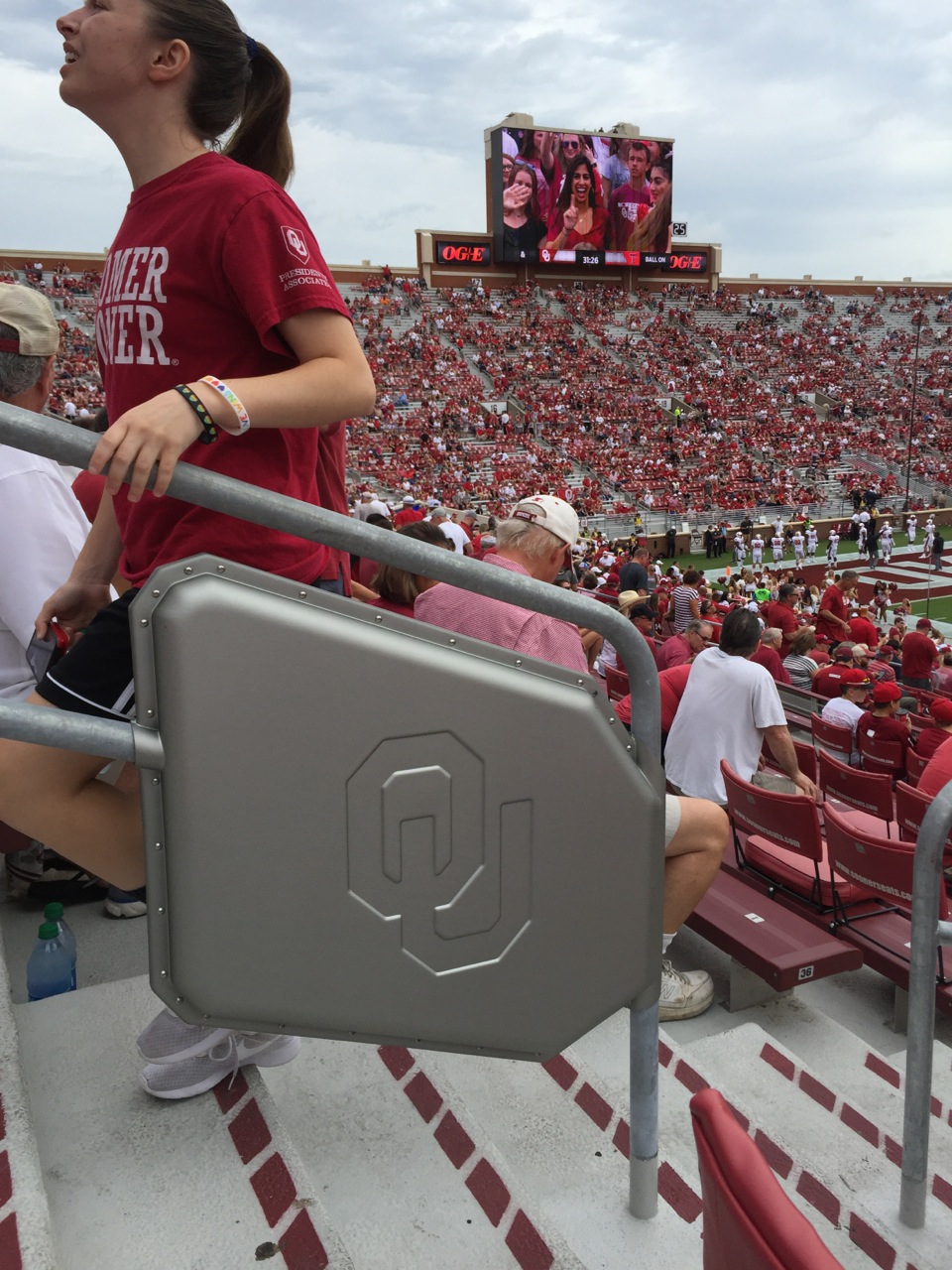

An AmpThink handrail enclosure for Wi-Fi APs at Oklahoma. Credit all photos: Paul Kapustka, MSR (click on any picture for a larger image)

In the long history of college football, the Univeristy of Oklahoma is a name that is always somehow in the discussion when it comes to top teams and Heisman-quality talent. And now you can add stadium Wi-Fi to the list of things Oklahoma does well, after a deployment of a 100 percent Wi-Fi 6 network at Gaylord Family-Oklahoma Memorial Stadium was in place for most of the recent football season.

Formerly among the most conspicuous Wi-Fi have-nots among big-school stadiums, the Sooners have now moved to the front of the class with a network of approximately 1,350 access points in their 80,126-seat stadium, all new models that support the emerging Wi-Fi 6 standard, also known as 802.11ax. With a deployment led by AT&T, using gear from Aruba, a Hewlett Packard Enterprise company, and a design and deployment from AmpThink, using mainly handrail-mounted enclosures in the main bowl seating areas, OU fans now have the ability to connect wirelessly at the most advanced levels, with a technology base that will support even better performance as the balance of attendee handsets starts to catch up to the network with
support for Wi-Fi 6.

“We’re very excited” about the new network, said David Payne, senior technology strategist for athletics at the University of Oklahoma’s information technology department. Payne, who has been at Oklahoma since 2003, has spent the last several years shepherding the overall stadium Wi-Fi plan into place, starting first with Wi-Fi coverage for the stadium RV parking lots, then adding initial forays into stadium Wi-Fi deployment when Oklahoma renovated the south part of the stadium three years ago. But this past offseason was the big push to full stadium coverage, a trek that included a switch in equipment vendors that was prompted by Oklahoma’s solid commitment to the emerging Wi-Fi 6 standard.

Committed to Wi-Fi 6 for the future

Editor’s note: This profile is from our latest STADIUM TECH REPORT, which is available to read instantly online or as a free PDF download! Inside the issue are profiles of the new Wi-Fi and DAS networks at Chase Center, as well as profiles of wireless deployments at Fiserv Forum and the University of Florida! Start reading the issue now online or download a free copy!

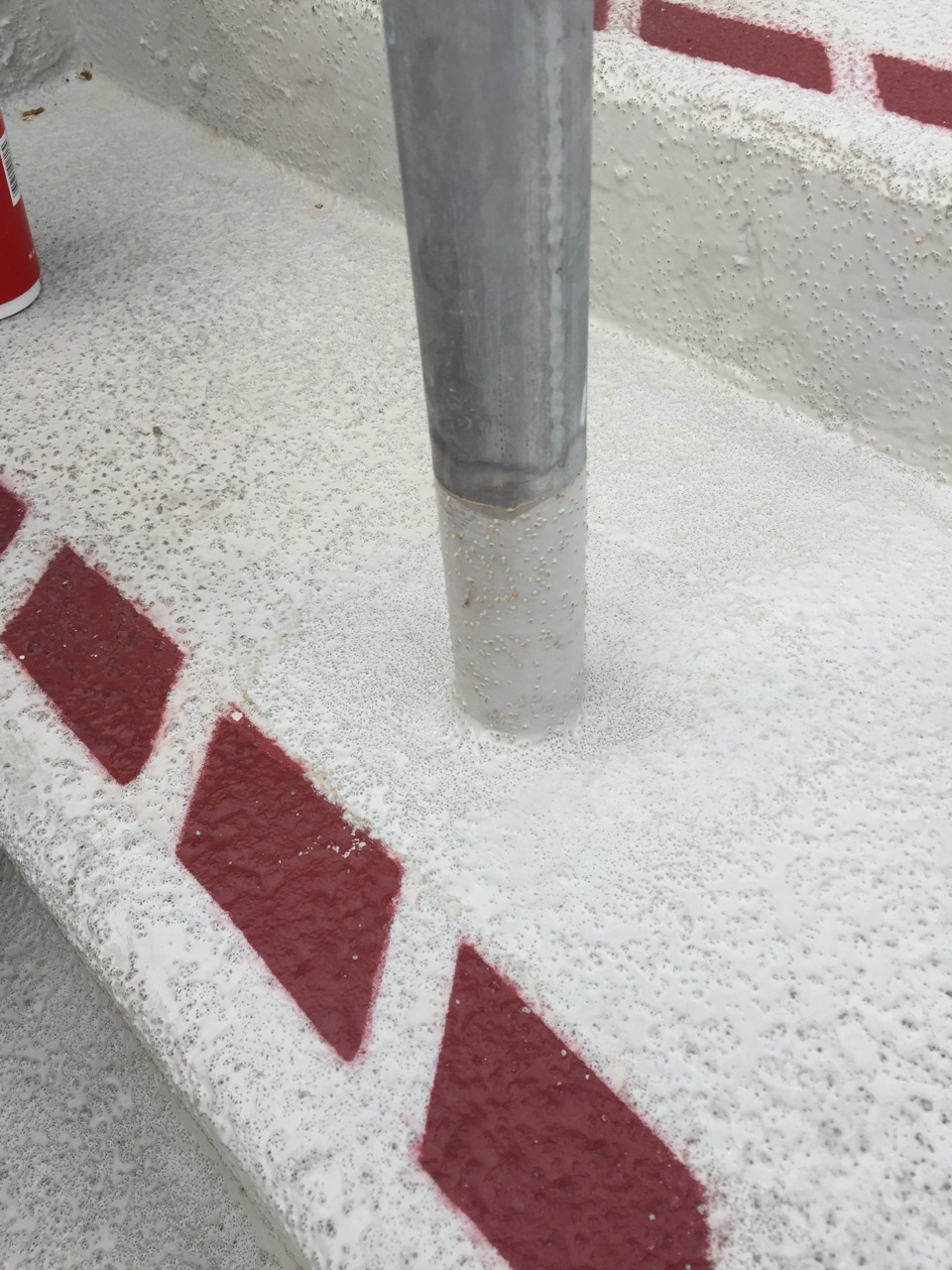

A water-sealed connection for the bottom of a handrail enclosure.

If there was a tricky time to pull the trigger on Wi-Fi 6, it was last summer, when not every vendor in the market could ensure it would have enough gear on hand to fully supply a big stadium like Oklahoma’s. And even though Wi-Fi 6 gear is new and generally more expensive than previous versions, for Payne and Oklahoma the long-term benefits combined with the periodic ability to refresh something as significant as a football stadium network made committing to Wi-Fi 6 somewhat of a no-brainer.

Payne, like many other big-school IT leaders, has spent years helping administrators and others at budget- deciding levels of leadership at his school try to understand the benefits of stadium-wide Wi-Fi connectivity. For many of those years, it just didn’t make sense to try to push through the multi-million-dollar expense of a project “that would only be used six or seven Saturdays a year,” Payne said. “There’s always a difficulty in telling the story of what value you receive in this since it’s different from traditional revenue streams,” Payne said. “There isn’t a direct dollar seen from Wi-Fi users.”

But with the late-2018 approval of a capital expenditure project to revamp the football stadium’s lower-bowl seating with new handrails, wider seats and other ADA-related improvements, Payne and the IT team were able to weave in the extra $3 million (out of a total project cost of $14.9 million) it would cost to bring full Wi-Fi coverage to the entire stadium.

“It’s just taking advantage of the timing to get economies of scale,” said Payne. Because of the already- planned work on the handrails, Oklahoma was able to add the AmpThink-designed handrail Wi-Fi enclosures (which use the handrail pipes to carry cabling) for a fraction of the cost of having to do that work as a separate project, Payne said. The university had also installed new backbone gear and cabling during the south end zone renovation, so that cost was already paid for.

The decision to commit to Wi-Fi 6, Payne said, was based on standard release projections from manufacturers. “We paid close attention to projected order availability and ship dates,” Payne said. “We were felt that if we were able to receive the gear by June, we could complete the project on time.”

Though some manufacturers were not sure of being able to fully deliver Wi-Fi 6 gear, Aruba, Payne said, had “high confidence” in meeting the deadlines, and won the deal. According to Payne, all the Aruba gear was shipped in time to begin construction in June.

A handrail enclosure in the lower bowl

“It’s important for us to get the full life cycle of technology, so that’s why we decided to go 100 percent Wi-Fi 6,” Payne said.

Attention to detail an AmpThink hallmark

On a visit before and during a home game against Texas Tech in late September 2019, Mobile Sports Report was able to test the live network in all parts of the stadium, with strong performance at even the highest seating levels as well as in sometimes overlooked spots like the long ramps that fans walk up to get in and out of the venue.

The Oklahoma deployment was part of a very busy summer for AmpThink, with similar Wi-Fi design and deployments at Oklahoma, Ohio State and Arkansas. Like those two others, Oklahoma’s main bowl AP deployment was in the patented AmpThink handrail enclosures, each stamped with the distinctive “OU” logo.

The handrail deployment system, which typically includes a core drill through the concrete floor to bring wiring into the handrail tubing, is now a standard process for AmpThink, following similar deployments at the Minnesota Vikings’ U.S. Bank Stadium and at Notre Dame Stadium, among others. At Oklahoma, AmpThink said it used 10 different handrail enclosure designs to fit all the necessary spaces.

AmpThink president Bill Anderson was present during our visit and took great pride in showing off some of the finer points of an AmpThink deployment, including a method of using a metal sleeve and some clever waterproof paint and sealant to ensure that no moisture finds its way into the holes used for cable delivery.

“We spend a tremendous amount of time [during deployments] making sure there isn’t any water leakage under the stands,” Anderson said. “Because you never know what is going to be below. This is a big part of what we do. We don’t just sell an enclosure.”

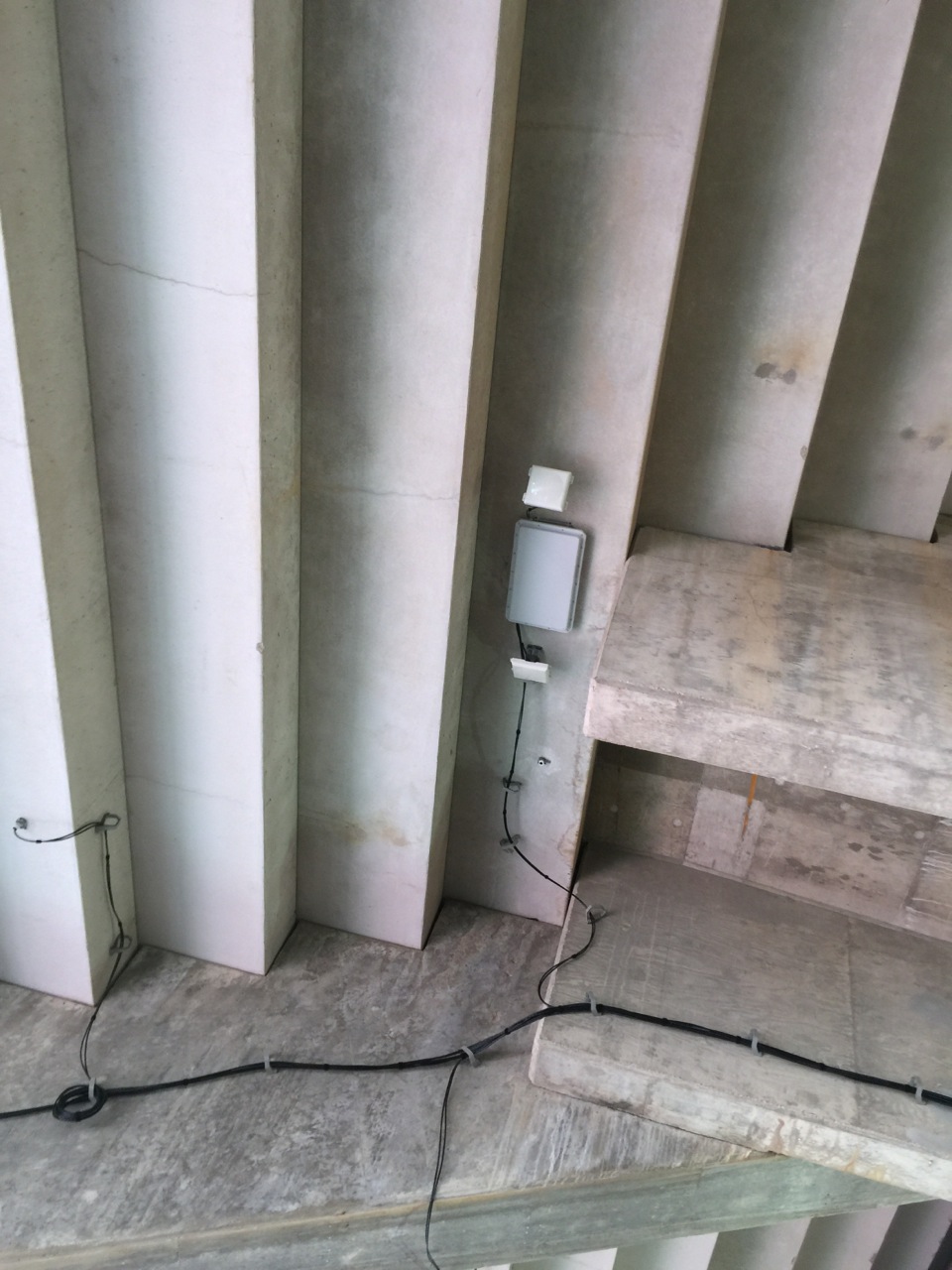

Concourse APs visible high on concrete posts

The same can be said of AmpThink’s overall network designs, which it monitors and tests and tweaks as fans use the system. On the game day we visited, no fewer than four AmpThink employees were at the stadium in the network control room, checking AP performance and network usage.

“We’re pretty proud of what we can do,” Anderson said about the company’s track record for network design in large venues. “We have proven formulas which we reliably implement.”

Solid speed tests throughout the venue

At 10:20 a.m. local time, just ahead of the early 11 a.m. kickoff, Mobile Sports Report started our testing inside the main-level concourse, where fans were already lining up to purchase cold beer, another first at the stadium this past season. In the midst of the entering crowds we got a speedtest of 55.9 Mbps on the download side and 43.7 Mbps on the upload side, an inkling of the strong tests we were to see everywhere we walked. In the concourses and near concession stands, a mix of overhead and wall-mounted APs provided coverage.

Up in the stands, we took our first test among the railing-mounted enclosures in section 6, row 51, just about at the 50-yard line. We got a mark of 68.2 Mbps / 58.7 Mbps before the stands were completely full. We then hiked up to row 67, which was underneath the press box overhang and served by overhead APs, not railing enclosures. There we got a speedtest of 27.8 Mbps / 49.5 Mbps, a half hour before kickoff.

One more speedtest in the lower bowl (around the 30-yard line, in row 19) netted a mark of 68.9 Mbps / 61.2 Mbps; then as we walked around to the south end zone, we got a mark of 38.7 Mbps / 64.3 Mbps in the south concourse, busy with fans getting food and drink ahead of the imminent kickoff.

The recently renovated south end of the stadium has a series of loge boxes and other premium seating options, and has an overhang which provides additional real estate for Wi-Fi AP mounting options. Ducking into a loge box (covered by overhead APs) for a quick test we got a mark of 36.8 Mbps / 54.2 Mbps just before kickoff. Moving around to the corner of the south stands for the pregame ceremonies we got a mark of 33.7 Mbps / 63.8 Mbps even as all the phones were out to capture the team run-on and school song rendition. After kickoff, we went into the crowded main east concourse and got a mark of 43.2 Mbps / 46.6 Mbps amidst all the late-arrivers.

Good coverage in the stairwells

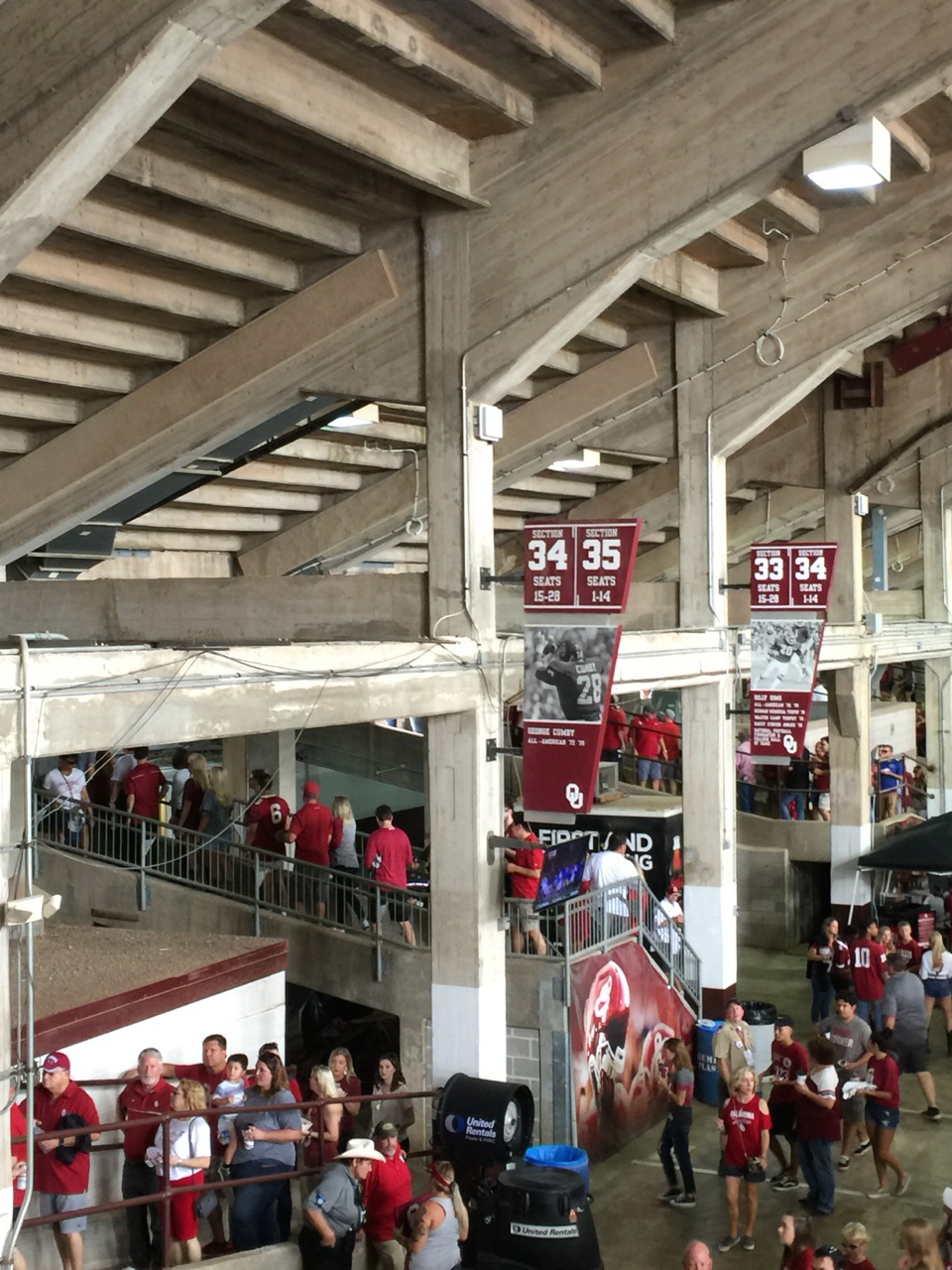

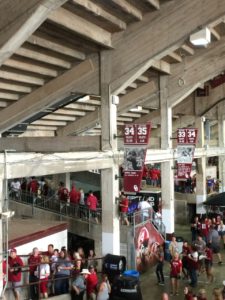

Wi-Fi antennas in an overhang deployment

If there is one area where stadiums sometimes skimp on wireless coverage it’s in the stairwells and pedestrian ramps, which may not seem like an important place to have connectivity. But at Oklahoma, the multiple switchbacks it takes to climb from ground level to the top seating areas are all well covered with Wi-Fi, as we got a mark of 39.9 Mbps / 29.5 Mbps during a brief rest stop on our hike to the top of the east stands.

At a concession stand on the top-level concourse we got a mark of 61.3 Mbps / 70.5 Mbps, as we admired the neatness of the core drilling we could see that got the cabling to the underside of the seating areas above. In the stands we got a mark of 57.5 Mbps / 69.5 Mbps at one of the highest rows in the stadium, row 24 of section 226, a half hour after the game’s start.

According to Payne our visit coincided with the first live game with the Wi-Fi 6 software fully turned on, part of a sort of rolling start to the network deployment which wasn’t fully live at the first game on Aug. 31.

“It wasn’t without some hiccups and headaches,” said Payne of the overall deployment, which included a small number of temporary black-colored handrail enclosures from AmpThink, which saw its single source of handrail molding material run out of supply late in the summer. According to Payne Oklahoma started the season with 966 radios working on the network, ramping up with more at each home game until reaching full capacity later in the season. AmpThink had also replaced the black enclosures by the time of our visit with the standard silver ones.

Oklahoma also experienced what other venues deploying Wi-Fi 6 may find – that some of the very oldest devices still in use may have issues in connecting to the Wi-Fi 6 equipment. Payne said one such
problem surfaced in the press box (where reporters were using older laptops) but it was solved by creating some virtual APs which were tuned to an older version of the Wi-Fi standard.

Oklahoma fans during pregame ceremonies

OU also didn’t widely promote the network early in the season, but by the Oct. 19 home game with West Virginia not only was the school promoting the network on the stadium’s big video boards, the IT team also added the ability for students to automatically join the stadium network via their regular WiFi@OU SSID used around campus.

With 82,620 in attendance for the West Virginia game the total number of Wi-Fi users took a big jump from the previous high, with 25,079 unique connections, according to numbers provided by Payne. When Iowa State came to Norman on Nov. 9, the network saw its highest usage with 32,673 unique users, who used approximately 4.2 terabytes of data while in the stadium.

What was also interesting to Payne was the number of devices connected using the Wi-Fi 6 standard, which currently is only supported by a small number of phones. Payne noted that the first week OU had the Wi-Fi 6 working in the stadium was the same week Apple started delivery of its new iPhone 11 line, which includes support for the new Wi-Fi 6 standard. After seeing 941 devices connect on Wi-Fi 6 at the Texas Tech game, Payne said Oklahoma saw a steady increase of Wi-Fi 6 devices at each following home game, with 1,471 at the West Virginia game and 2,170 at the Iowa State game.

Is AX coming ‘sooner’… rather than later?

Though most consumer handsets being used today do not support the Wi-Fi 6 standards, Apple’s decision to include Wi-Fi 6 support in its latest iPhone 11 line as well as Wi-Fi 6 support from other new Android phone models suggests that device support for the standard may be coming sooner, rather than later, to the fans in the stands. When that happens and the Wi-Fi 6 network starts utilizing its new capabilities, Oklahoma’s network will be among the first to make use of the new standard’s ability to support more clients at higher connection speeds, critical features for big networks in small places like football stadiums.

The non-insignificant number of AX devices already seen by the stadium network, Payne said, felt like good justification of the school’s decision to commit to Wi-Fi 6. What was also interesting to Payne was some later analysis of the network which showed Wi-Fi 6 clients using nearly 10 times the data per client as older Wi-Fi 5 devices.

Looking ahead to next season, Payne said he will be working with school network officials to see how to more closely tie the stadium network with the overall campus wireless infrastructure, and to see how the school might be able to incorporate a stadium app or web-based sites to increase the ability of the network to improve the fan experience. Currently Oklahoma uses a portal from AmpThink to get email addresses from network guests, which Payne said will be used by marketing and ticketing departments to try to increase engagement.

The good news is, Payne said, is that “we are no longer looking at what it costs to put a network in place” to drive any new digital experience ideas.

For Oklahoma athletics director Joe Castiglione, it was important for the school to deliver an amenity that provided a a consistent fan experience whether a fan was in a suite or in the upper deck, a goal our tests seem to have validated.

“We feel that the Oklahoma tradition is among the strongest in the nation and really want to provide a top-notch fan experience to celebrate that tradition,” Castiglione said. “Wi-Fi is just the beginning of enhancing that experience. We hope to be able to use it to engage our fans through in venue activations and experiences that would not be available without the addition of Wi-Fi.”

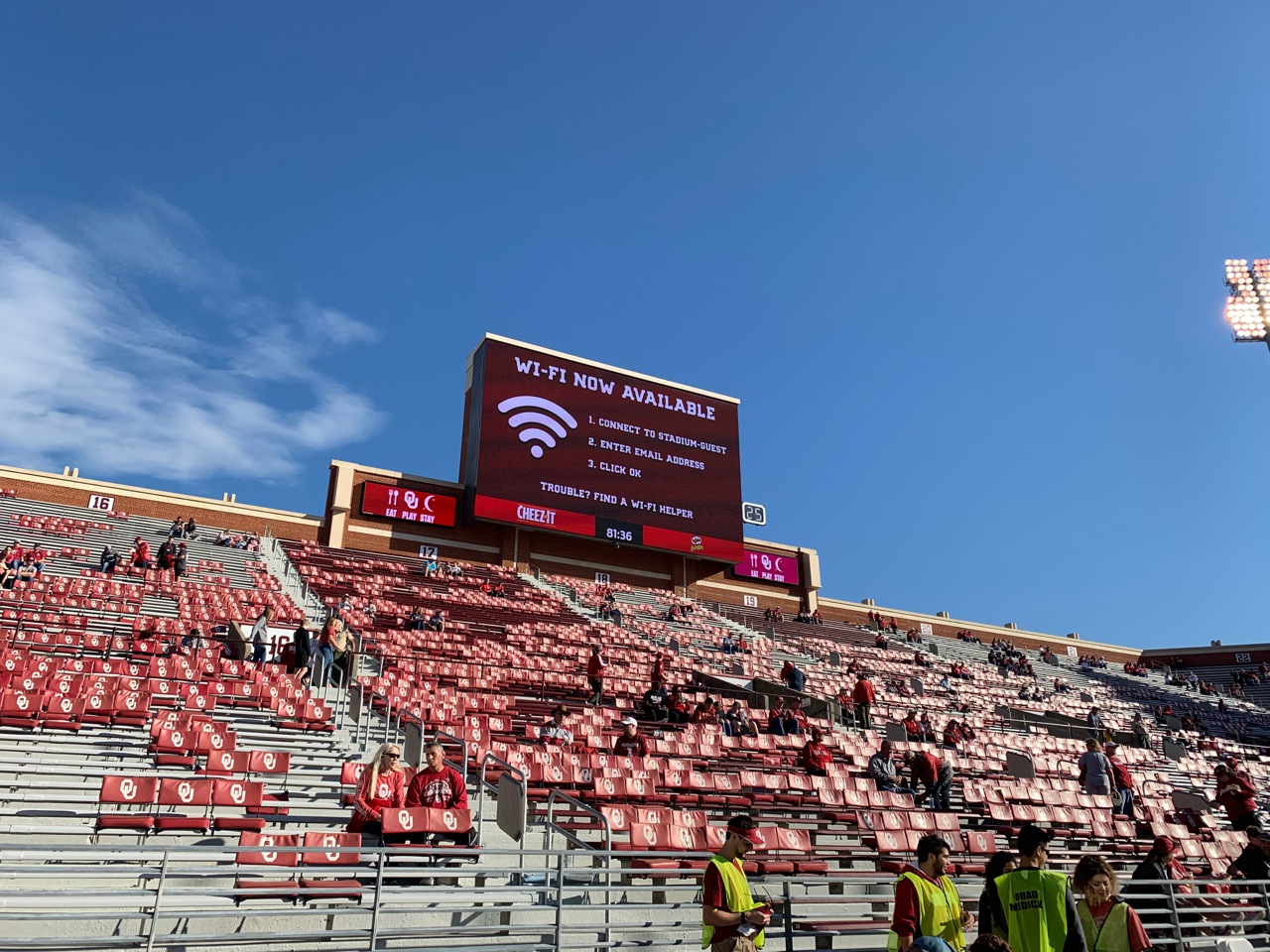

The scoreboard touts the new Wi-Fi network (credit this photo: University of Oklahoma)

A panaoramic view of the stadium

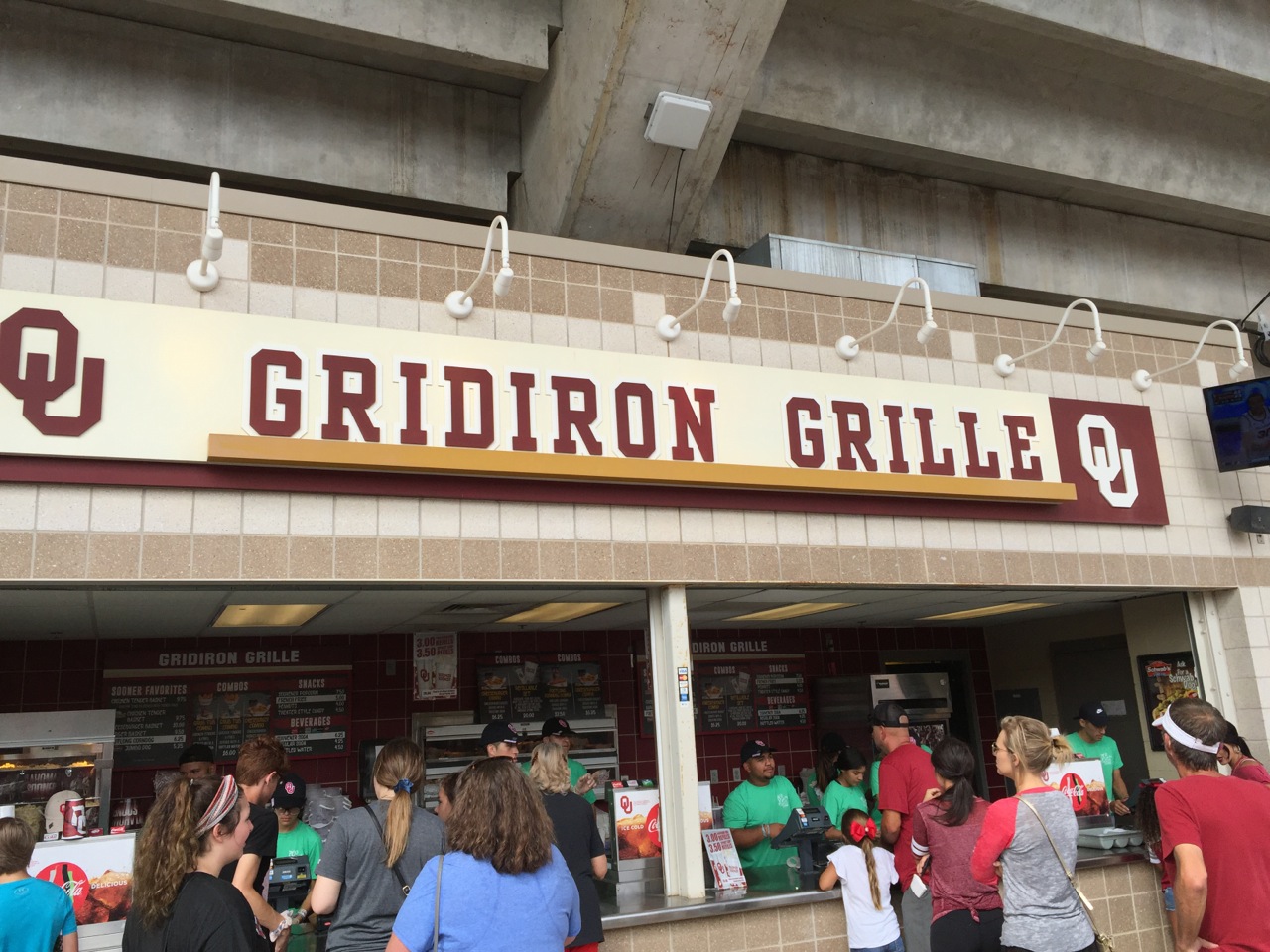

Wi-Fi enclosure above a concessions stand

Fiserv Forum’s wireless networks ready for the Democratic Convention

Milwaukee’s Fiserv Forum, home of the NBA’s Milwaukee Bucks and also the locale for this summer’s Democratic Convention. Credit all photos: Paul Kapustka, MSR (click on any picture for a larger image)

With one of the most demanding arena-sized events headed its way this upcoming summer, the wireless networks at Milwaukee’s Fiserv Forum appear to be more than ready to handle any audience demand for mobile connectivity.

With a full-featured distributed antenna system (DAS) deployed and operated by ExteNet Systems using gear from JMA Wireless, as well as a Wi-Fi network using Cisco gear, Fiserv Forum shows both the expertise of wireless providers who have a long history of knowing what works, as well as the foresight to add new techniques and technologies to combine high performance with the quality aesthetics that are the hallmark of the new home of the NBA’s Milwaukee Bucks.

And while a Mobile Sports Report visit this past fall for a Bucks game found all the wireless elements in top working order, the big event for the venue’s second year of operation will be the Democratic National Convention in July 2020. While the four-day nomination gathering is a test for any locale, Fiserv Forum’s forethought on how to prepare for numerous types of events in and around its uniquely designed structure has it well prepared to handle whatever wireless needs the convention will require.

It all starts with the DAS

Editor’s note: This profile is from our latest STADIUM TECH REPORT, which is available to read instantly online or as a free PDF download! Inside the issue are profiles of the new Wi-Fi deployment at the University of Oklahoma, as well as profiles of wireless deployments at Chase Center and the University of Florida! Start reading the issue now online or download a free copy!

Even in these days of predictions of the death of DAS, Fiserv Forum is proof that for high-profile venues, carriers will still participate in a quality deployment. And while many venues have just two or three cellular providers on their DAS, according to ExteNet, the Fiserv Forum DAS has five major carriers participating — AT&T, Verizon, T-Mobile, Sprint and U.S. Cellular.

Wi-Fi AP on an outdoor plaza light pole

Unlike some new arenas, where wireless is an afterthought to construction, ExteNet was involved early on, according to Manish Matta, vice president of marketing at Extenet.

“Getting in sooner rather than later is always better,” said Matta, who said ExteNet was well involved in the overall construction plans, ensuring that there were no delays associated with wireless deployments holding up construction of other parts of the building.

During a pregame tour in October with a team from ExteNet as well as with Robert Cordova, chief technology and strategy officer for the Bucks, Mobile Sports Report got an up-close look at some of the inside parts of the DAS network design, including the headend room and multiple antenna installations that were hard to find given their well-designed placements and camouflaging.

In addition to regular enclosures that were painted or otherwise placed in areas out of the main sight lines, ExteNet and JMA also utilized some of the newer circular flat-panel antenna enclosures that fit flush to ceilings, minimizing the exposure.

The 215 DAS antennas are powered by 40 remote units. According to JMA, the remotes are connected to the backbone with optical fiber, and use digital power to bring power to elements up to a mile away. With 16 sectors in the bowl design, the DAS is able to segment coverage to all parts of the arena, including the bowl as well as concourses and other in-house areas.

DAS antenna in a concourse location

ExteNet, which owns and operates the DAS as a neutral host, also installed 10 extra MatSing ball antennas in the rafters for additional top-down coverage. Though only AT&T is using the MatSings right now, ExteNet said they are integrated into the DAS design if other carriers should wish to utilize them in the future.

During a short walk-around before the Bucks game started, MSR got a DAS speedtest of 85.8 Mbps on the download and 14.9 Mbps on the upload, even though our older iPhone (on the Verizon network) doesn’t support all the latest DAS capabilities. Near the start of the game, as the pregame introductions were at their peak, we got a DAS mark of 18.0 Mbps / 15.7 Mbps in the middle of an upper-deck seating area (Section 227) and then a little bit after the game started, we got a mark of 21.3 Mbps / 12.5 Mbps near a bar area on the upper-level concourse.

Wi-Fi inside and out

On the Wi-Fi side of things, a visitor to Fiserv Forum can connect to the network even before coming in the doors, as part of the 623-AP Cisco installation includes Wi-Fi APs mounted on light poles in the “Deer District,” the plaza area on the stadium’s east side that connects to an outdoor beer garden and several bars and restaurants that were all part of the planned environment built in sync with the arena’s opening.

Before we went inside, we got a Wi-Fi speedtest of 40.5 Mbps / 40.2 Mbps in the middle of the Deer District plaza, which was hosting a pop-up haunted house attraction sponsored by Jack Daniels.

Inside the building, we again needed some guidance from the Bucks’ Cordova to locate some of the Wi-Fi APs, which are inside triangular enclosures that are either painted to match wall surfaces, or utilized as high-visibility section number signs, hiding the gear in plain sight.

Wi-Fi AP blended in to the wall covering

In the seating bowl, Fiserv Forum again shows its commitment to aesthetics with the smallest handrail enclosures we’ve ever seen, a discreet hand-sized enclosure that tucks the antenna components neatly into the top part of a railing, with the AP electronics hidden below the seating areas. Designed by integrator Johnson Controls and its ecosystem partners, Abaxent and AccelTex, the 28 special enclosures are also designed to be easy to detatch and re-attach (with something Johnson Controls calls a simple two-click “dart connector”) which facilitates keeping the network working when the lower-bowl seating areas need to be reconfigured for different events.

Sitting in a courtside seat near one of the handrail enclosures about 20 minutes before tipoff, we got a Wi-Fi speedtest mark of 15.8 Mbps / 33.2 Mbps. On the main concourse just after the game’s start we got a Wi-Fi mark of 28.6 Mbps / 60.4 Mbps, and later on at that same upper-concourse bar we got a mark of 39.9 Mbps / 61.1 Mbps.

Later on during the second quarter of the game, we watched another fan in our lower-bowl seating area spend most of the period keeping one eye on Monday Night Football streaming on his phone. “The Wi-Fi is really good here,” he noted.

Looking ahead to CBRS and 5G

As ExteNet and JMA prepare for the onslaught of the convention’s needs, in many areas the Bucks are already looking farther ahead, to future communications improvements including 5G millimeter wave deployments, and a possible introduction of CBRS services. Cordova, who is an advocate of the capabilities of private LTE networks over the CBRS spectrum, said the flexibility of provisioning services in a CBRS environment could be extremely useful for temporary needs, like during last year’s NBA playoffs when the NBA on TNT crew set up a temporary stage out in the plaza.

While the Bucks have already prepared for connectivity of all sorts out on the plaza space – from the top-level outside Panorama deck at Fiserv Forum that lets fans look out over the city, Cordova pointed out several metal boxes in the plaza that have home-run fiber connections for broadcast TV as well as remote power – there’s going to be all sorts of temporary connectivity needs when the convention media tents set up in the empty lot next door where the previous stadium, the Bradley Center, used to stand.

The fact that the Bucks and ExteNet were already well involved with planning for a July event in October the year before is just another sign of a networking operation that is well positioned now and already thinking about what the next necessary steps are.

Robert Cordova, chief technology and strategy officer for the Bucks, in the headend room

MatSing ball antennas point down from the rafters

The Daktronics centerhung video board
