Venue Display Report: An in-depth look at SoFi Stadium’s amazing videoboard

STADIUM TECH REPORT is pleased to welcome you to the latest issue of our VENUE DISPLAY REPORT series, with an in-depth report on perhaps the most innovative main stadium video board ever, the new Samsung dual-sided, 4K oval videoboard at SoFi Stadium in Los Angeles.

These long-form reports are designed to give stadium and large public venue owners and operators, and digital sports business executives a way to dig deep into the topic of digital display technology, via exclusive research and profiles of successful stadium and large public venue display technology deployments, as well as news and analysis of topics important to this growing market.

As venues seek to improve fan engagement and increase sponsor activation, display technology offers powerful new ways to improve the in-stadium fan experience while also increasing the bottom line for stadium business operations. Read on as we examine not just new display technology and successful deployments, but also study how display technologies can support successful marketing and advertising campaigns!

A special thanks is due here to sponsor Samsung, whose support allows us to make this content free to readers. We’d also like to extend a special thanks to the Samsung staff and the folks at SoFi Stadium for all their help in arranging remote interviews and to provide pictures and video so you can get at least a virtual sense of the amazing new technology that awaits visitors to SoFi Stadium. Looking forward to future visits!

MSR Behind the profiles: 2019 Final Four, part 1

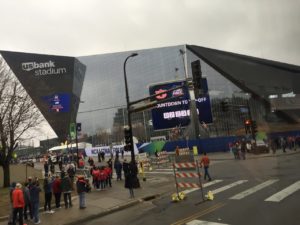

On the press bus to the stadium for the semifinals. Credit all photos: Paul Kapustka, MSR (click on any picture for a larger image)

Over the course of the last year, I’ve had several requests from readers to shed more light on what goes on “behind the scenes” on my various stadium visits. Here’s the first in a planned series I’m calling “Behind the profiles,” giving you some flavor of the fun and interesting things and people I experience on my trips to check out stadium technology deployments. In honor of the basketball tournaments we are all now missing, here is my “trip diary” from my visit last year to Minneapolis to see how U.S. Bank Stadium’s Wi-Fi networks held up under the big-game stress — along with some other interesting side trips! Please let me know if you find these interesting or fun to read and I will write some more… 2019 was a true banner year for MSR visits!

Friday, April 5, 2019: Getting to the Final Four, and a Prince tribute

If there was a recurring personal theme to my Final Four trip last year it was: dealing with my hip. After almost a year of putting up with various hip-related pains in November of 2018 my situation went “off the cliff” as one doctor said, rendering me unable to do much walking or any other activity. A subsequent MRI revealed that I had almost zero cartilage left in my right hip, which meant — after other MRIs confirmed it wasn’t a problem with my back, on which I had surgery 10 years ago — that I needed a hip replacement. The good news? It would turn out to be the most pain-free major surgery I’d ever had or heard of. It was done in an outpatient procedure and I was walking without crutches five days later.

The bad news? The surgery didn’t happen until late May. In early April I was still hobbling around in a sidewinder motion, slapping lidocaine patches on and taking anti-inflammatories to make it through each day. But with the downtime associated with the surgery ahead, I had to get enough stories in my notebook to fill our spring issues — so off to Minneapolis I went.

Not all displays are digital. At MSP airport.

I can’t thank the NCAA folks enough for granting MSR a credential (they had also done so the previous year) for the Final Four. There is nothing like being on site for an actual game to see how the networks and other technologies perform. While sometimes vendors and teams are able to find us some kind of pass to get stadium access, at the biggest events having a standard media credential just makes life easier for all involved. The trick is, convincing the powers that be that MSR’s coverage is beneficial to a sports audience. (Someday, Super Bowl, someday.)

After landing at MSP airport I got an almost instant dose of what is generally called “Minnesota Nice.” I had just started ambling up the concourse toward baggage claim when a nice gent pulled up beside me in one of those golf-cart things and said, “I can spot a bum hip a mile away. Get in!”

One of the numerous airport volunteers, the “Minneapolis ambassador” spared me about 15 minutes of pain-walking, a break I welcomed. “When’s your surgery?” he asked. I told him and he replied, “you’ll kick yourself after it’s over for waiting so long. But you’ll love it.” Correct on all counts. As I got out of the cart to go down to baggage claim, a local cheerleading group was doing their moves in the airport’s main atrium. I did a quick check of the Wi-Fi (good signal) and got my bag.

The other nice thing about a real media credential is having a real room at one of the official media hotels. You do pay for it — and are required to pay for four nights no matter how many nights you are actually there — but it’s worth it. Even though our Marriott (sports writers practically live in Marriotts) was close enough to walk to the stadium (about a half-mile or so), in my condition I needed the saturation of shuttles and free rides that are de rigeur for any big event like the Final Four. After checking in I took one of the shuttles provided by Buick (NCAA sponsor) over to the stadium to get my credential and lucked out as there was no line at all, allowing me to get my badge in just a few minutes’ time.

When the Timberwolves honor local legend Prince, they get purple.

Instead of trying to find where the shuttles picked up I tapped my “insider knowledge” of Minneapolis (which I had visited several times over the past couple years) and took the light rail from right outside U.S. Bank Stadium back toward the hotel — there was a station just about a block away. Walking back I noticed one other great maybe-not-a-coincidence about the location of the media hotel I was in: There was not one, but two local brewpubs on the separate street corners from the hotel entrance. And yes, over the weekend I visited them both. Good local beer and good pub-fare food. And of course, friendly people working there.

As if I wasn’t going to see enough basketball, on Friday night I went to the Target Center to watch the Timberwolves play the Miami Heat. It was a great way to relax into the weekend, and for a change I didn’t even go around and test the Wi-Fi (we had done a profile of the arena’s new technology the year before). And the game was one of the several “Prince tribute” events the Wolves had last year, where they wore purple jerseys and a band played Prince tunes at halftime. Very cool, very Minneapolis.

Saturday, April 6: Semifinals and Sally’s Saloon

With the semifinal games not starting until early evening, there was time to kill — so I hopped on the light rail again and crossed the Mississippi River over to the University of Minnesota area, where I had a late lunch at Sally’s Saloon, one of the several iconic U of Minn watering holes. Since it was rainy and chilly out I went with a good bowl of chicken soup while I watched the end of the inaugural women’s tournament at Augusta National — what a great way to get psyched for the Masters. And what great golf! Would love to come back and tip one at Sally’s pre- or post-football game. It just has that perfect college-bar feel.

Would love to get back here to see a Minnesota hockey game. Sieve!

After the local-scene interlude I went back to the hotel and boarded an early bus to the stadium, more to get the lay of the land than to file any stories. The great thing about my work as opposed to most writers there is that I wasn’t on deadline — my profiles wouldn’t appear until our June issue. After finding my assigned seat — way back in the back row of the press area behind one of the hoops — I went down to the floor to walk around before it got closed off. It’s cool to see the setup up close, the raised playing court, the band areas and wander right up to the NBA on TNT set in one corner, where Ernie, the Jet and Chuck (no Shaq that day) were holding court, live.

The terrible sight lines from my seat were not an issue — after all, my work was not to watch the game but to wander the stadium as the games went on, testing the wireless networks while the fans gave them the ultimate selfie workout. It’s just nice to have a place to rest (especially if your hip hurts), so it’s a nice perk. As it turns out, my seating arrangement was about to get much better (for me) in short time.

I did make it back to the “press working room,” a cordoned-off wide space in the bowels of the building. Think: concrete floors, hanging-drape walls, plastic row tables and folding chairs. Those are the typical conditions for big-time sports writers, photogs, bloggers and others at the big events. With something like 2,000 credentialed media, a standard press box won’t do.

During pregame, pretty much any press pass gets you close to the floor.

While spartan, the press rooms do have everything you really need to get the job done: Nearby access to interviews (a separate stage where they bring players and coaches in), power strips everywhere for laptops and phones, and serious Wi-Fi coverage in the form of temporary antennas on poles throughout the room. There’s also a basic but efficient food and drink service, which I avoided other than getting sodas and coffee. I’d just rather get stadium food instead of steam-tray stuff, to get a sense of the venue’s “flavor” if you will. Plus as I said earlier I’m not on deadline and usually not sitting in a seat so it’s easier to just grab something as I walk around.

I next went to find my networking types and was directed to the football press box, where David Kingsbury, director of IT for the stadium, had set up the NOC HQ in what looked like a coaches’ box. Like any good general David had set up his troops for success with a wide array of healthy and not-so-healthy snacks, which I was allowed to partake in. I did enjoy my fair share of Kind bars over the weekend, and was reminded (after a taste test) just how tooth-twistingly sweet a Twinkie is. (Rejected after one bite.)

While waiting for David and his team to find some time for a quick interview I noticed that the football press box was completely empty — and thought, why not set up here as a base for my stuff and to watch the games when I needed a break? For someone who wanted to spend the day roving around the venue, the football press box was a much better base location than my official press seat (which involved a series of tunnels and stairs to get to). Plus it had comfy office-chair type seating and lots of room to spread out. Sure the court was far away, but all the multiple TVs in the press box were live, giving you as good a view as anyone’s living room couch.

The press working room was well covered by temporary Wi-Fi APs.

Sometime during the night the press folks let the rest of the media know they could sit in the football press box on a first-come, first-serve basis, and while some others eventually joined me the place never got full. While there was none of the food or beverage service usually in place for Vikings games, the added bonus of the football press box was that it has its own restrooms — something not available near the courtside seats. And in the temporary official press room, the facilites were a trucked-in port-a-potty trailer.

Since I had only made it to the final game of last year’s championship I was interested to see what the crowds would be like for the semifinals — would the second game fans skip the opener and arrive after halftime? The answer — not a chance. If you’re at the Final Four, you do the Final Four, and the stadium was packed by tipoff of game 1. And for the first time, the Final Four was allowing alcohol sales, and beer was very popular at the many concession stands and kiosks around the venue. AmpThink, which in addition to having done the regular stadium Wi-Fi had also constructed a temporary Wi-Fi network for the additional courtside seats, put all the switches it used under the stands inside waterproof cases — in part to protect from inevitable beer spills.

Over the course of the first game, I wore myself out completely, overdoing it a bit with stadium laps to see if the network held up everywhere, from the courtside seats to the highest seats up in the rafters. What impressed me was how many people were really into the games, even from far-away seats. I tried to find the perfect picture from behind, of a fan using a phone to record the action, but truthfully my opportunities were few and far between, as most people really paid attention to the action on the court. One thing that surprised me was how fast the Final Four gear sold out: There was one hat I thought was really neat, and thought “well, I’ll get one Monday.” Rookie move. By the second game Saturday, there were almost no hats at all of any kind available, with the design I wanted long gone. Next time, I’ll buy any swag on Friday at the media hotel, where there was a pop-up stand for one day only.

In between games I retreated to my football press box seat, and found some time to interview David Kingsbury and his staff about not just the Wi-Fi and DAS but the displays as well, including the temporary centerhung board which was pretty amazing for a once-only apparatus. In addition to multiple screens it also had the capability to project images onto the court itself, an extra kind of screen that really brought pregame ceremonies to life.

With the games finally over and Monday’s championship between Virginia and Texas Tech set, I walked out with the AmpThink team, skipping the masses that formed a huge line at the light rail station outside the stadium. However, we didn’t do much better trying to hail an Uber or Lyft, having to walk nine blocks away from the stadium before we could get clear enough from crowds to get an SUV driver to pick up all seven of us. A late-night dinner at an excellent brewpub capped a great night of hoops and networking. More later this weekend on the rest of the weekend, including trips to a soccer stadium and the Mall of America!

Here’s the link to part 2 of the story.

More photos below!

Up close and personal with the NBA on TNT crew

The good, bad and the ugly at the NOC HQ snack table


Some of the $5 million in curtains U.S. Bank Stadium had to set up to keep the light out


Kept trying to find the perfect ‘fan with a camera’ shot. Bonus geek points if you can spot the MatSing ball antennas


Republic, one of the two brewpubs on either side of the media hotel


My football press box perch

The crush at the light rail station after the semifinals

Warriors go ‘biggest’ with Chase Center digital displays

The exterior of Chase Center, with its humongous video board. Credit: Brian Nitenson, MSR (click on any picture for a larger image)

With a once-in-a-lifetime chance to build the best basketball arena around, the Golden State Warriors went all in on digital displays at Chase Center, installing the NBA’s largest video board while putting in more pixels overall than any other arena in the league.

The the star of the show is the centerhung video board, a mammoth 9,699-square-foot display from Samsung’s Prismview with 15 separate boards, including ones underneath so the courtside fans don’t have to crane their necks too far upward. While the so-called “chandelier” dominates the view inside the Warriors’ new home, one hint that the Warriors are getting display restraint right is the fact that the board can be completely hidden if so desired, sucked up into a hiding hole in the ceiling. The hide-the-scoreboard trick seems to be proof that the Warriors care enough about the venue experience if it means they have to stow away their favorite toy every now and then.

In a mid-October 2019 visit to Chase Center, Mobile Sports Report can tell you that there is no missing the video displays inside the new $1.4 billion arena, which opened in September 2019 in San Francisco, just south of the San Francisco Giants’ Oracle Park alongside the San Francisco Bay. With 64 different video boards in total, which according to Samsung includes 53.6 million individual pixels – as well as another 1,100 Samsung LCD TV screens – Chase Center is as digitally visual as can be, with (according to the Warriors) 40 percent more display screen area than any other comparable-size venue.

The most pixels inside

Editor’s note: This profile is from our recent Venue Display Report, which you can view in its entirety online, with embedded videos and much better photography! You can also read about Chase Center’s wireless networking in our recent Stadium Tech Report, also available for instant online reading! When it comes to technology at Chase Center, there is no better in-depth resource than Mobile Sports Report!

The impressive Chase Center centerhung video board from Samsung’s Prismview. Credit all following photos: Paul Kapustka, MSR

The display deployment actually starts outside Chase Center, where at the western entry there sits a 74-foot by 42-foot screen that welcomes fans to the arena. The outdoor video board, according to the Warriors the only live video screen in the city, faces an interesting bit of architecture, a stand of steps that will serve as a de facto outdoor gathering space, a feature many stadiums are incorporating lately. Just inside that entryway sits another visual treat, a wide high-definition (1.5mm pitch) video board that provides instant connection to whatever event is taking place, whether it be a Warriors game or a concert.

Inside the main bowl, the centerhung video board dominates all views, with its incredibly crisp (6.7mm pixel pitch) main screens. While all the numbers can be staggering, according to Warriors president and COO Rick Welts, the team didn’t install the biggest and brightest displays simply to win some kind of imaginary tech title.

Instead, he claims, it’s all about creating the best possible fan experience for a following that represents a unique confluence of events, namely the economic success of Silicon Valley and the recent run of NBA championships by the Warriors.

Keeping the focus on the game, or the event

“There’s no doubt we are in an arms race (in regards to stadium technology) but we didn’t want to let that drive us,” said Welts, who was our guide for a media tour of Chase Center in October. But it’s also worthwhile to note that there are probably less than a handful of other professional or college teams who could currently match the Warriors’ unique combination of a rabid fan base with immense amounts of disposable income.

In a day and age when most new venues are built with at least some kind of public tax money, the Warriors’ new $1.4 billion home was entirely privately financed, helped along by things like the new courtside premium suites, which come with their own wine locker and wine butler, and cost around $2 million per year, according to Welts.

Upper-deck seating has an extra LED board to provide more stats

“It’s just what you can do when you combine the hottest economic model in the world [in Silicon Valley] with an amazing team,” said Welts, who noted that the courtside suites all sold out. “I would not recommend this format for most teams.”

But even with more blinking lights than any other facility, the Warriors seem very conscious about not making the venue seem like the Las Vegas strip, or New York’s Times Square. Instead, the team wants to make sure that all its digital-board messaging contributes to the moment, whether that moment is a Warriors’ game or a concert or some other type of show.

“The trick is to strike a balance, between commercial content and Warriors content,” said Mike Kitts, the Warriors’ senior vice president for partnerships. According to Kitts, the Warriors are working with sponsor partners to create digital messages that are at least what he calls “Warrior-esque” – such as combining some kind of basketball theme to advertising messages.

“You want something that feels authentic to the moment,” Kitts said.

Feeding the content beast with things fans want

When the San Francisco Giants installed a new huge video board at Oracle Park this past season, the Giants’ team had an interesting problem in deciding what kind of information to include on all the new space.

Similarly, the Warriors’ expansive digital canvas gives the team the ability to indulge the geekiest of hoops junkies with incredibly specific information – while also trying not to overwhelm the average fan.

“What we want to do is provide all the things that fans say, ‘I want.’ “ Kitts said. At a preseason game against the Los Angeles Lakers the Chase Center screens not only provided the regular kind of statistical information (shots made and missed) for players on the court, they also had some changing screens that could do tricks like show exactly where on the court a player just made a shot from – and what that player’s “heat check” stats were for all shots taken so far that game.

Can you see me? The centerhung video board can disappear into the rafters as needed

“We are continually programming [the displays],” said Paul Hawkins, the executive producer of the Warriors’ in-house content team, called Warriors Studio. “It’s a huge challenge for us as content creators to make this come to life.”

To that end, the Warriors have assembled what is probably also the largest team of content creators and programmers. With 23 full-time employees and another 15 part-time contributors (“and that doesn’t count the freelancers”), the Warriors think they may have the NBA’s biggest in-house content creation team, though they say the Miami Heat may have just as many.

If that seems like an excessive number, remember the stats from the start of the story – with 64 different LED boards, the math to make a single sponsor’s message fit all the different screen dimensions for an arena-wide “moment of exclusivity” is a much different challenge at Chase Center than at other arenas.

And even while back in October the content team admitted it was still “not perfect yet” at dialing in its on-screen workflows, from attending both a Phil Collins concert and the Warriors game on back-to-back nights, MSR can attest that the ability to change looks and feels based on what’s on (or not on) the digital displays can significantly improve the attendee experience – including not seeing the huge centerhung display at all when we sat and listened to Phil Collins and his band playing all the hits from the musician’s vast historical library.

From our limited exposure, we still think the Golden State Warriors did what they wanted to at Chase Center when it comes to digital displays: They used the biggest and best technology, but did it in a way where the technology isn’t the star – but the experience it allows is.

Displays in the luxury suites can be programmed to a point-of-view camera from the owners’ seats


All the display stats, courtesy of Samsung’s own screen

The high-definition lobby display

Concessions menus offer live action, advertisements and menu prices

Sometimes, a non-digital display works just as well

Broncos fans get technology to help speed up concessions at Mile High

A fan uses the visual-recognition system to purchase concessions at Empower Field at Mile High earlier this fall. Credit all photos: Paul Kapustka, MSR (click on any picture for a larger image)

Can technology finally help improve one of the biggest pain points in the game-day experience, namely waiting in line for concessions? At the Denver Broncos’ Empower Field at Mile High, a number of new technology initiatives debuted this year, all designed to improve the fan experience around concession purchases by providing more choice and streamlined checkout procedures.

While there are no hard numbers yet on the experiments, a Mobile Sports Report visit to Mile High earlier this year saw heavy use of the new technologies, which mainly include touch-screen ordering and payment systems as well as an innovative visual-recognition device to tabulate items in grab-and-go scenarios. A few quick interviews with fans at the stands got mixed reactions on whether or not the new technology actually speeded up the processes, but some stopwatch clocking showed speedy checkouts, especially those using the visual-recognition technology, where items are placed on a scanner bed which then quickly recognizes and tabulates the total on an attached payment screen.

For those of us who are now (maybe unwillingly) becoming accustomed to checking out our own items at supermarket self-checkout terminals, the Broncos’ stands that utilize the visual-recognition devices (from a company called Mashgin) are far easier to use than trying to scan a barcode for each item. At Mile High, the scanners are the perfect endpoint for a series of stands called “Drink MKT,” which are basically spaces with coolers filled with multiple beverage choices, from bottled water through multiple types of beer and other alcoholic drinks, including $100 bottles of John Elway Cabernet. At those stands fans simply walk in, choose what they want from a cooler and queue up for the scanners. When items are placed on the scanner beds the system’s cameras detect the items and generate a total bill, which is paid for by credit card on an attached terminal. Human-staff intervention is only needed to check IDs and to help fans open up the beverages before they leave the stand.

Fans line up to order fried chicken via a digital-screen kiosk.

While one fully jammed Drink MKT stand on the main concourse level didn’t seem to be moving any more quickly than traditional concessions windows (“It’s not faster, but there are way more choices,” said one fan), on the top-level concourse a stream of fans grabbed beverages just after the game’s start, with each transaction taking only a minute or less from setting the items on the scanner to leaving the stand. “It’s fun!” said two fans leaving the Drink MKT stand on the top-level concourse. “And it’s way faster.”

The Mashgin scanners were also in use at another stand clearly designed to speed up the food-getting process, a walk-through type arrangement where fans could grab from a limited selection of food and beverage items (pizza, popcorn, hot dogs, plus beer and soft drinks) before paying at a Mashgin scanner. Again, the only human interaction from a staffing point was to check IDs, help customers with the payment system, and ensure all beverages were opened before the fans left the stands. Truly, the interaction that took the longest was the can opening process, which is tricky to do yourself if you are carrying several items (there are no bags to carry the concessions from the stands). The Mashgin systems are showing up in other sports venues, including this report of it being combined with the Clear system to speed up payments even more.

Display ordering and payment systems also emerge

Another self-service technology (which many have probably seen in fast-food restaurants or other venues like airports) in use at Mile High is the use of digital display screens to let fans order from on-screen menus and pay with a credit card at the same terminal. At Mile High, like other systems used at some stadiums and at many fast-food restaurants, the digital terminals spit out a paper slip with an order number that fans use to pick up their items at a separate window.

Fans with club-level seats can order drinks and food for delivery to their seats via the team app.

On the main lower-level concourse at Mile High, such a system was in heavy use at a fried-chicken food stand, with many fans clearly comfortable with the ordering, payment and pickup process. MSR saw some similar systems in use at Chase Center, the Golden State Warriors’ new home, on a recent visit there this fall.

The Broncos also have another type of digital-screen ordering system in one of their premium club areas, where fans can order items from several different “stands,” each with a different entree or dessert item. Again, a paper ticket is generated that the fans then take to the food-preparation stands to pick up their orders.

Club-level fans also have the opportunity at Mile High to order food and drink to be delivered to their seats, via the team app. The food ordering and delivery function is powered by Tap.in2, a company we’ve profiled before.

We’ll circle back with the Broncos after this season to try to get some stats on whether or not the new stands and technologies won over fans and improved the service, but it’s heartening to see stadiums and teams push the envelope a bit to help fans get back to their seats more quickly. More photos below!


A look at the entry to one of the Drink MKT stands

The grab-and-go format of the Drink MKT stands offers fans a lot of choice

Technology can help, but the just-before-kickoff crush will always produce a line

The order-and-pay kiosks at a fried chicken stand are familiar to anyone who’s done fast food recently


A club-level kiosk system allows fans to pick from several different food stands


Most kiosk systems seemed to have a good amount of customization available

The club-level stands offer flexible choices


The Mashgin checkout systems were also used at a grab-and-go food/beverage stand


Tailgating at Mile High can still be classy and old-school


In case you hadn’t heard, the place has a new name

Hard to beat a sunny Sunday at Mile High

Converged fiber network the hidden gem at Dickies Arena

Dickies Arena, now open in Fort Worth, Texas, has a single converged fiber backbone to bring order and efficiency to its networking needs. Credit all photos: Paul Kapustka, MSR (click on any picture for a larger image)

With its soaring roof and its high-end cosmetic finishes, Fort Worth’s new Dickies Arena will be a wonder to look at for fans of all events that will take place there.

But what may be even more impressive, certainly from an IT perspective, is something you can’t see: The single, converged fiber network that supports all network operations, including the cellular DAS, the arena Wi-Fi and the IPTV operations, in an orderly, future-proofed way.

Built by AmpThink for the arena, the network is a departure from what has long been the norm in venue IT deployments, where multiple service providers typically build their own networks, with multiple cabling systems competing for conduit space. At Dickies Arena, AmpThink was able to control the fiber systems to follow a single, specific path, allowing the company to save costs and space for the client while building out a system with enough extra capacity to handle future needs for bandwidth, according to AmpThink.

“This is really our master class [on stadium network design],” said AmpThink president Bill Anderson, during a September MSR visit and tour of the almost-ready arena. If you’re not familiar with the Dickies Arena story, the 14,000-seat arena is part of a public-private venture between the city of Fort Worth and a consortium of investors and donors led by local Fort Worth philanthropist Ed Bass. Though it doesn’t have a professional basketball or hockey tenant, the NBA-sized venue will fill an arena-sized need for events in the growing Fort Worth area, while also serving as the new home for the Fort Worth Stock Show and Rodeo.

Following the lead of AT&T Stadium, where high-end finishes were a hallmark of Dallas Cowboys owner Jerry Jones’ influence, Dickies Arena appears to take cosmetic matters a full step further, with intricate tile flooring and art-quality finishes on areas like stairway handrails and bar facades. In an early September walkaround while workers were still completing finishing touches like polishing concrete floors to make the surfaces shine, MSR also got to see the results of owners’ requests of “not having a single cellular or Wi-Fi antenna visible,” according to AmpThink’s Anderson.

No fiber allowed outside of the single path

Editor’s note: This report is from our latest STADIUM TECH REPORT, an in-depth look at successful deployments of stadium technology. Included with this report is a profile of the new Wi-Fi 6 network at Ohio Stadium, and an in-person research report on the new Wi-Fi network at Las Vegas Ballpark. You can either VIEW THE REPORT LIVE (no registration needed) or DOWNLOAD YOUR FREE COPY now!

In the suite and concourse areas, for example, Wi-Fi APs and DAS antennas are hidden behind ceiling panels, with no electronics in sight. But what’s even more impressive from an engineering and construction standpoint is what’s happening further down the network path from the endpoints, where all cable and fiber follows a structured pathway, first to an IDF and then back to the head end rooms in the arena’s basement.

Fiber cables head to the head end room in orderly fashion.

“No fiber is allowed to follow a path that doesn’t tie to an IDF, or directly to the head end,” said Anderson. “And we didn’t allow DAS vendors to be outside the closet. It’s the venue’s fiber network. Nobody else could come in and build their own.”

Looking from the end of the project back, it’s clear why you might want to pursue such a path: With a single, converged network, design and planning and eventually operations are streamlined, since there aren’t multiple infrastructures to deploy and maintain. The conditions also allowed AmpThink to fully pre-design and perform many construction techniques like splicing and cable measurement and cutting beforehand – according to Anderson, there was not a single fiber termination done in the field.

“For venues it used to be, use the ‘brute force’ method and just go figure it out in the field,” Anderson said.

At Dickies Arena, that method simply wasn’t the case. In addition to fiber cabling and splicing work, AmpThink also built many custom enclosures (the company has a large machine shop at its Dallas-area headquarters where it can design and manufacture parts like metal wiring boxes and the plastic enclosures it uses for stadium Wi-Fi and DAS deployments) to simplify installation while complying with the strict aesthetic requirements.

“AmpThink helped us think proactively so we are prepared to build on this solid foundation for the future,” said Matt Homan, president and general manager of Trail Drive Management Corp (TDMC), the not-for-profit operating entity for Dickies Arena. “This has allowed us to have a much more cost-effective approach, which is important for us as a 501c3 organization operating Dickies Arena. The AmpThink team has done a phenomenal job of assisting with the architectural integrity of the building to ensure that no Wi-Fi or DAS antennas were seen.”

High-end finishes are everywhere in Dickies Arena, even in the stairwells.

Jeff Alexander, senior vice president at ExteNet Systems, said Dickies Arena was the first time ExteNet ever participated in a converged network design for a large public venue. But Alexander also said ExteNet, which is responsible for the DAS design and 5G cellular installations at Dickies Arena, had years of experience in situations where service providers had to work together.

“Most [other] DAS deployments give no consideration for Wi-Fi, or anything else,” said Alexander in a phone interview. “Given ExteNet’s experience and our track record, these are things we were forced to think about 10 years ago.”

According to Alexander, the directive to work with a single converged fiber network wasn’t “harder” than a regular installation.

“It was unique,” Alexander said of the Dickies Arena installation experience. “It made us think of things we hadn’t thought about, and challenged us to consider other things than the typical DAS installation, which isn’t a bad thing. I consider it a success.”

At Dickies Arena, the DAS uses the Corning ONE DAS hardware system with approximately 500 active antennas in 12 zones for the DAS.

As future-proofed as possible

As part of the overall fiber network design, AmpThink’s Anderson said the company maximized capacity throughout the building, with hundreds of extra fiber strands available to support future capacity needs. By using optical fiber with hundreds of strands wound together – including some stretches with 864 different fiber strands inside a single cable – AmpThink actually saved time, money and space by preventing the need for additional infrastructure or future cable pulls.

The center-hung video board in testing mode

“The bulk of the cost [of fiber deployments] is the labor to pull the fiber,” Anderson said. By using large-bundle fiber, Anderson said AmpThink was able to drive the cost per strand to “a very low number,” while also clearing conduit space since a large-bundle fiber strand saves a huge amount of space when compared to multiple smaller-bundle strands which must each have their own insulation.

While ExteNet’s Alexander contends that no network design can ever be truly “future-proofed” – if you ask him he will tell you a story about a large sports venue where ExteNet is currently replacing 864-strand fiber put in 5 years ago with 1,728-strand fiber – he does agree that putting in as much fiber as the design and cost allows buys a venue time to support the always-growing demand for bandwidth.

“The industry is full of venues that didn’t do that, and 12 months later they’re expanding their fiber plant,” Alexander said. AmpThink’s Anderson noted that even during the arena’s construction, there were demands for additional fiber – such as for a densification in the LED ribbon boards – that were easily addressed.

“People came back to us, and said they needed more fiber, and we had it to give to them, no problem,” Anderson said. “It didn’t cost us a lot to do it [add in more fiber strands]. It’s a model everyone should look at.”

Want to read more in-depth reports from our latest issue? VIEW THE REPORT LIVE (no registration needed).

The rodeo will be the main event at Dickies Arena every year

The soaring, open rooftop is meant to mimic the wide open skies of Texas

The AmpThink-designed and manufactured cabling cabinets helped complete the ‘master class’ installation

New Report: Wi-Fi arrives at Ohio Stadium

MOBILE SPORTS REPORT is pleased to announce the Fall 2019 issue of our STADIUM TECH REPORT series, the ONLY in-depth publication created specifically for the stadium technology professional and the stadium technology marketplace.

Our latest issue contains an in-person report on the new Wi-Fi 6 network installed at Ohio Stadium, which is already the top collegiate Wi-Fi network in the country, producing record results. This issue also has an in-person profile of the Wi-Fi network at the new Las Vegas Ballpark, as well as a “first look” at Chase Center, the new home of the Golden State Warriors! Download your FREE copy today!

Inside the report our editorial coverage includes:
— An in-depth look at the new Wi-Fi 6 network installed at Ohio State University’s Ohio Stadium;
— An in-person report on the Wi-Fi network at the ‘hottest’ stadium in minor league baseball, the Las Vegas Ballpark;
— A look at the single, converged fiber network infrastructure at the soon-to-open Dickies Arena in Fort Worth;
— A “First Look” at the Chase Center, the new home of the Golden State Warriors.

Download your free copy today!

We’d like to take a quick moment to thank our sponsors, which for this issue include Mobilitie, JMA Wireless, Corning, Boingo, MatSing, Cox Business/Hospitality Network, Connectivity Wireless, and American Tower. Their generous sponsorship makes it possible for us to offer this content free of charge to our readers. We’d also like to welcome readers from the Inside Towers community, who may have found their way here via our ongoing partnership with the excellent publication Inside Towers. We’d also like to thank the SEAT community for your continued interest and support.

As always, we are here to hear what you have to say: Send me an email to kaps@mobilesportsreport.com and let us know what you think of our STADIUM TECH REPORT series.
