Bird of a different feather: Atlanta’s Mercedes-Benz Stadium takes tech in a new direction

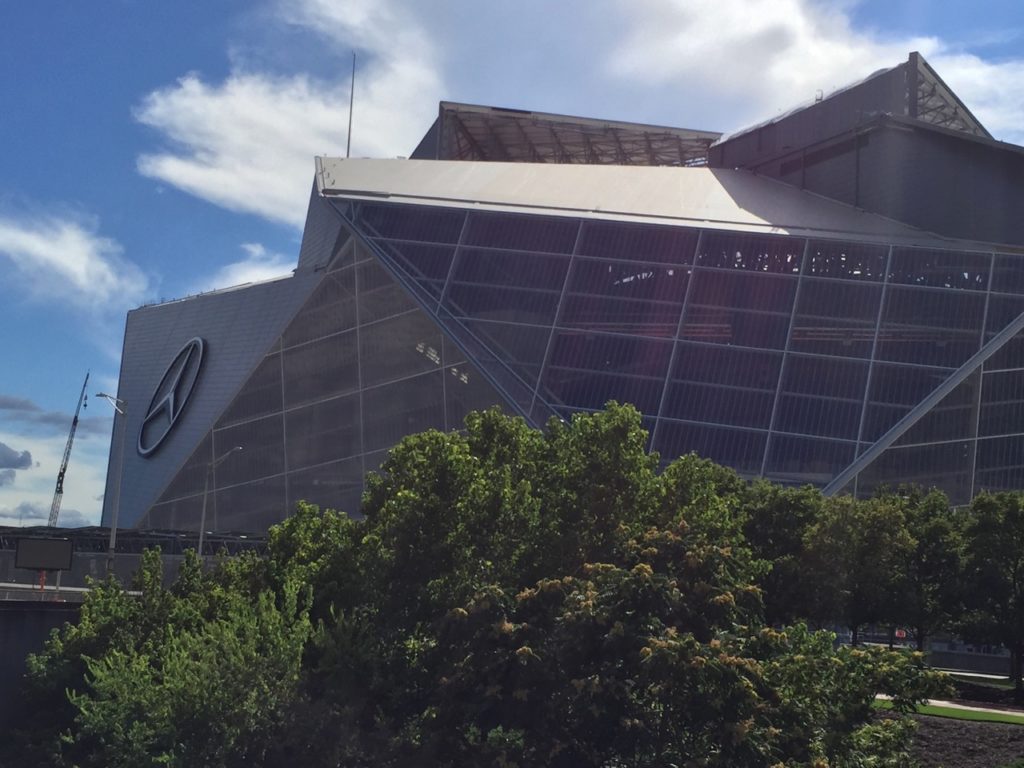

Mercedes-Benz Stadium, the new home of the Atlanta Falcons. Credit all photos: Paul Kapustka, MSR (click on any picture for a larger image)

As you walk up to it, the striking angular architecture of Atlanta’s Mercedes-Benz Stadium is a way of telling you, before you even set foot inside, that this building is different from any other stadium you may know. When you get inside, see the eight-petal roof and the circular video “halo board” right below it, those feelings are confirmed.

Deeper inside the venue’s construction, the theme is continued with the building’s network technology, which is similarly different if less easily seen. With more fiber optical cabling than perhaps any comparable stadium, the new home of the NFL’s Atlanta Falcons is built more with an eye toward what comes next, while also debuting with systems built with the peak of current knowledge and deployment designs.

Unlike the owners and operators of some other new arenas, the Falcons’ aren’t wasting much bandwidth trying to paint Mercedes-Benz Stadium as the best-ever when it comes to stadium technology. (In fact the stadium network crew is being very closed-mouth about everything, not providing any game-day statistics even though informed rumors tell us that the Wi-Fi network is doing very well.) But come back in 5 years, or even 10 years from now, and see if the decisions made here were able to consistently keep the Falcons’ new roost at the top of the stadium-technology game.

Table stakes, plus a halo board

Editor’s note: This profile is an excerpt from our latest STADIUM TECH REPORT, our Fall 2017 issue that has in-depth profiles of network deployments at Notre Dame Stadium, Colorado State’s new stadium, and the Los Angeles Coliseum. DOWNLOAD YOUR FREE COPY of the report today!

Inside the Falcons’ new roost, with the halo board and roof visible

What’s working now, as the venue enters the Falcons’ 2017 NFL season, includes a Wi-Fi network built with nearly 1,800 Aruba access points. Of the 1,000 of those installed in the main seating bowl, most are mounted underneath the seats, a trend that gained steam a couple years ago and now has numerous proof points behind the higher capacity and faster performance of so-called “proximate” networks. There’s also a neutral-host distributed antenna system, or DAS, for enhanced cellular coverage, built and owned by the arena with space rented out to all four of the major U.S. cellular carriers.

And then there’s the halo board, the circular or oval-shaped video screen that circumnavigates the roof right at the base of the also-innovative eight-petal roof, which is designed to open or close in seven minutes or less. If big video screens are a never-ending trend the Falcons are right out in front with their offerings at Mercedes-Benz Stadium, starting with the halo board and the “mega-column,” a hundred-foot high vertical screen just inside the main entryway. The 2,000-plus other regular-sized screens scattered around the venue should ensure there’s always a display visible, no matter where guests are looking.

And while the team has future plans for video, the one piece of network technology that may matter most is the optical fiber, which can support wider bandwidth and faster speeds than traditional copper cabling. The statistic thrown around often in the Mercedes-Benz Stadium press materials — nearly 4,000 miles of fiber used — is meaningless to most who repeat it, other than it seems like a lot of glass wiring.

What’s more interesting from a stadium-design perspective is not exactly the total but instead the reach of the fiber, as the network designers pushed fiber out to the edges much further than before, betting that by putting more capacity farther into the reaches of the stadium, there will be less needs for big-time network upgrades in the future, when the inevitable need for more bandwidth arrives.

Under-seat Wi-Fi AP

“We like to say we’re future flexible, not future proof,” said Jared Miller, chief digital officer for the Falcons. “Future proof does not exist in technology.”

Informed by Texas A&M

In picking IBM as its lead networking technology partner, the Falcons most certainly gleaned a lot of their stadium network design lessons from the 2015 deployment of a new Wi-Fi network at Texas A&M’s Kyle Field, a project also led by IBM. Making deep use of Corning fiber networking technology, A&M’s Wi-Fi network hit the ground running hard, as a big number of under-seat APs supported several big days of data use by the 100,000-plus Aggie fans who filled the building on home-game weekends.

The basic idea behind using fiber is that optical cabling can carry far more bandwidth at faster speeds than a comparable copper wire. By putting more fiber farther out into all reaches of a stadium, a network can be “future proofed” by being able to support many more new devices on the end of each fiber strand. By not having to string new cabling everywhere to support greater demand, a stadium will theoretically spend far less money in the long haul.

Wi-Fi and DAS will have the bathroom lines covered

From a network backbone perspective, the Falcons took what Texas A&M did and pushed even farther with fiber, taking the glass circuits as close to the edge devices (mainly Wi-Fi APs) as possible. In our mid-August press tour at Mercedes-Benz Stadium, we saw many of the so-called “mini-IDFs,” small closets with three or four pieces of gear in them, mounted on walls throughout the stadium.

“We kept the use of copper as short as possible,” said Miller. “With bandwidth demands continuing to grow at an exponential rate, we need to make sure we keep pace with rapidly evolving technology.”

If there is one big drawback to using fiber, it has to do with the intricacies of dealing with the construction end of building fiber networks, since the cables need to be precisely cut and joined, often with highly specialized equipment. There are also far more network technicians who are trained in copper wiring deployments than in fiber, so personnel issues can also increase costs and complexity.

On the eve of the Falcons’ first regular-season home game, a mid-September playoff rematch with the Green Bay Packers, Miller and his crew had not yet provided any traffic or network throughput statistics from the preseason games at Mercedes-Benz Stadium. However, some inside sources told MSR that the Wi-Fi traffic during the preseason and the early September college game was at the top range of what has been historically seen for NFL game days, so it appears that the system is ready to go.

Holding off on more bells and whistles

Though it may be hard for any other stadium to top the halo board for a while, on some other technology-related items the Falcons and Mercedes-Benz Stadium are taking a step back and not pushing digital solutions to where they might not be needed.

One of the many ‘mini-ISFs,’ this one in the press box

On the stadium app side, for instance, the IBM-developed application does not support some services seen at other NFL or pro-league stadiums, like “blue dot” wayfinding or in-seat food delivery or even express pickup for concessions. Instead, the app uses wayfinding based on static maps, where you need to put in both a location and a desired destination; and on the food-ordering side, fans can enter in an order and their credit card information, but must then take it to a stand to be scanned and fulfilled.

And while the Falcons’ new app does have a fun FAQ chatbot called “Ask Arthur” (for the team’s owner, Arthur Blank), there won’t be any live instant replay features in the app. With all the video screens in the stadium, the Falcons think they have the replay angle thing covered. The Falcons will use the app, however, for expanded digital-ticketing features as well as to help fans find and pay for parking. On the concessions side, the Falcons’ well-reported “fan friendly” pricing with low costs for most stadium food staples might prove more interesting to fans than being able to have food delivered.

Miller was also adamant that fans won’t see any portal or other marketing messages between finding and connecting to the Wi-Fi network.

“You just join ‘AT&Twifi’ and you’re on,” Miller said. “You’re a guest in our house. The last thing we want to do is slow you down from getting on the network.”

The big metal falcon in front of the stadium looks out over downtown Atlanta

More Wi-Fi APs visible under the overhang

A view from the AT&T Porch out through the windows

Wi-Fi, app ready to go for Falcons’ preseason opener at Mercedes-Benz Stadium

The shiny new stadium gets ready to host its first big event this weekend. Credit all photos: Paul Kapustka, MSR (click on any photo for a larger image)

It might have taken some recent all-nighters, but the crew behind the technology at Mercedes-Benz Stadium said that the Wi-Fi and DAS networks, as well as the new app, will be ready to go when the Atlanta Falcons hold their first big event at their new home this Saturday.

“We’ve spent the last week really tuning the Wi-Fi, and it’s awesome to see the speeds we’re getting as I walk around,” said Jared Miller, chief digital officer for the Falcons, in a phone interview Thursday. “I’m anxious to see how it will do with a full house.”

The first potential for a packed stadium comes Saturday night, when the Falcons host the Arizona Cardinals in an NFL preseason game. With roughly 1,800 Aruba Wi-Fi APs installed inside (1,000 in the seating bowl and the rest in concourses and other areas), Mercedes-Benz Stadium should have excellent Wi-Fi coverage, even if it takes several events to figure out the things you can only figure out once you have live people in the seats.

“We’ll need a few events until we get to a spot where we’re dialed in [with network performance],” said Miller. Though Miller said the Falcons were able to get some network feedback during a recent season-ticket holder open house, real performance stats won’t come until fans are filling the venue for an NFL game.

“You just have to go through a series of events to see actual performance,” Miller said.

Home page of the new Falcons app from IBM

Curiously, Miller would not comment directly when asked if any carriers other than sponsor AT&T had officially signed on to be on the Falcons’ neutral-host DAS. However, he did say that “all the fans who [are at the game] should be able to have cellular connections.” (Any attendees who want to send us speedtests of Wi-Fi or DAS, you know where to find us.)

New app gets its debut

One area that might cause some delays getting into the arena is the Falcons’ decision to go to all-digital ticketing — fans must either have an RFID card (for season tickets) or must download the new team app so they can have digital tickets on their phones. Both the RFID cards and phones can be scanned at the SkiData turnstyle machines.

“We’re encouraging fans to download the app before they get to the game,” Miller said.

The new version of the team app, which was only made live in the last couple days, was built by main IT contractor IBM.

App view of a wayfinding map

The IBM app will do things a little bit differently than other stadium apps; the wayfinding maps are not “blue dot” or interactive like Google Maps or other stadium apps like those at Levi’s Stadium or Sacramento’s Golden 1 Center. Instead, fans must enter both their location and their desired destination to see a path on a stored map.

Food ordering via the app is also handled differently than apps that support in-seat delivery or express window pickup. With the Falcons app fans will select from a list of concession stands, then enter credit card information and their order, which will be scanned at the stand, according to IBM. While such new services always take some time for fans to discover and use, Miller is keen to see if the new systems work as promised.

“We want to see not just quantitative numbers but qualitative data too,” Miller said. “Did it really benefit fans? Were they able to bust the queue? Would they do it again?”

The app also has a Falcons-esque chat bot, called “Ask Arthur” for owner Arthur Blank; while the bot can quickly answer FAQ-type questions about the stadium and its operations, more open-ended queries will require perhaps some time with IBM’s Watson technology (see examples in photos below).

And on a final low-tech note, Miller said the Falcons had been in constant touch with several local groups, including the Georgia Department of Transportation, the city of Atlanta and the MARTA light rail system to get all the pertinent maps and signs updated. On Mobile Sports Report’s visit to Mercedes-Benz Stadium and Atlanta last week, we noticed that there were very few signs up with Mercedes-Benz Stadium on them.

One big map on the wall inside the nearby CNN Center (where there is a large public food court) didn’t even have Mercedes-Benz Stadium on an area map, and a sign over the MARTA station just outside the new stadium’s doors had no mention of Mercedes-Benz Stadium but still did mention the Georgia Dome, the next-door neighbor slated for demolition. The MARTA online map still lists “Dome” but not “Mercedes-Benz Stadium” for the stop outside the venue’s doors.

“We’ve scoured the city looking for anything that still says Georgia Dome,” Miller said. Getting all the new signs up, he said, is “in the process of getting done.”

The ‘Ask Arthur’ bot can answer simple questions about Mercedes-Benz Stadium but…

… don’t ask the app for Super Bowl odds

We’re hoping this map, seen here on a wall inside the nearby CNN Center, has been updated

One of the many under-seat Wi-Fi APs that will be getting their first test this weekend

Chief digital officer Jared Miller answers questions at the recent media day

On Aug. 15, this sign over the nearby MARTA station still didn’t mention Mercedes-Benz Stadium

Atlanta’s Mercedes-Benz Stadium nears the finish line

Sorry, this venue is not open yet! Credit all photos: Paul Kapustka, MSR (click on any picture for a larger image)

If there’s a huge tease to the audience at this year’s SEAT Conference in Atlanta it’s that there is no official visit planned to the nearby stadium that is on everyone’s mind, the Atlanta Falcons’ Mercedes-Benz Stadium.

Built right next door to the Georgia Dome, the new venue looks all finished from the outside, but there are still construction chain-link fences around it keeping anyone from getting too close to the building. A quick visit by yours truly Sunday afternoon got the pictures seen here, including the angular, glassy construction, the big metal falcon (caged for now) but no live look at the halo video board (though we thought we could see the curves inside).

Jared Miller, chief technology officer for AMB Sports & Entertainment, told us on the phone last week that Mercedes-Benz Stadium “is definitely in the final throes” of development, which is scheduled to end on Aug. 26 when the Falcons host their first NFL preseason game. There also may be an earlier public-unveiling event but the NFL date is the first scheduled full-scale opening of the Falcons’ new roost.

Miller spelled out a few previously unconfirmed facets of the technology deployment going on inside the stadium — the Wi-Fi gear is from Aruba, a Hewlett Packard Enterprise company; and lead contractor IBM will also be supplying the stadium’s mobile apps, with separate versions for the Falcons, the Atlanta United FC of the MLS, and one for the stadium itself (to be used for concerts, college football games and other non-NFL or non-MLS events).

Mercedes-Benz Stadium in all its glory

Mercedes-Benz Stadium will also have a neutral host DAS run by the Falcons using Corning ONE gear.

No in-seat delivery for concessions

Another interesting twist is that Miller said the while the Falcons’ apps will have the ability to allow fans to order food and drink, it will be for pickup at express windows only, and NOT for delivery to seats, a service seen at other venues like the San Francisco 49ers’ Levi’s Stadium. Miller said the AMB team has taken a different approach and expects fans to roam about more inside Mercedes-Benz Stadium, which has many different “experiential” zones where fans can watch the action from someplace other than their seat.

But even with all the different technology and lower food prices, Miller is betting that the one thing that visitors will keep talking about is the halo video board, the main “big screen” that wraps around the inside of the roof in a full circle.

“When fans enter they’re going to look up and go, ‘Wow!’ and do it the first time, and the 10th time they visit,” Miller said. Miller said he was walking back to the stadium recently and saw the halo board in action, and stopped in awe. “I look up and am just blown away by it,” he said. Falcons fans and other interested visitors are looking forward to feeling that feeling soon. More photos below!

Anyone see a halo board in there?

Yes, it’s very close to the Georgia Dome.

Mr. Blank, uncage this bird!

Seen on the MARTA train in from the airport: Still time to get a gig at the stadium!

A better look at the big bird

Optical fiber, under-seat Wi-Fi will power wireless connectivity at Atlanta’s Mercedes-Benz Stadium

Aerial photo of Mercedes-Benz Stadium under construction. Credit all photos and artist renderings: Merecedes-Benz Stadium (Click on any photo for a larger image)

Aerial photo of Mercedes-Benz Stadium under construction. Credit all photos and artist renderings: Merecedes-Benz Stadium (Click on any photo for a larger image)

Once just a series of drawings on a blueprint, Atlanta’s new Mercedes-Benz Stadium is getting more real by the day, with walls being added to steel beams, and wires for the internal networks being pulled into place.

Though the June 2017 opening day still is many months away, thanks to thoughtful planning many elements of the stadium’s network have already been tested, thanks to a facility created by stadium network officials to test components under situations as close to “live” as they could possibly get. That lab environment helped the network team make its final decisions on vendors and deployment methods, like going under-seat for deployment of most of the 1,000 Wi-Fi APs that will be in the stadium’s bowl area, part of a planned total of 1,800 APs in the entire venue.

In a recent interview with Jared Miller, chief technology officer at AMB Sports and Entertainment (the entity named for Arthur Blank, the owner of the Atlanta Falcons), Mobile Sports Report got an exclusive update on the construction progress so far for the new $1.5 billion facility, along with new details about the internal network deployment, which will be using more optical fiber than any previous stadium network we know of.

Like the network built at Texas A&M’s Kyle Field, the network inside Mercedes-Benz Stadium will have a single optical core for Wi-Fi, cellular and video, using the Corning ONE platform and deployed by lead network integrator IBM along with Corning.

Wall panels being added to Mercedes-Benz Stadium in Atlanta

Wall panels being added to Mercedes-Benz Stadium in Atlanta

Miller also confirmed our earlier report that YinzCam software would be used to host the stadium’s IPTV deployment, but vendor choices for Wi-Fi gear and a stadium app have yet to be named.

As construction teams continue to hustle toward completion of the building, here are more details from our conversation with Miller about how the Falcons’ tech team went through the process of determining the products and methods that would allow them to construct a network able to “push the limits” on fan connectivity.

Under-seat for Wi-Fi, with handrail heat sinks

In our early August conversation with Miller, he was happy to report that the planned 4,000 miles of optical fiber were finally starting to be threaded into the new building. “We’re making great progress with a ton of yellow cable,” Miller said.

While the overall architecture at the network core in Mercedes-Benz Stadium will be similar to the one IBM and Corning deployed at Kyle Field, Miller said that in Atlanta his team is pushing fiber even farther to the edge, “with only the last couple feet at most being copper.”

Interior suite construction with fiber cable visible

Interior suite construction with fiber cable visible

Miller said optical fiber, which can carry more data traffic at faster speeds than copper cable, is a necessary infrastructure underpinning for facilities like Mercedes-Benz Stadium that expect to host the biggest events like the Super Bowl and college football championship games. Mercedes-Benz Stadium is already slated to host Super Bowl LIII, the 2018 College Football Playoff Championship, and the 2020 Final Four.

“I really believe [fiber] gives us the foundation to grow and react in the future, to handle technologies we don’t even know about yet,” Miller said.

On the Wi-Fi side of things, Miller said that Mercedes-Benz Stadium will also mimic Kyle Field’s extensive use of under-seat APs in the bowl seating areas. Miller said the stadium will have 1,000 APs serving the seating areas and another 800 for the rest of the venue, for a total Wi-Fi AP count of 1,800.

Since the Mercedes-Benz Stadium network will be using more optical equipment closer to the edge, Miller said that his team used 3D printing experiments to craft custom enclosures for the under-seat APs, both to ensure they didn’t act as debris “traps” and also to add elements like an internal heat sink to diffuse the warmth from the extra electrical components. The heat sink solution involved attaching the AP elements to metal chair railings to dissipate heat, Miller said.

Testing the network before the building is built

After announcing its partnership with IBM in early 2015 as lead technology integrator, the stadium network team spent 6 months reworking the network design, Miller said, a process that confirmed the choice of optical networking at the core. Then to help the network team select gear and components, the Mercedes-Benz Stadium organization built a “full-scale lab facility” that Miller said allowed his team to build multiple live networks to test gear for performance and interaction with other network elements.

Artist rendering of outside of building

Artist rendering of outside of building

“The lab enabled us to see firsthand how gear behaved, not just alone but together [with other products],” said Miller, who added that at one time the network team had three simultaneous running stadium networks inside the lab.

“We were able to bring in different endpoint devices, like POS systems, and know how it’s going to behave [in a network],” Miller said. Plus, the network gave eventual business users of the planned gear time to get hands-on experience and training well before the stadium opens its doors.

On the DAS side of the network buildout, Miller said the stadium has an on-site, raised-floor room for DAS gear with “ample room” for future growth.

“One of those things we learned was that DAS [needs] always double,” Miller said.

YinzCam software for IPTV

Though the stadium hasn’t yet announced a provider for a game-day stadium application, Miller did confirm that Mercedes-Benz Stadium will use YinzCam software to control its IPTV system, which will cover the 2,500 or so TV screens inside the building.

Artist rendering of Falcons game configuration with roof open and 'halo' video board visible

Artist rendering of Falcons game configuration with roof open and ‘halo’ video board visible

“YinzCam is just the most intuitive and capable content management system,” Miller said.

Video is going to be a big part of the stadium from all angles, beginning with the one-of-a-kind “halo board,” a circular screen that will sit inside the retractable roof lines. For standard TV placements, Miller said Mercedes-Benz Stadium will use mainly 50-inch screens and will work with YinzCam to ensure the screens can be seen.

In the stadium’s suites, TV screens will be controlled by a tablet application; Miller said that Mercedes-Benz Stadium is also “contemplating adding the ability to control TV screens with a mobile app,” like the system YinzCam deployed at Texas A&M.

Friendly food pricing and more to come

Though Miller’s concerns are mostly technological in nature, he said there are still a lot of improvements coming to the stadium “that are not always reliant on brute technology,” like the new lower-priced food menus the Falcons announced earlier this year that seem to harken another era with $2 Cokes and $2 hot dogs. Miller said the stadium team continues to get feedback from a fans’ council, which has tagged the arrival and departure experience as one of the main pain points that needs fixing.

Artist rendering of window wall with view to city

Artist rendering of window wall with view to city

Mercedes-Benz Stadium will try to alleviate ingress and egress issues by doing things like creating “ticketed spaces” perhaps on the big outdoor plazas where many fans can congregate even before entering the stadium doors. By creating such spaces, Miller said fans might be able to enter the stadium more rapidly without the logjams that sometimes occur.

“We’re going to study arrival patterns and see what it looks like,” Miller said. “We have one more season to test those kind of things.”

Another amenity that may emerge is the use of wireless charging stations at a number of locations, to combat a scenario that Miller said often happens at marquee events, mainly fans’ phones draining their batteries as they compete with other devices to connect to a wireless network.

“We are focusing on providing amazing connectivity and pushing the limits,” Miller said. “We are looking at all kinds of options to allow fans to stay connected and not be separated from their device.”
