Notre Dame Stadium sees 4 TB of Wi-Fi used at NHL Winter Classic

It wasn’t a record-setting day for the Wi-Fi network at Notre Dame Stadium, but the 4 terabytes of data used by fans at Tuesday’s NHL Winter Classic continued a string of healthy wireless data use by attendees at the recently renovated venue.

With 76,126 in attendance to watch the Boston Bruins beat the Chicago Blackhawks in the latest of the NHL’s outdoor-arena games, some 17,000 unique devices connected to the stadium’s Wi-Fi network, according to statistics provided by the university. The peak concurrent Wi-Fi connections were 14,355, and peak throughput was 5.81 Gbps, according to the school. Given the winter weather and the fact that many fans were no doubt visiting Notre Dame for the first time, it’s no surprise that the data usage trailed all the other events at Notre Dame Stadium this fall and winter (see chart below). Still, a 4 TB day is still a big number, and again perhaps more impressive considering the conditions. Earlier this fall, Notre Dame Stadium saw 7.19 TB used for a game against Stanford.

According to some reports, including this story from CBS News, the second-largest ever Winter Classic crowd saw some issues arise on the concessions side, with some fans reporting that the stadium had run out of food and beer and that many concession lines were extremely long. Another report quoted a Notre Dame spokesperson as saying the reports of being out of food or beer were untrue.

More Wi-Fi stats from Notre Dame’s fall and winter events below. Thanks again to Notre Dame’s IT crew for providing the figures.

New Report: Texas A&M scores with new digital fan-engagement strategy

In the short history of in-stadium mobile fan engagement, a team or stadium app has been the go-to strategy for many venue owners and operators. But what if that strategy is wrong?

That question gets an interesting answer with the lead profile in our most recent STADIUM TECH REPORT, the Winter 2018-19 issue! These quarterly long-form reports are designed to give stadium and large public venue owners and operators, and digital sports business executives a way to dig deep into the topic of stadium technology, via exclusive research and profiles of successful stadium technology deployments, as well as news and analysis of topics important to this growing market.

Leading off for this issue is an in-depth report on a new browser-based digital game day program effort launched this football season at Texas A&M, where some longtime assumptions about mobile apps and fan engagement were blown apart by the performance of the Aggies’ new project. A must read for all venue operations professionals! We also have in-person visits to Atlanta’s Mercedes-Benz Stadium and the renovated State Farm Arena, the venue formerly known as Philips Arena. A Q&A with NFL CIO Michelle McKenna-Doyle and a report on a CBRS network test by the PGA round out this informative issue! DOWNLOAD YOUR REPORT today!

We’d like to take a quick moment to thank our sponsors, which for this issue include Mobilitie, JMA Wireless, Corning, Huber+Suhner, Boingo, Oberon, MatSing, Neutral Connect Networks, Everest Networks, and ExteNet Systems. Their generous sponsorship makes it possible for us to offer this content free of charge to our readers. We’d also like to welcome readers from the Inside Towers community, who may have found their way here via our ongoing partnership with the excellent publication Inside Towers. We’d also like to thank the SEAT community for your continued interest and support.

As always, we are here to hear what you have to say: Send me an email to kaps@mobilesportsreport.com and let us know what you think of our STADIUM TECH REPORT series.

Mercedes-Benz Stadium Wi-Fi saw 12 TB of data used at January’s college championship

The iconic ‘halo board’ video screen below the unique roof opening at Atlanta’s Mercedes-Benz Stadium. Credit all photos: Paul Kapustka, MSR (click on any picture for a larger image)

The Wi-Fi network at Atlanta’s Mercedes-Benz Stadium saw 12 terabytes of data used at the 2018 College Football Playoff championship on Jan. 8, 2018, according to officals from the Atlanta Falcons, owners and operators of this city’s new distinctive venue.

We’d long suspected that Mercedes-Benz Stadium, which opened in August of 2017, had seen big data days inside the 71,000-seat arena with its innovative technology, but until Sunday the Falcons had never made any network-performance data publicly available. But a day after the venue saw another 8.06 TB of Wi-Fi used during the SEC Championship game, Danny Branch, chief information officer for AMB Sports & Entertainment, revealed the statistics during a live MSR visit at an Atlanta Falcons home game. The 12 TB mark (which was an estimate — we’ll check back with the Falcons for exact numbers) is the second-highest we’ve ever seen in our unofficial research of single-day Wi-Fi totals, trailing only the 16.31 TB recorded at Super Bowl LII in February at U.S. Bank Stadium.

“We’re confident and ready for the Super Bowl,” said Branch during a pregame stadium tour, details of which we’ll dig into deeper in a full profile for our upcoming Winter Stadium Tech Report. Multiple network speed tests taken by MSR during Sunday’s 26-16 Falcons loss to the visiting Baltimore Ravens showed robust Wi-Fi performance on the network that uses gear from Aruba, a Hewlett Packard Enterprise company, in a design from AmpThink.

DAS renovation complete

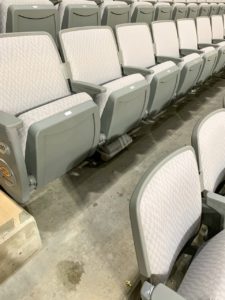

An under-seat DAS antenna in the 300 seating section at Mercedes-Benz Stadium

According to Branch, the cellular distributed antenna system (DAS) network inside Mercedes-Benz — a deployment that is at the center of a current lawsuit filed by contractor IBM against gear supplier and designer Corning — is also now at full deployment, with the completion of 700 new under-seat DAS antenna deployments, mostly in the upper seating deck.

MSR speed tests taken during Sunday’s game showed a wide range of DAS results, from single-digit tests in some tough-deployment areas to results near 100 Mbps directly in front of what looked like some new antenna deployments. Again, look for more details in our upcoming profile in the Winter Stadium Tech Report (due out in mid-December).

“We’re in a good place [with the DAS],” said Branch, though he did say there was going to be more DAS work done on the outside of Mercedes-Benz Stadium prior to when Super Bowl LIII comes to the venue on Feb. 3, 2019, mainly to help ensure that the move toward more digital Super Bowl tickets goes smoothly. Mercedes-Benz Stadium also now has a couple of MatSing ball antennas in its rafters, there to bring DAS coverage to the sidelines of the playing field.

Sunday the Mercedes-Benz Stadium staffers were hosting a rare big-game back-to-back event, following Saturday’s packed-house tilt between SEC powers Alabama and Georgia, a championship-game rematch won by Alabama 35-28 after a dramatic comeback.

“That was a massive flip,” said Branch of the two-day stretch, which saw another huge data day Saturday with 8.06 TB of Wi-Fi used. The network, sponsored by backbone provider AT&T, averages about a 50 percent take rate from event attendees, according to Branch, who gave praise to Aruba and AmpThink for their combined deployment efforts.

“The expectation for fans now is that there will be Wi-Fi [in a sports venue],” said Branch. “But I love it when friends come to me after a game and tell me ‘the Wi-Fi is so fast!’ ”

THE MSR TOP 17 FOR WI-FI

1. Super Bowl 52, U.S. Bank Stadium, Minneapolis, Minn., Feb. 4, 2018: Wi-Fi: 16.31 TB
2. 2018 College Football Playoff Championship, Alabama vs. Georgia, Mercedes-Benz Stadium, Atlanta, Ga., Jan. 8, 2018: Wi-Fi: 12.0 TB*
3. Super Bowl 51, NRG Stadium, Houston, Feb. 5, 2017: Wi-Fi: 11.8 TB
4. Atlanta Falcons vs. Philadelphia Eagles, Lincoln Financial Field, Philadelphia, Pa., Sept. 6, 2018: Wi-Fi: 10.86 TB
5. Super Bowl 50, Levi’s Stadium, Santa Clara, Calif., Feb. 7, 2016: Wi-Fi: 10.1 TB
6. Taylor Swift Reputation Tour, Gillette Stadium, Foxborough, Mass., July 27, 2018: Wi-Fi: 9.76 TB
7. Minnesota Vikings vs. Philadelphia Eagles, NFC Championship Game, Lincoln Financial Field, Philadelphia, Pa., Jan. 21, 2018: Wi-Fi: 8.76 TB
8. Jacksonville Jaguars vs. New England Patriots, AFC Championship Game, Gillette Stadium, Foxborough, Mass., Jan. 21, 2018: Wi-Fi: 8.53 TB
9. Taylor Swift Reputation Tour, Broncos Stadium at Mile High, May 25, 2018: Wi-Fi: 8.1 TB
10. Kansas City Chiefs vs. New England Patriots, Gillette Stadium, Foxborough, Mass., Sept. 7, 2017: Wi-Fi: 8.08 TB
11. SEC Championship Game, Alabama vs. Georgia, Mercedes-Benz Stadium, Atlanta, Ga., Dec. 1, 2018: Wi-Fi: 8.06 TB*
12. Green Bay Packers vs. Dallas Cowboys, Divisional Playoffs, AT&T Stadium, Arlington, Texas, Jan. 15, 2017: Wi-Fi: 7.25 TB
13. Stanford vs. Notre Dame, Notre Dame Stadium, South Bend, Ind., Sept. 29, 2018: 7.19 TB
14. (tie) Southern California vs. Notre Dame, Notre Dame Stadium, South Bend, Ind., Oct. 21, 2017: 7.0 TB
Arkansas State vs. Nebraska, Memorial Stadium, Lincoln, Neb., Sept 2, 2017: Wi-Fi: 7.0 TB
15. WrestleMania 32, AT&T Stadium, Arlington, Texas, April 3, 2016: Wi-Fi: 6.77 TB
16. Wisconsin vs. Nebraska, Memorial Stadium, Lincoln, Neb., Oct. 7, 2017: Wi-Fi: 6.3 TB
17. Super Bowl 49, University of Phoenix Stadium, Glendale, Ariz., Feb. 1, 2015: Wi-Fi: 6.23 TB

* = pending official exact data

Notre Dame sees 7.19 TB of Wi-Fi for Stanford game

Add another one to the top 15 list: Notre Dame Stadium saw 7.19 terabytes of data used on its Wi-Fi network during the Sept. 29 home game against Stanford, a 38-17 win for the Fighting Irish.

The top mark so far for the year-old network had 27,812 unique connections during game day, according to statistics provided by Notre Dame. The peak concurrent connection number was 22,447, and the network saw peak throughput of 7.867 Gbps, which occurred during the pregame flyover. According to Notre Dame officials, the fans on the network “maxed our 10Gbps border firewall during the game a few times,” over a firewall connection shared with other networks on campus. All statistics were recorded between 5:30 p.m. and 1:00 a.m. local time, according to Notre Dame.

THE MSR TOP 15 FOR WI-FI

1. Super Bowl 52, U.S. Bank Stadium, Minneapolis, Minn., Feb. 4, 2018: Wi-Fi: 16.31 TB
2. Super Bowl 51, NRG Stadium, Houston, Feb. 5, 2017: Wi-Fi: 11.8 TB
3. Atlanta Falcons vs. Philadelphia Eagles, Lincoln Financial Field, Philadelphia, Pa., Sept. 6, 2018: Wi-Fi: 10.86 TB
4. Super Bowl 50, Levi’s Stadium, Santa Clara, Calif., Feb. 7, 2016: Wi-Fi: 10.1 TB
5. Taylor Swift Reputation Tour, Gillette Stadium, Foxborough, Mass., July 27, 2018: Wi-Fi: 9.76 TB
6. Minnesota Vikings vs. Philadelphia Eagles, NFC Championship Game, Lincoln Financial Field, Philadelphia, Pa., Jan. 21, 2018: Wi-Fi: 8.76 TB
7. Jacksonville Jaguars vs. New England Patriots, AFC Championship Game, Gillette Stadium, Foxborough, Mass., Jan. 21, 2018: Wi-Fi: 8.53 TB
8. Taylor Swift Reputation Tour, Broncos Stadium at Mile High, May 25, 2018: Wi-Fi: 8.1 TB
9. Kansas City Chiefs vs. New England Patriots, Gillette Stadium, Foxborough, Mass., Sept. 7, 2017: Wi-Fi: 8.08 TB
10. Green Bay Packers vs. Dallas Cowboys, Divisional Playoffs, AT&T Stadium, Arlington, Texas, Jan. 15, 2017: Wi-Fi: 7.25 TB
11. Stanford vs. Notre Dame, Notre Dame Stadium, South Bend, Ind., Sept. 29, 2018: 7.19 TB
12. (tie) Southern California vs. Notre Dame, Notre Dame Stadium, South Bend, Ind., Oct. 21, 2017: 7.0 TB
Arkansas State vs. Nebraska, Memorial Stadium, Lincoln, Neb., Sept 2, 2017: Wi-Fi: 7.0 TB
13. WrestleMania 32, AT&T Stadium, Arlington, Texas, April 3, 2016: Wi-Fi: 6.77 TB
14. Wisconsin vs. Nebraska, Memorial Stadium, Lincoln, Neb., Oct. 7, 2017: Wi-Fi: 6.3 TB
15. Super Bowl 49, University of Phoenix Stadium, Glendale, Ariz., Feb. 1, 2015: Wi-Fi: 6.23 TB

Notre Dame sees 6.1 TB of Wi-Fi for Michigan game

Wi-Fi enclosure on a railing at Notre Dame Stadium. Credit: Paul Kapustka, MSR

Though it just missed making our all-time unofficial top 10 list, the Wi-Fi data total from Notre Dame’s home and season opener against Michigan still saw 6.1 terabytes of Wi-Fi data used, signifying perhaps that user demand for wireless bandwidth at big sporting events remains as strong as ever.

The Sept. 1 game at Notre Dame Stadium, a 24-17 Notre Dame victory, also saw 29,329 unique connections on the Wi-Fi network, according to statistics provided to MSR by Notre Dame. With an announced attendance of 77,622 at the game, that’s a take rate of almost 38 percent.

Notre Dame also said that it saw 22,568 peak concurrent clients on the Wi-Fi network, and had a peak throughput of 7.66 Gbps. The 6.1 TB total data use is the third-highest at Notre Dame Stadium since its AmpThink-designed Wi-Fi network (using Cisco gear) debuted last season, trailing a 6.2 TB mark recorded in a game against Georgia and a 7.0 TB mark for a game against USC.

Looking ahead, Notre Dame’s network has a possibility for big numbers when currently ranked Stanford comes to Notre Dame on Sept. 29, or when Florida State visits on Nov. 10. Anyone else with numbers to report for the new season? The list stands ready for new entrants!

THE MSR TOP 10 FOR WI-FI

1. Super Bowl 52, U.S. Bank Stadium, Minneapolis, Minn., Feb. 4, 2018: Wi-Fi: 16.31 TB
2. Super Bowl 51, NRG Stadium, Houston, Feb. 5, 2017: Wi-Fi: 11.8 TB
3. Super Bowl 50, Levi’s Stadium, Santa Clara, Calif., Feb. 7, 2016: Wi-Fi: 10.1 TB
4. Minnesota Vikings vs. Philadelphia Eagles, NFC Championship Game, Lincoln Financial Field, Philadelphia, Pa., Jan. 21, 2018: Wi-Fi: 8.76 TB
5. Kansas City Chiefs vs. New England Patriots, Gillette Stadium, Foxborough, Mass., Sept. 7, 2017: Wi-Fi: 8.08 TB
6. Green Bay Packers vs. Dallas Cowboys, Divisional Playoffs, AT&T Stadium, Arlington, Texas, Jan. 15, 2017: Wi-Fi: 7.25 TB
7. (tie) Southern California vs. Notre Dame, Notre Dame Stadium, South Bend, Ind., Oct. 21, 2017: 7.0 TB
Arkansas State vs. Nebraska, Memorial Stadium, Lincoln, Neb., Sept 2, 2017: Wi-Fi: 7.0 TB
8. WrestleMania 32, AT&T Stadium, Arlington, Texas, April 3, 2016: Wi-Fi: 6.77 TB
9. Wisconsin vs. Nebraska, Memorial Stadium, Lincoln, Neb., Oct. 7, 2017: Wi-Fi: 6.3 TB
10. Super Bowl 49, University of Phoenix Stadium, Glendale, Ariz., Feb. 1, 2015: Wi-Fi: 6.23 TB

Technology central to Target Center renovations

The new scoreboard is one of the highlights of the Target Center renovation. Credit: Target Center (click on any photo for a larger image)

For Minneapolis residents who passed by every day, the renovation of the Target Center might have seemed like a mining project, chipping away at a somewhat blank slate until a sparkling gem was revealed.

Now complete, the 2-year, $145 million project to update the 28-year-old downtown venue has brought the 19,356-seat arena to the forefront of advanced fan experiences, with its main tenants, the NBA’s Minnesota Timberwolves and the WNBA’s Lynx, now able to offer fans amenities like open club spaces, high-density Wi-Fi and cellular connectivity, and a new mobile app as well as a huge new center-hung video scoreboard.

All those features are located inside the arena’s shiny new exterior, which includes a multi-level atrium with glass windows facing the streets, replacing the old concrete walls. According to Ted Johnson, chief strategy officer for the Timberwolves, the renovation “touched every surface,” with new seats, bathrooms and other hard-to-notice items like a real loading dock to make it easier to move equipment (like concert staging) in and out of the arena.

Technology to the forefront

Editor’s note: This profile is an excerpt from our latest STADIUM TECH REPORT issue for Spring 2018, which includes a look at Wi-Fi performance during the Final Four, a recap of wireless performance at Super Bowl 52, a profile of new venue construction in Los Angeles and more! DOWNLOAD YOUR FREE COPY right now from our site!

Target Center’s new entryways use lots of glass. Credit: Paul Kapustka, MSR

On top of the physical changes came the technology layer, with obvious improvements including the center scoreboard, which Johnson said is “the largest in the Midwest,” and four new large video boards in each of the stadium’s upper corners. New LED ribbon boards circle the stadium bowl as well, with one lower one and another series of ribbons above higher entryways that create what Johnson calls an “optical illusion” of a second continuous ribbon.

A new fiber-based network backbone was also installed, to support a cellular DAS deployment as well as a new Wi-Fi network designed and deployed by AmpThink, a company extending its mark in Minneapolis after previous Wi-Fi deployments at U.S. Bank Stadium and the Mall of America.

According to AmpThink, the Wi-Fi network inside the Target Center has approximately 400 access points, but since many of those are the newer Cisco 3800 versions with two radios in each AP, there are actually about 550 radios serving the stadium.

During a visit to the arena during a game in November, Mobile Sports Report found solid Wi-Fi speed results in all parts of the venue, including the upper seating areas and the concourses. Walking around the upper concourse by section 240 we got a Wi-Fi speed test of 34.42 Mbps on the download side and 45.20 on the upload; in the same location, a test of the DAS network for a Verizon Wireless client saw speeds of 22.88 Mbps / 22.66 Mbps.

Moving into the upper stands, at the top rows of section 239 we still got Wi-Fi speeds of 33.73 Mbps / 61.56 Mbps; looking up, we could see multiple Gillaroo antennas mounted up in the catwalks, along with the glowing blue lights of the APs.

Lots of light is a hallmark of the new Target Center. Credit: Target Center

Down in the open gathering area near the brewpub (located in the stands behind one of the baskets) we got Wi-Fi marks of 21.26 Mbps / 67.07 Mbps. Then in one of the stadium’s club suites we got a test of 42.27 Mbps / 68.83 Mbps, with all tests taken during game-action times. We did not get any lower-bowl seating area tests, where AmpThink said it has deployed APs under seats.

Linking digital displays and Wi-Fi

In addition to its Wi-Fi design and deployment, AmpThink is also assisting the Timberwolves in using the digital displays to drive fan engagement with the app and the Wi-Fi network. The AmpThink tests, Johnson said, along with the decision to switch to VenueNext for a new app (which supports more fan services than the previous, content-focused team app), are part of a deliberate strategy to build a next-generation “seamless fan experience” that starts long before fans get to the arena.

“We’ve used Flash Seats for some time now — we were one of the first [teams] to disable paper printing [for tickets],” Johnson said. “We had already educated fans to use a mobile device, so we decided to use that advantage as much as we could.”

A big part of the physical renovation, Johnson said, included improvements to the intersections between the arena and downtown Minneapolis’ famed Skyway, the connected maze of in-building public walkways and skybridges that links much of downtown together.

“Right now 12,000 to 15,000 people a day come through our building via the Skyways, and about 66 percent of our fans come into the building through there [the Skyway],” Johnson said. As part of the renovation the Target Center added digital displays to its Skyway territory, and the team is part of a city-wide plan to bring beacon technology to the Skyway system so that a wayfinding app could be used to help visitors, residents and anyone else better find their way around.

New video boards on the concourses relay messages to fans walking by
