Broncos Stadium at Mile High sees 12.63 TB of Wi-Fi during Garth Brooks show

The Garth Brooks show in Denver June 8 saw fans use a venue-best 12.68 terabytes of data on the Wi-Fi network at Broncos Stadium at Mile High, according to figures provided by the team’s IT department.

In what sounds like a great time for both attendees and the performer (see Tweet below) there were 48,442 unique devices connected at some point during the night, according to figures sent our way by Russ Trainor, senior vice president of IT for the Broncos. That’s a take rate of about 58 percent, with some 84,000 fans in the stadium that night. Trainor also said that there was a peak concurrent connection total of 34,952 devices, and that the network saw a throughput peak of 17.65 Gbps, also a record for the venue.

The previous top Wi-Fi event at the Broncos’ home was a Taylor Swift concert last year, where the Wi-Fi network saw just over 8 TB of traffic. Looks like the continued improvements to the venue’s Wi-Fi network are able to handle more traffic.

THE MSR TOP 21 FOR WI-FI

1. Super Bowl 53, Mercedes-Benz Stadium, Atlanta, Ga., Feb. 3, 2019: Wi-Fi: 24.05 TB
2. NCAA Men’s 2019 Final Four semifinals, U.S. Bank Stadium, Minneapolis, Minn., April 6, 2019: Wi-Fi: 17.8 TB
3. Super Bowl 52, U.S. Bank Stadium, Minneapolis, Minn., Feb. 4, 2018: Wi-Fi: 16.31 TB
4. NCAA Men’s 2019 Final Four championship, U.S. Bank Stadium, Minneapolis, Minn., April 8, 2019: Wi-Fi: 13.4 TB
5. Garth Brooks Tour, Broncos Stadium at Mile High, June 8, 2019: Wi-Fi: 12.63 TB
6. 2018 College Football Playoff Championship, Alabama vs. Georgia, Mercedes-Benz Stadium, Atlanta, Ga., Jan. 8, 2018: Wi-Fi: 12.0 TB*
7. Super Bowl 51, NRG Stadium, Houston, Feb. 5, 2017: Wi-Fi: 11.8 TB
8. Atlanta Falcons vs. Philadelphia Eagles, Lincoln Financial Field, Philadelphia, Pa., Sept. 6, 2018: Wi-Fi: 10.86 TB
9. Super Bowl 50, Levi’s Stadium, Santa Clara, Calif., Feb. 7, 2016: Wi-Fi: 10.1 TB
10. Taylor Swift Reputation Tour, Gillette Stadium, Foxborough, Mass., July 27, 2018: Wi-Fi: 9.76 TB
11. Minnesota Vikings vs. Philadelphia Eagles, NFC Championship Game, Lincoln Financial Field, Philadelphia, Pa., Jan. 21, 2018: Wi-Fi: 8.76 TB
12. Jacksonville Jaguars vs. New England Patriots, AFC Championship Game, Gillette Stadium, Foxborough, Mass., Jan. 21, 2018: Wi-Fi: 8.53 TB
13. Taylor Swift Reputation Tour, Broncos Stadium at Mile High, May 25, 2018: Wi-Fi: 8.1 TB
14. Kansas City Chiefs vs. New England Patriots, Gillette Stadium, Foxborough, Mass., Sept. 7, 2017: Wi-Fi: 8.08 TB
15. SEC Championship Game, Alabama vs. Georgia, Mercedes-Benz Stadium, Atlanta, Ga., Dec. 1, 2018: Wi-Fi: 8.06 TB*
16. Green Bay Packers vs. Dallas Cowboys, Divisional Playoffs, AT&T Stadium, Arlington, Texas, Jan. 15, 2017: Wi-Fi: 7.25 TB
17. Stanford vs. Notre Dame, Notre Dame Stadium, South Bend, Ind., Sept. 29, 2018: 7.19 TB
18. (tie) Southern California vs. Notre Dame, Notre Dame Stadium, South Bend, Ind., Oct. 21, 2017: 7.0 TB
Arkansas State vs. Nebraska, Memorial Stadium, Lincoln, Neb., Sept 2, 2017: Wi-Fi: 7.0 TB
19. WrestleMania 32, AT&T Stadium, Arlington, Texas, April 3, 2016: Wi-Fi: 6.77 TB
20. Wisconsin vs. Nebraska, Memorial Stadium, Lincoln, Neb., Oct. 7, 2017: Wi-Fi: 6.3 TB
21. Super Bowl 49, University of Phoenix Stadium, Glendale, Ariz., Feb. 1, 2015: Wi-Fi: 6.23 TB

* = pending official exact data

Wi-Fi upgrade producing solid results for Denver Broncos at Mile High

A fan walks by a railing wireless enclosure in the upper deck of Broncos Stadium at Mile High during the Oct. 1 game against the Kansas City Chiefs. Credit all photos: Paul Kapustka, MSR (click on any picture for a larger image)

As the Denver Broncos’ Wi-Fi network upgrade nears its final steps of completion, solid coverage around the venue now known as Broncos Stadium at Mile High is producing Wi-Fi data totals averaging more than 6 terabytes per game, according to statistics from the team.

During a recent game-day visit to Mile High, Mobile Sports Report got consistent high-bandwidth readings for Wi-Fi throughout the venue, and into the parking lots as well. Multiple speed tests recorded bandwidth marks in the high double-digits of megabits per second, even at the top reaches of the stands as well as in other hard-to-cover areas, like concourses and plazas.

And even as Russ Trainor, Broncos’ senior vice president for information technology, and his networking team put the final tuning touches on an expansion that will end with somewhere near 1,500 Cisco Wi-Fi APs installed throughout the building, the football (and concert) fans who have shown up lately are already finding ways to use lots of Wi-Fi data. In the first three home games of the Broncos’ current regular season, Trainor said the Wi-Fi network has seen total single-day usage numbers of 6.4 TB, 6.3 TB and 6.2 TB, the latter coming during the exciting Monday Night Football game Oct. 1 versus the Kansas City Chiefs.

More APs coming for gate areas, concourses

“We still have a few more APs to add,” said Trainor in a quick interview during the Chiefs game, which MSR attended. And while Trainor added that the team is also planning to step up its promotion of the network, many fans are finding it already, as proven by some other high-water marks this year that include a peak of 32,837 concurrent users during the home opener on Sept. 9; peak throughput of 10.83 Gbps on Sept. 16; and the most unique connections, 42,981, on Oct. 1.

Parking lots are well-covered at Mile High

Because many of the new APs are the new Cisco 3800 Series with two radios, Trainor is confident the Broncos Stadium network is far from maxing out.

“We still have room to grow folks onto the system, and we’ll continue to advertise that network for the fans,” Trainor said.

During our visit at the Oct. 1 game, MSR was impressed the moment we got out of our car in the parking lot, when we recorded a Wi-Fi mark of 28.3 Mbps down and 56.5 Mbps up. As a Verizon customer we were automatically connected to the stadium’s Wi-Fi network, one of the perks that came with Verizon’s investments in the Wi-Fi and DAS networks at the stadium.

Inside the premium-seating United Club area, we got a Wi-Fi mark of 48.0 Mbps / 70.3 Mbps, even as fans crowded the open dining hall during pregame. We also saw some cool new food-station kiosks along one wall, each with its own connected display for menu items as well as a touchscreen payment system (a turnkey deployment from Centerplate, Tapin2, and PingHD) that eliminated the need for additional concessions staffers.

Up on the top-level concourse we saw APs every other wall section with two antennas pointing in opposite directions, coverage that produced one mark of 31.8 Mbps / 68.2 Mbps even as fans crowded the stands to get food and drink before kickoff. According to Trainor the concourse areas will get roughly a doubling of coverage with more APs next year, to support a plan to move to more digital payment methods.

A good look at the hardened, single-cable Wi-Fi APs in the walkway ramps area. According to the Broncos these use POE (power over Ethernet), cutting down on the conduit needed.

Out in the upper-level stands (Section 541, row 5) we got a Wi-Fi mark of 36.0 Mbps / 29.6 Mbps, in an area where we could see APs pointing down on the seats from the top-level light standards as well as in railing enclosures. Some areas in the upper deck are also covered by under-seat APs, which also are used in the south end zone stands where there is no overhang infrastructure.

We also got good connectivity in an often overlooked area, the walkway ramps and escalators behind the seats, where the Broncos installed some APs that use power over Ethernet and weather-hardened enclosures since those areas are more open to weather. While riding up on an escalator we not only stayed connected but got a test mark of 26.4 Mbps / 37.6 Mbps.

Keeping crowds of fans connected

In perhaps one of the biggest stress tests we could find, the Mile High Wi-Fi had no problem keeping fans connected. Just before halftime we planted ourselves on the outdoor plaza behind the south stands, and waited for fans to crowd the area during the break. With a Wi-Fi mark of 38.4 Mbps / 35.7 Mbps second five minutes into the halftime break, we were still able to easily view video highlights of the first half even as everyone around us was using their phones to check email or to connect with friends and family.

As the second-half kickoff neared, we walked into the main concourse underneath the west stands and still stayed solidly connected, with a mark of 33.0 Mbps / 59.1 Mbps in the middle of a thick crowd of fans who were either waiting for concessions or walking back to their seats.

With a high-water mark of 8.1 TB for a Taylor Swift concert earlier this spring, the new Wi-Fi network in Broncos Stadium at Mile High showed that it’s more than ready for big games or other big events. Some more photos from our visit below!

Nothing like Monday Night Football!

Fans gather on the south stands plaza during halftime

Close-up of an AP install on the back wall facing out into the south stands plaza

United Club dining area with single-stand kiosks in back

Single-stand food kiosk with its own display and self-service payment terminal (from PingHD)

AP deployment on top-level concourse

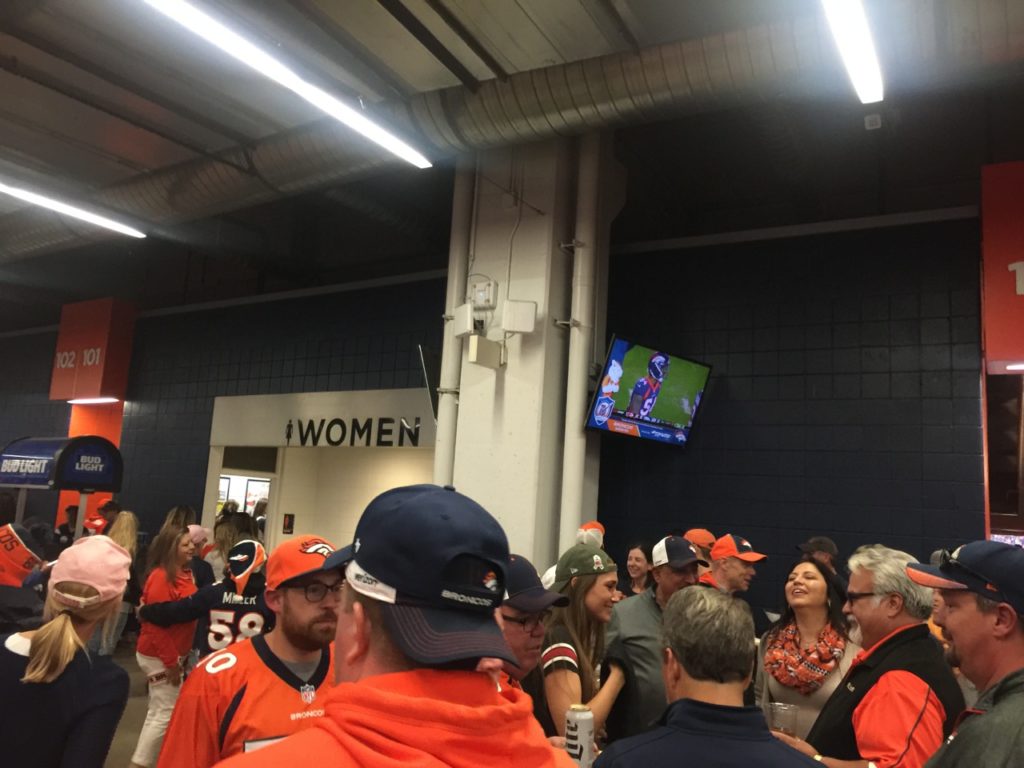

AP deployment (on post) in lower concourse area
