New Colorado State stadium has winning Wi-Fi network

Even though it’s not completely finished, the Wi-Fi network at Colorado State University’s new football stadium has already shown strong signs of promise, signaling a future with great connectivity for Rams fans at their new on-campus venue.

Being built by integrator 5 Bars, the network is in its final phases of completion, with enough of it turned on to get some positive results in the first two home games for Colorado State this season.

On Aug. 26, during Colorado State’s 58-27 win over visiting Oregon State, a sellout crowd of 37,583 crammed into the new on-campus venue for the Fort Collins, Colo., school. During the inaugural event, the not-yet-finished Wi-Fi network nevertheless saw 5,891 unique connections during the day with a peak concurrent number of 3,680 users at 3 p.m. local time, according to 5 Bars. Even with most of the under-seat Wi-Fi connections not yet online (5 Bars said the network was about at 35 percent capacity), the network still saw 2.7 terabytes of data used, an average of 458 MB per connected user.

A couple weeks later, Mobile Sports Report was in the house for CSU’s second home game, a 38-10 victory over Abilene Christian. With 27,038 fans in attendance, many wearing bright orange to celebrate CSU’s “Ag Day” heritage (the official school colors are green and gold), the network saw 4,548 unique users and 1.8 TB of traffic, according to 5 Bars.

Under-seat coverage impressive

Editor’s note: This profile is an excerpt from our latest STADIUM TECH REPORT, our Fall 2017 issue that has in-depth profiles of network deployments at Notre Dame Stadium, Mercedes-Benz Stadium, and the Los Angeles Coliseum. DOWNLOAD YOUR FREE COPY of the report today!

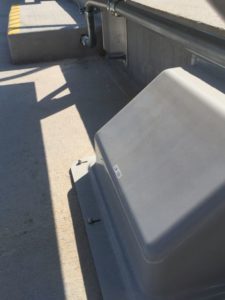

If there is a design tactic that seems to have paid off, it’s 5 Bars decision to go under-seat with Wi-Fi APs in most of the lower seating bowl. With 250 in-bowl APs out of the estimated 419 total APs used in the venue, many are in under-seat enclosures, both in premium areas with seats with backs, as well as in seating areas with metal benches.

And while building a stadium from scratch with Wi-Fi in mind usually means under-seat deployment can be easier, 5 Bars found that in the end it needed to place some APs in different spots, leading to some on-site construction that included coring holes in concrete steps to thread conduit across some aisles. The end result, however, is impressive, with MSR speed tests hitting the mid-50 Mbps and into the 60-Mbps marks for both download and upload speeds in most of the lower bowl seating, with tests taken before the game in an empty stadium.

But even later, with orange-clad CSU fans filling the seats, the working Wi-Fi network still performed admirably, with a 63.58 down and 48.35 up reading in the middle of the student section on the stadium’s east side during the first quarter. Closer to the end of the first quarter, we got a 24.33 / 9.96 reading in the lower section of the west side, the most tightly packed area in the stadium that day.

Light standards and beer gardens

While under-seat placements may be the workhorses at CSU’s new stadium, there are also plenty of overhead APs to fill in the gaps, such as at the top of the lower-bowl sections, mounted underneath the overhang. There are also Wi-Fi APs as well as DAS antennas on the large light standards that top the east stands. Though we didn’t test the DAS network, 5 Bars has a neutral host deployment that currently has Verizon Wireless online, with AT&T and T-Mobile to follow soon. Sprint is scheduled to be added next year, with support for Sprint’s 2.5 GHz spectrum, 5 Bars said.

One thing that makes the new CSU stadium unique is the New Belgium Brewing beer garden that fills the north end zone of the stadium. With several rows of long, stand-up tabletops where fans can sip a beer while watching the game, as well as a bar area behind, the beer garden was already a popular place to hang out, as evidenced by the big line that formed shortly after the stadium opened.

And thanks to the structures over the bar area, the beer garden was well covered by Wi-Fi APs mounted above the taps. Even down in one of the stand-up rows close to the field we were still able to get a Wi-Fi reading of 55.69 down and 24.11 up. We also taste-tested New Belgium’s “Old Aggie Lager,” a brew made specifically by the local company for CSU. It’s crisp and refreshing, especially on a sunny Saturday afternoon. And it goes perfectly with good Wi-Fi.

Fans are able to share social media posts via the new big screen video board

A look at the west stands from the back of the student section

An overhead look at the north end zone beer garden, with a view to the mountains just west of the venue

The beer garden standing area provides an up-close look at the action

As always, Mobile Sports Report tests, tests and tests again
