Converged innovation: SoFi Stadium’s networks break new ground

December 1, 2020 by Paul Kapustka Leave a Comment

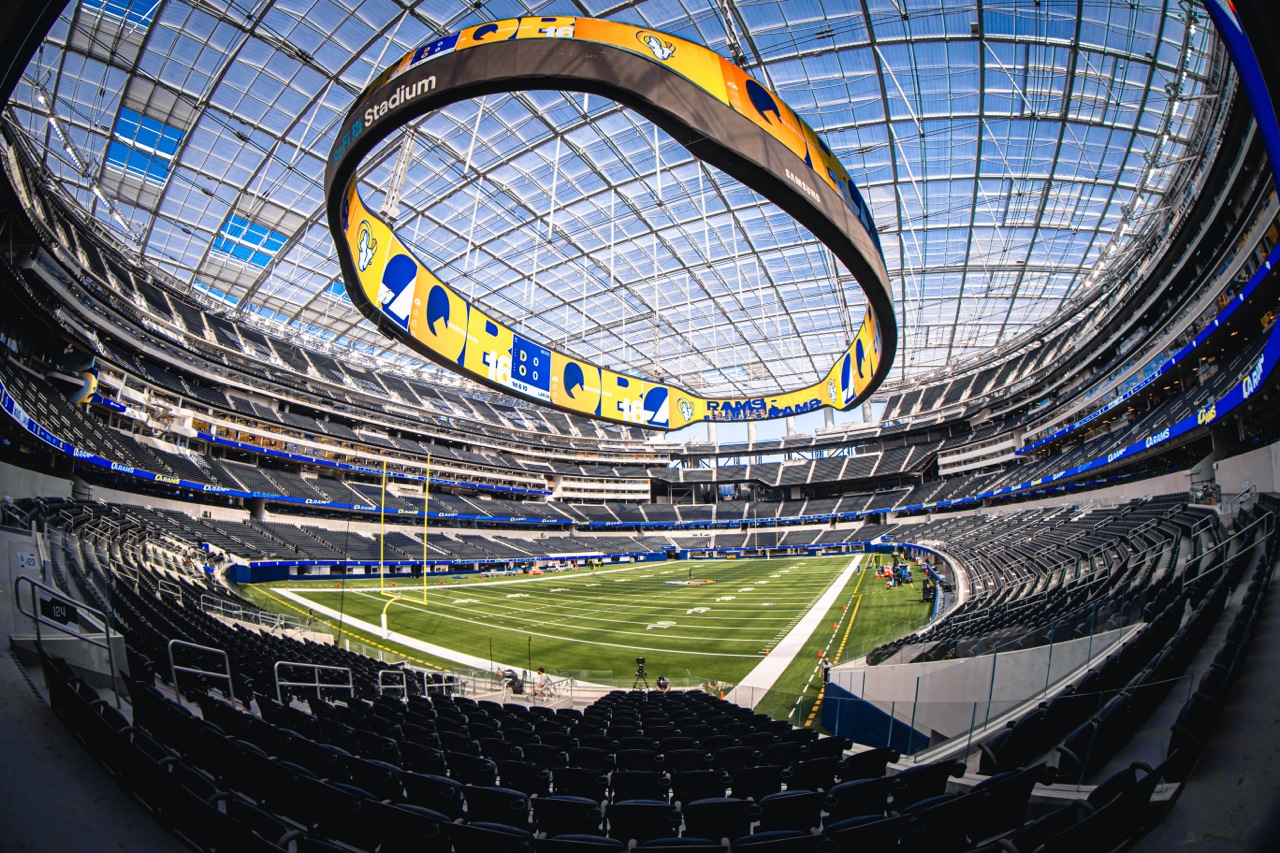

SoFi Stadium’s integrated technology is designed to elevate the fan experience at all levels. Credit: Jeff Lewis/LA Rams

When you spend more than $5 billion building a revolutionary-looking new sports and entertainment venue, it’s a good bet that the technology found inside is the best that can be found.

What’s truly innovative at the new SoFi Stadium in Los Angeles is not just the quality and functionality of the technology’s pieces and parts, but also the venue’s embrace of a converged network design, where all network-attached devices connect to a single Cisco Catalyst-based network.

Led by Skarpi Hedinsson, chief technology officer, SoFi Stadium and Hollywood Park, and master technology integrator AmpThink, the networking and compute environment deployed inside the building (as well as in Hollywood Park’s neighboring retail, commercial and residential area) is unlike most large venues, where different systems typically exist in their own silos, often with their own separate and different network.

Instead, the SoFi Stadium network brings all building functionality – including the wireless networks (among the largest built anywhere), the server compute platform, the telephone system, the IPTV network, the indoor and outdoor digital signage (including the massive oval dual-sided 4K main videoboard), the television broadcast systems, and the building management systems – into one converged platform, with a single vendor/single format structure.

“What we delivered is a scalable platform that simplifies Day 2 operations on Day 1,” said AmpThink president Bill Anderson.

Over the coming months, Stadium Tech Report plans to do deep technical dives on each segment of the stadium’s different technology deployments. Consider this story a sort of “executive summary” that will attempt to at the very least introduce all the technology elements that are part of the stunning new venue, which hosted its first NFL games for both stadium tenants, the Los Angeles Rams and the Los Angeles Chargers, in early September.

Converged network a revolution for stadiums

Editor’s note: This story is from our recent STADIUM TECH REPORT Fall 2020 issue, which you can read right now, no email or registration required! Also in this issue is a profile of the technology behind Allegiant Stadium in Las Vegas. START READING NOW!

If the stunning architecture of SoFi Stadium and its innovative elements like the oval, dual-sided videoboard represent the realization of Rams owner and Hollywood Park developer Stan Kroenke’s “art of the possible,” then the converged network and its interlocking technologies perhaps represent “the art of the practical,” at a scale somewhat unprecedented inside a large public venue.

If you poke your head inside older sports venues, you are most likely to see separate networks and operation centers for many of the different systems – wireless, wired networks, broadcast, and building operations. Historically the case has been made that those who know those systems best are responsible for building their operations – but the silo approach often brings headaches to those in charge of overall operations for the venue as a whole, as they deal with the proliferation of different systems to operate and manage.

Digital technologies helps SoFi Stadium be able to rebrand for each of its two “home” teams. Credit: Ty Nowell/Los Angeles Chargers

AmpThink, which has deployed networks in more than 70 venues across the country, pioneered the idea of a single, converged stadium network when it built the prototype at the 14,000-seat Dickies Arena last year. But the size and scope of the converged network project at SoFi Stadium – which will hold 70,000 fans for NFL games and up to 100,000 for special events like the Super Bowl – was much larger. Still, according to AmpThink’s Anderson, the planned outcome was the same: to deliver the best outcome for the customer.

“It all works together, because it’s designed to work together,” said Anderson. “Instead of fighting to see if one switch works with another, you can focus on the business.”

With 120 separate remote telecommunications rooms – including some hardened for hot weather conditions in the outside areas of Hollywood Park – the SoFi Stadium converged network is designed to present a “single pane of glass” management structure, where there are no “islands” requiring special attention.

Even the live video production system, usually a completely separate entity, is run on a connected Cisco Nexus switched environment. Every telecommunications closet or cabinet is directly connected via fiber to the campus core. According to AmpThink, all the telecom rooms have edge switches that use 25 Gbps optics and a minimum of two connections per closet/cabinet to provide an aggregate of 50 Gbps of campus interconnectivity.

The blanket of Wi-Fi and cellular coverage

On the Wi-Fi side, the SoFi Stadium network is the biggest AmpThink has built in a stadium, with approximately 2,400 APs inside the venue and another 300 in the surrounding Hollywood Park area. For the full Wi-Fi 6 Cisco deployment, AmpThink used an under-seat deployment in the main bowl. Before expanding to include full stadium technology integration, AmpThink made its name in successful big-venue Wi-Fi network design and deployment, with networks built most recently at Mercedes-Benz Stadium in Atlanta, and last year at Ohio State and Oklahoma University, the first two large-stadium networks to move exclusively to the new Wi-Fi 6 standard.

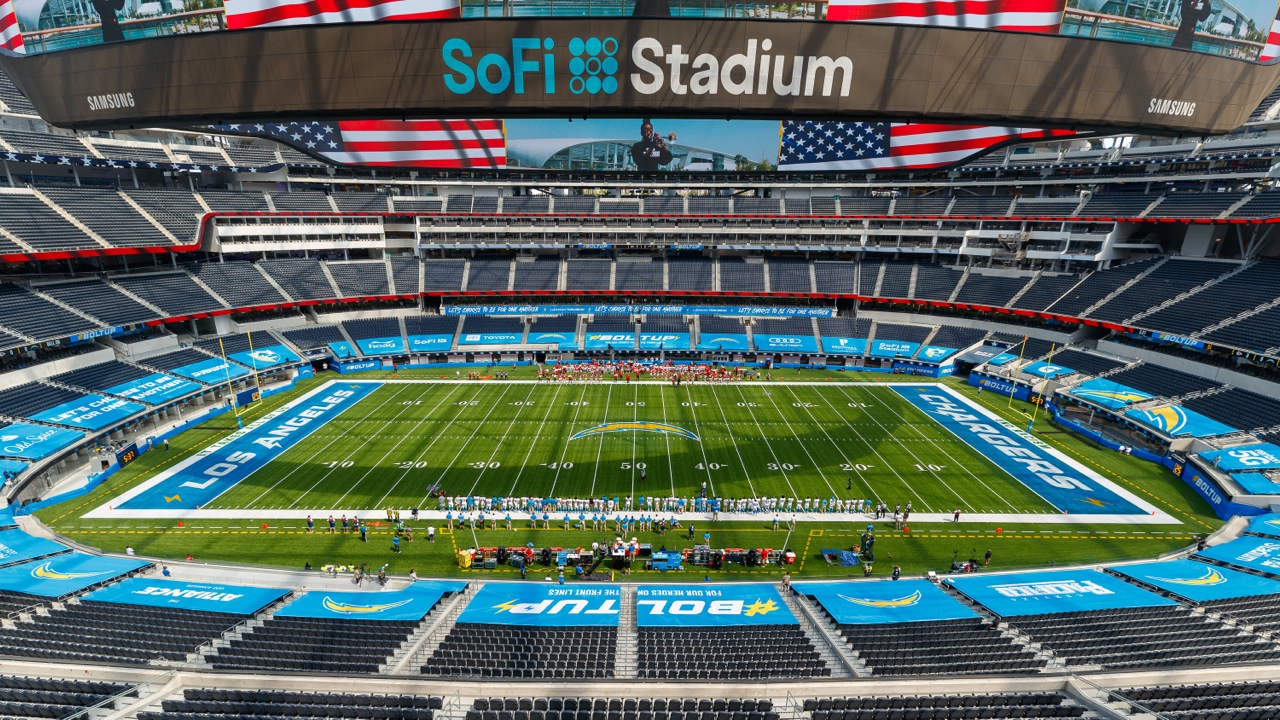

An outside view of the stadium. Credit: SoFi Stadium/LA Rams

In a commitment to offering the best possible connectivity to consumer devices no matter which network they use, the Wi-Fi and cellular distributed antenna system (DAS) at SoFi Stadium were both designed to each provide 100 percent venue coverage. The DAS, designed and deployed by DAS Group Professionals using gear from JMA Wireless, is the largest ever deployed. According to Hedinsson, the network has 2,400 antennas and 3,200 remotes, and is capable of covering all licensed spectrum bands between 600 MHz to 6 GHz.

As cellular carriers move toward the 5G future, the DAS is capable of supporting all the low- and mid-band spectrum currently planned for use. According to Hedinsson, there will also be millimeter-wave 5G services in the stadium, from a carrier to be named later. The stadium networks are supported by 50 Gbps backbone links.

Bringing data center strategies to the stadium

While hyper-convergence of server use is common in the data center space, that has traditionally not been the case in sports and entertainment venue operations. But the eventual compute network built for SoFi Stadium’s operations even surprised AmpThink’s Anderson, whose company originally estimated a compute environment with perhaps 20 to 30 virtual machines.

As it stands now, Anderson said the compute environment has almost 100 VMs, which host applications for all the network operations as well as varied building management needs like power, light, HVAC, security, and even specialized systems like irrigation and seismic monitoring. Instead of a mix of servers running siloed applications on separate physical machines with different operating systems, the SoFi Stadium compute environment is a unified platform and includes a seamless integration into Google Cloud, allowing it to be easily scaled to meet current and future needs.

A digital stadium with displays big and small

Any discussion of digital displays at SoFi Stadium has to start with the main videoboard, a one-of-a-kind design of a 120-foot long oval that circles the playing field, with dual-sided 4K screens, some 40 feet in height. (Please see our detailed profile of the main videoboard in our recent Venue Display Report.)

The digital display footprint goes far beyond the main screen, with some 2,600 other smaller boards deployed throughout the venue and in Hollywood Park. According to Hedinsson, the ability of the Cisco Vision display management system is a key part of the “digital stadium” design, especially when you consider that the venue has two main tenants, each with their own branding and look and feel.

“Being digital means we can switch over the branding [by changing displays] instead of physically having to move signs,” said Hedinsson. “That’s why we have Cisco Vision. We have digital ‘playbooks’ for the different scenarios, and we can just push them out as needed.”

Filed Under: 4G LTE, 5G, AmpThink, Cisco, DAS, NFL, Samsung, Wi-Fi Tagged With: 4G LTE, 5G, AmpThink, Cisco, DAS, DGP, Google, Hollywood Park, JMA, Los Angeles Chargers, Los Angeles Rams, Mobile Sports Report, NFL, Paul Kapustka, Samsung, Stadium Wi-Fi, Stan Kroenke, Wi-Fi

Innovation and experience leads the technology deployment at Raiders’ Allegiant Stadium

November 10, 2020 by Paul Kapustka Leave a Comment

Allegiant Stadium reflecting the evening sky in Las Vegas. Credit: Matt Aguirre/Las Vegas Raiders (click on any photo for a larger image)

If it looks somewhat like a spaceship, perhaps that’s appropriate since the arrival of Allegiant Stadium has brought to Las Vegas something alien that residents thought they might never see: live NFL games, happening just off the city’s famed Strip.

As befits its futuristic appearance, the new home of the newly named Las Vegas Raiders is also fitted with the latest in fan-facing technologies, deployments that will have to wait a bit before their potential can be realized.

Though the $1.9-billion, 65,000-seat stadium “officially” opened on Sept. 21 with a 34-24 Raiders victory over the New Orleans Saints, a decision made by the team earlier in the year meant that no fans were on hand to witness the occasion. But when fans are allowed to enter the building, they will be treated to what should be among the best game-day technical experiences anywhere, as a combination of innovation and expertise has permeated the venue’s deployments of wireless and video technologies.

With a Wi-Fi 6 network using equipment from Cisco, and an extensive cellular distributed antenna system (DAS) deployment by DAS Group Professionals using gear from JMA Wireless and MatSing, integrated fiber, copper and cable infrastructure from CommScope, backbone services from Cox Business/Hospitality Network, digital displays from Samsung, and design and converged network planning directed by AmpThink, the Raiders have used an all-star team of partners to reach the organization’s desire to provide what Raiders’ vice president of IT Matt Pasco calls “a top-notch fan experience.”

Finally getting to build a stadium network

For Pasco, who is in his 19th year with the Silver and Black, the entity that became Allegiant Stadium was the realization of something he’d never had: A stadium network to call his own.

From 1995 until the end of last season, the then-Oakland Raiders played home games in the Oakland Alameda County Coliseum, where they were tenants and shared the building with MLB’s Oakland Athletics.

According to Pasco, since the Raiders didn’t have the ability to direct capital improvements, “we never got to build a sufficient DAS, and we never got to have sufficient Wi-Fi for all our fans.”

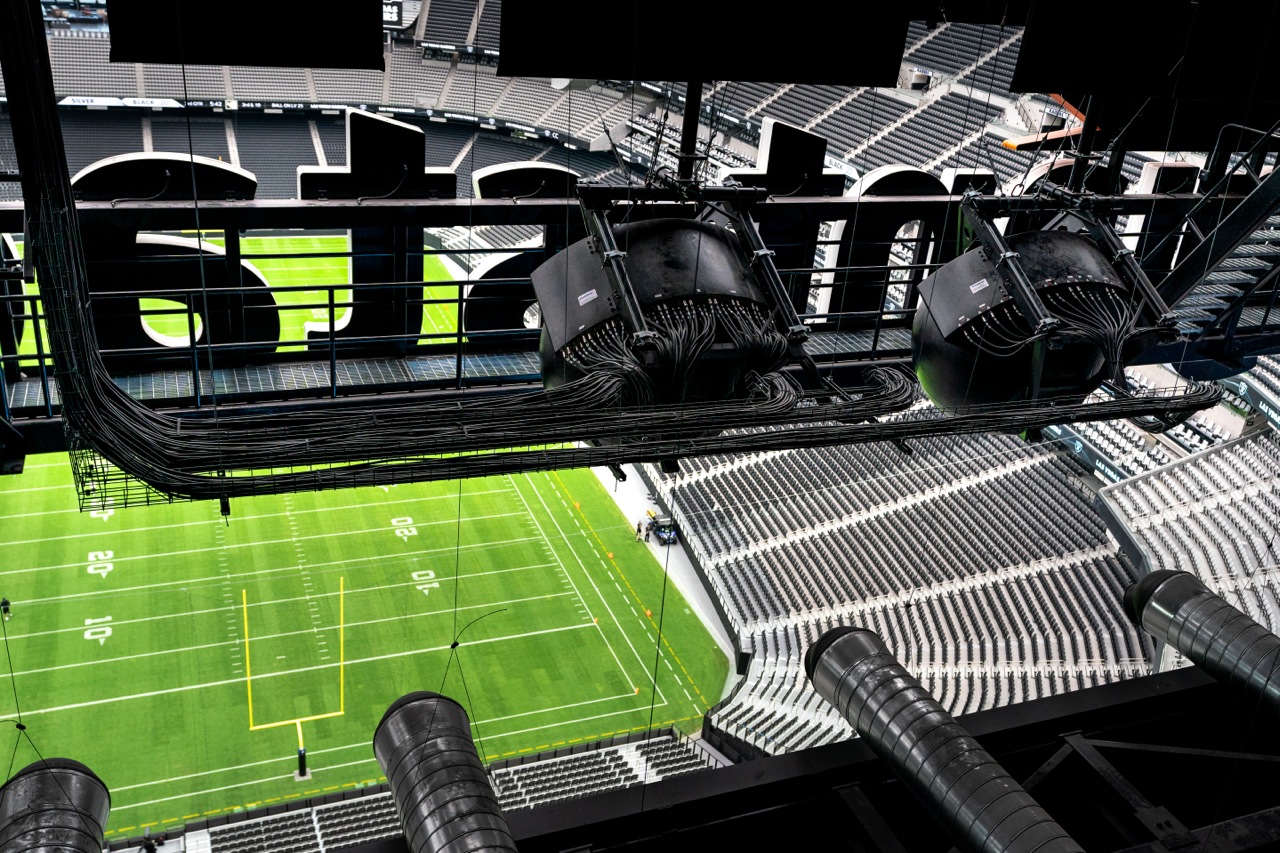

MatSing Lens antennas look down from the catwalk. Credit: Matt Aguirre/Las Vegas Raiders

Fast-forward to the plans that eventually took shape with the move of the team to Las Vegas, and for a change Pasco was able to start thinking about what that meant from a technology perspective. With his long tenure and relationships around the league, Pasco said he embarked on a several years-long “stadiums tour” of accompanying the team for road games, looking at what other teams had done at their venues.

“I kept a big notebook on what I liked, and what didn’t seem to work,” Pasco said. “I sat down with a lot of my counterparts and talked about what worked well, and what they had to spend time with. So I got a really good sense of what was possible.”

Wi-Fi 6 arrives just in time

One fortunate event for Allegiant Stadium’s wireless deployment was the 2019 arrival of equipment that supported the new Wi-Fi 6 standard, also known as 802.11ax. With its ability to support more connections, higher bandwidth and better power consumption for devices, Wi-Fi 6 is a great technology to start off with, Pasco said.

“We were very fortunate that Wi-Fi 6 was released just in time [to be deployed at Allegiant Stadium],” Pasco said. “The strength of 802.11ax will pay off in a highly dense stadium with big crowds.”

The Raiders’ choice of Cisco as a Wi-Fi provider wasn’t a complete given, even though Pasco said that the team has long been “a Cisco shop” for not just Wi-Fi but for core networking, IPTV and phones.

“We did look at Extreme [for the new build] but Cisco just has so many pieces of the stack,” Pasco said. “Things like inconsistencies between switch maker A and IPTV vendor B are a little less likely to happen. And they’ve done good things in so many buildings.”

Pasco also praised the Wi-Fi network design and deployment skills of technology integrator AmpThink, which used an under-seat deployment design for Wi-Fi APs in the main seating bowl. Overall, there are approximately 1,700 APs total throughout the venue.

“I am thrilled with the work AmpThink has done,” said Pasco, who admitted that as a network engineer, he had “never done” a full stadium design before.

“They [AmpThink] have built networks at more than 70 venues, so they came highly recommended,” Pasco said. “And meeting their leadership early on sold me pretty quickly.”

Part of what AmpThink brought to the stadium was a converged network design, where every connected device is part of the same network.

Innovation abounds in the DAS

If the Wi-Fi world is already moving forward with general availability of Wi-Fi 6 gear, the cellular side of the equation is in a much different place as carriers contemplate how to best move forward with their latest standard, 5G.

For venues currently adding or upgrading a DAS, the 5G question looms large. One of the hardest things about planning for 5G is that the main U.S. cellular carriers will all have different spectrum bands in use, making it hard to deploy a single “neutral host” DAS to support all the providers. Currently, all previous 5G deployments in stadiums have been single-carrier builds – but that won’t be the case in Allegiant Stadium, thanks to some new gear from JMA.

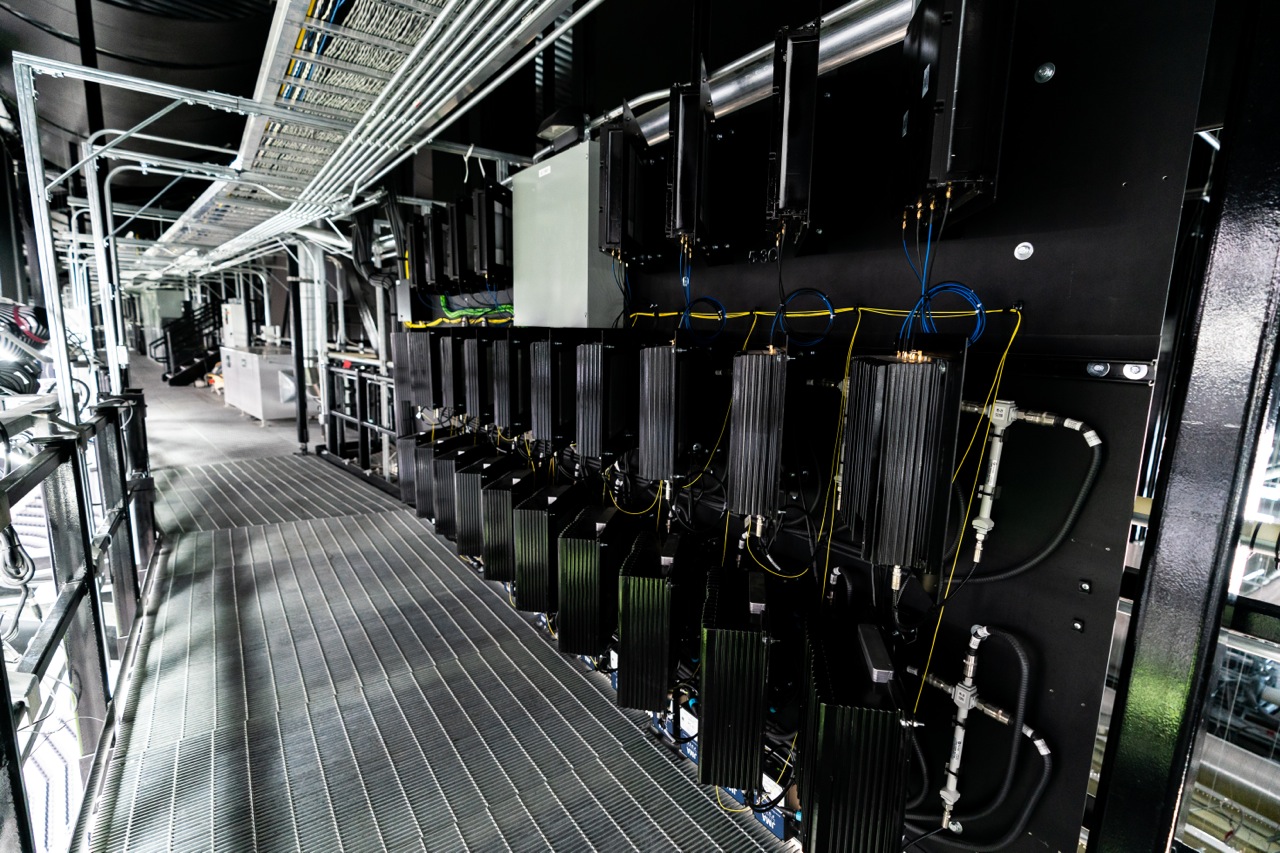

JMA DAS gear in the roof structure. Credit: Matt Aguirre/Las Vegas Raiders

Steve Dutto, president of DGP – which used JMA gear at many of its other stadium DAS installations, including the San Francisco 49ers’ Levi’s Stadium and most recently at the Texas Rangers’ new home, Globe Life Field – said the DAS deployed at Allegiant Stadium “is like no other” NFL-venue cellular network.

“By selecting JMA DAS equipment we were able to deploy a [5G standard] NR radio capable system from day one,” Dutto said. “This means that all carriers can deploy 5G low- and mid-band technology without any additional cost or changes to the DAS system.”

According to Dutto and JMA, the JMA TEKO DAS antennas cover all major licensed spectrum used, from 600MHz to 2500 MHz. and will provide ubiquitous coverage over the entire stadium.

“Carriers will be able to deploy their 4G technologies along with their low- and mid-band 5G technology over all of the stadium coverage area,” Dutto said. “No upgrades will be required. All carriers will need to do is provide their base radios in the headend.”

According to Todd Landry, corporate vice president, product and market strategy at JMA, the TEKO gear used at Allegiant Stadium “employs an industry unique nine-band split architecture, placing lower frequency bands in different radios than higher frequency bands.” This approach, Landry said, lets the stadium “optimize the density of higher band cells versus lower bands” while also reducing the total number of radios needed for low bands by half.

Landry said the JMA gear also has integrated support for the public safety FirstNet spectrum band, and is software programmable, allowing venue staff to “turn on” capabilities per carrier as needed, eliminating on-site visits to install additional radios or radio modules. According to DGP the DAS has 75 high-band zones and 44 low-band zones in the main seating bowl, with a total of 117 high- band and 86 low-band zones throughout the venue.

Adding in the MatSing antennas from above

One twist in the DAS buildout was the addition of 30 MatSing lens antennas to the cellular mix, a technology solution to potential coverage issues in some hard-to-reach areas of the seating bowl. According to Pasco the Raiders were trying to solve for a typical DAS issue – namely, how to best cover the premium seats closest to the field, which are the hardest to reach with a traditional top-down DAS antenna deployment.

“We looked at a hybrid approach, to use under-seat [DAS] antennas for the first 15 or 20 rows, but the cost was astronomical,” Pasco said. “We also heard that [an underseat deployment] may not have performed as well as we wanted.”

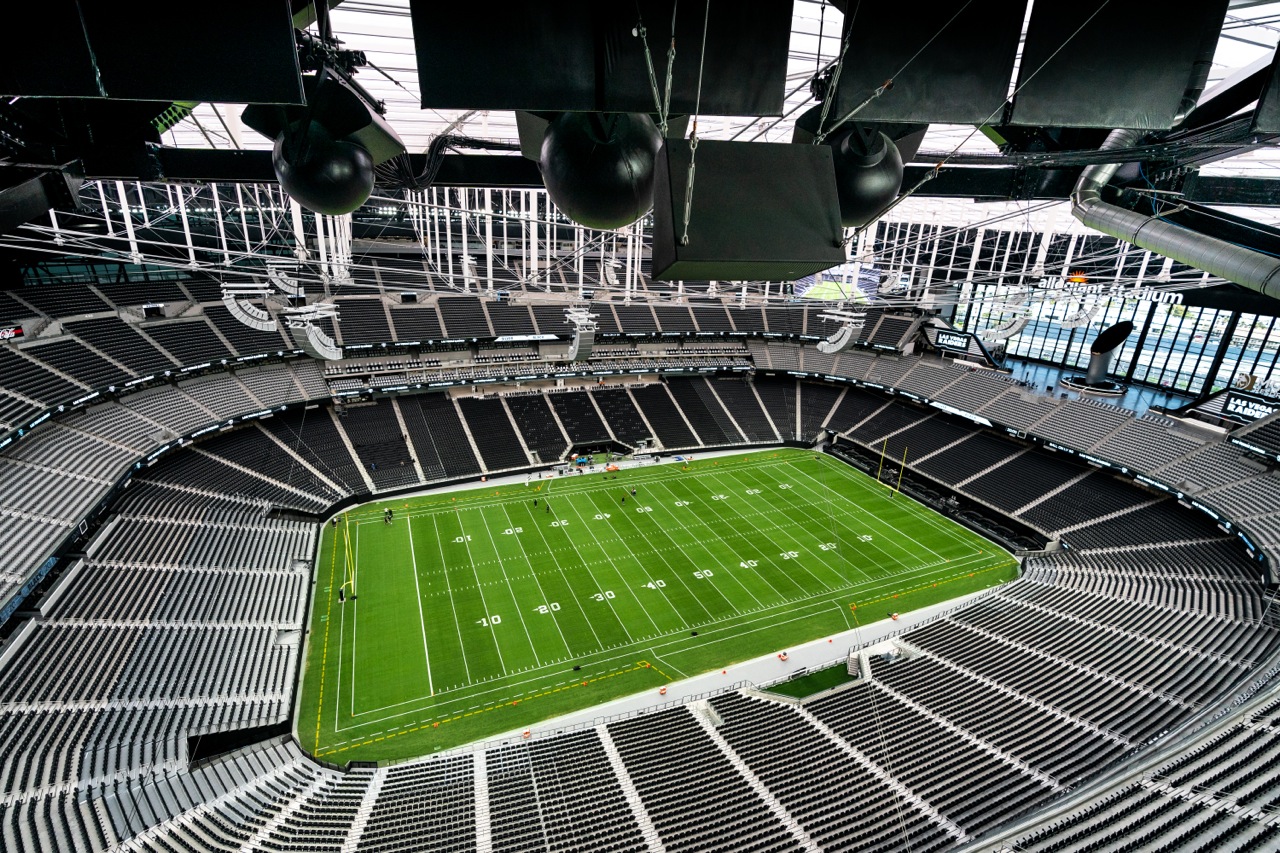

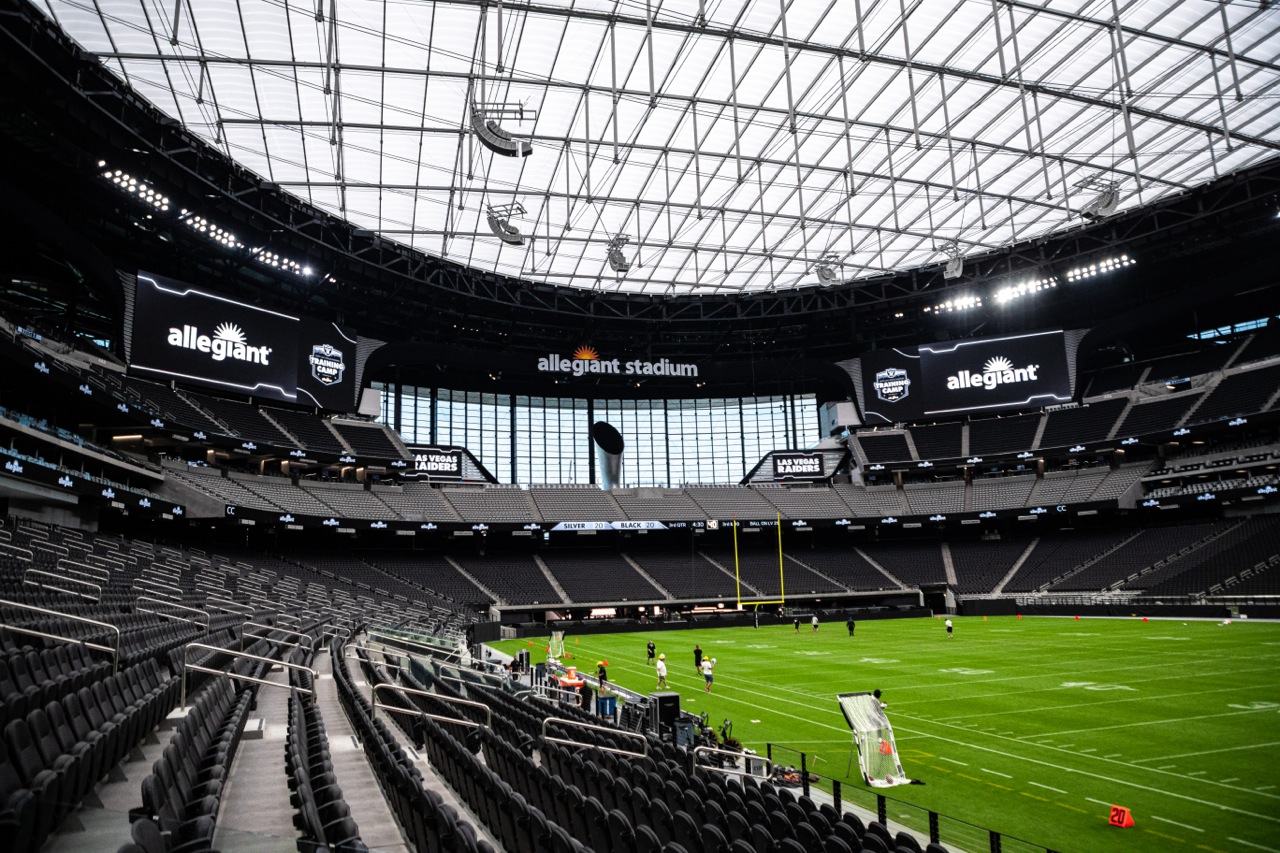

The roof structure provided a perfect mounting place for the MatSing Lens antennas. Credit: Matt Aguirre/Las Vegas Raiders

The MatSing antennas, which are ball-shaped and support greater distance between antenna and end-device, were already designed for use in the Allegiant Stadium “Peristyle” gathering area, where there is a large open space where fans are expected to gather – with a large top-down distance between the area and the struc- tures where antennas are mounted.

“I had heard about the full MatSing deployment at Amalie [Arena] and wondered if we could do that,” said Pasco. Fortunately for the Raiders, the architecture of the stadium, with a high ring supporting the transparent roof, turned out to be a perfect place to mount MatSing antennas, which use line-of-sight transmission to precisely target broadcast areas. For Pasco, a move toward more MatSings was a triple-play win, since it removed the need for other antennas from walkways and overhangs, was less costly than an under-seat network, and should prove to have better performance, if network models are correct.

“It is the perfect marriage of cost reduction, better performance and aesthetics,” said Pasco of the MatSing deployment. “We even painted them black, like little Black Holes,” Pasco said. “It’s one of the most innovative decisions we made.”

“We are excited to be part of the Allegiant Stadium network,” said MatSing CEO Bo Larsson. “It is a great venue to show the capability of MatSing Lens antennas.”

Supporting wireless takes a lot of wires

Behind all the wireless antenna technology in Allegiant Stadium – as well as behind the IPTV, security cameras and other communications needs – sits some 227 miles of optical fiber and another 1.5 million feet of copper cable, provided by CommScope.

A good balance of the 100 Gbps fiber connections are used to support the stadium’s DAS network, with the capacity built not just for current needs but for expected future demands as well. According to CommScope senior field applications engineer Greg Hinders the “spider web of single-mode fiber” includes multiple runs of 864-strand links, which break out in all directions to support all the networking needs.

For the cable connections to the Wi-Fi gear, CommScope’s design went with Cat 6A cable, which has double the capabilities and a longer reach than standard Cat 6.

“The new APs really require it [Cat 6A] so we went standard with Cat 6A throughout the building,” Hinders said.

A view from the stands. Credit: Michael Clemens/Las Vegas Raiders

And if the job wasn’t tough enough – limited construction space at the stadium required that CommScope and its distribution partner Anixter had to stage its network in an offsite warehouse – CommScope also had to make sure that exposed wiring was colored silver and black to match the stadium design and the team’s colors.

While single-mode fiber is usually colored yellow, Hinders is enough of a football fan to know that Pittsburgh Steelers colors wouldn’t fly in the Raiders’ home.

“It all had to be black and grey,” said Hinders. “Black and yellow isn’t good for the Raiders.”

The MatSing antennas also posed a challenge for CommScope, since each MatSing antenna requires 48 individual connections for all the radios in each device.

“It was [another] logistical challenge,” said Hinders. “But it was great to see [the entire network] all come to fruition. It’s nice to know we had a part in putting it all together.”

Providing enough backbone bandwidth

To ensure that Allegiant Stadium had enough backbone bandwidth to support all its communications needs, the Raiders turned to Cox Business/Hospitality Network, a partner with considerable telecom assets in the Las Vegas area.

Jady West, vice president of hospitality for Cox, noted that not only does Cox have experience in providing data services to high-demand venues (including State Farm Stadium in Glendale, Ariz., which routinely hosts big college games and the Super Bowl), it also has a wealth of resources in and around Las Vegas, providing services to the big casino hotels and the Las Vegas Convention Center.

With a 100 Gbps regional network, West said Cox is able to bring “quite a bit of power and flexibility” to the equation. Having supplied services to big events like CES at the LVCC, West said, “takes a specialized skill, and that’s what my team does. This is what we do.”

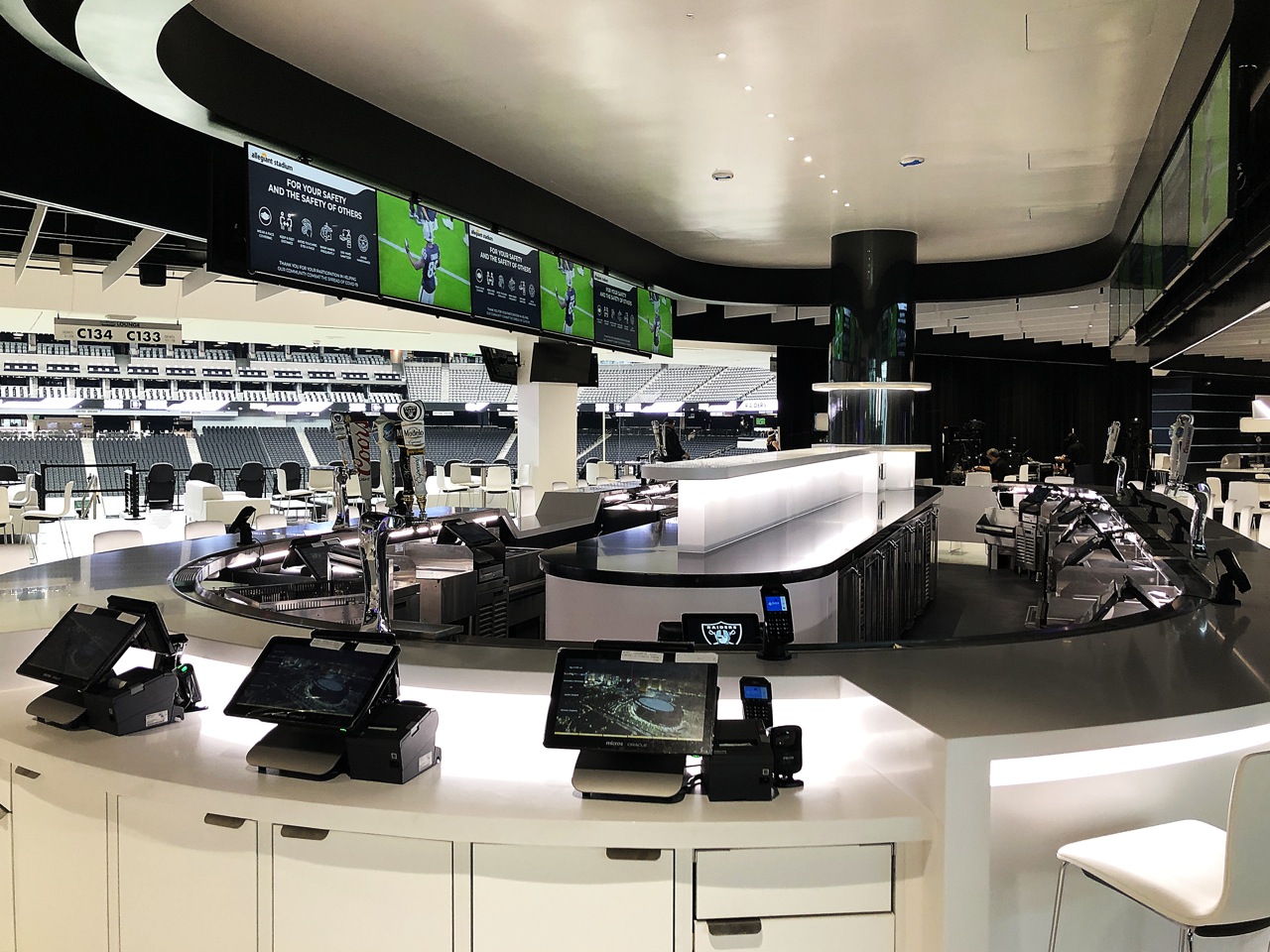

Display technology and POS gear at a concourse lounge. Credit: Dan Grimsley/AmpThink

Specifically for the Raiders, Cox built two 40-Gbps redundant pipes just to serve the needs of Allegiant Stadium. Additionally, Cox built a 10 Gbps metro Ethernet link between the stadium and the team’s headquarters and practice facility in nearby Henderson, Nev., a connection that Pasco said would be essential for stadium operations as well as the on-field football business.

“Both the video production staff and the football staff can now push information back and forth like we’re in the same building,” said Pasco, who gave high praise to Cox’s work. From a production side, crews at headquarters can create content for videoboards and displays, and have it at the stadium instantaneously; similarly, video from the stadium’s field of play or from practices can be shared back and forth as needed, in a private and real-time fashion.

West said Cox, which also provides game-day network support and a “NOC as a service” solution, knows that the data demands of the big-time events that will likely be held at Allegiant Stadium will only keep increasing, and it built its systems to support that growth.

“The most demanding events are things like CES, and NFL games,” West said. “This network is built for the future, to hold up for all those events.”

Videoboards to fit the design

Last but certainly not least in the technology arsenal at Allegiant Stadium are the Samsung videoboards. Above the south end zone, the largest board measures approximately 250 feet long by 49 feet high, according to Pasco. Two identical sized boards of 49 feet by 122 feet are in the corners of the north end zone. Including ribbon boards, Pasco said there is a total of 40,000 square feet of LED lights inside the seating bowl.

On the stadium’s exterior there is another large videoboard, a 275-foot mesh LED screen that fits in perfectly with the bright lights of the city’s famed Strip. Inside, the venue will also have approximately 2,400 TV screens for information and concessions, with all the systems controlled by the Cisco Vision display management system.

Filed Under: 4G LTE, 5G, AmpThink, Cisco, DAS, NFL, Samsung, Wi-Fi Tagged With: 4G LTE, Allegiant Stadium, AmpThink, Cisco, CommScope, Cox Business/Hospitality Network, DAS, DGP, JMA, Las Vegas Raiders, MatSing, Mobile Sports Report, NFL, Paul Kapustka, Stadium Wi-Fi, Wi-Fi

New Report: Inside the technology at SoFi Stadium and Allegiant Stadium

October 14, 2020 by Paul Kapustka Leave a Comment

Stadium Tech Report is pleased to announce our FALL 2020 issue, with profiles of two of the most innovative new venues to open – SoFi Stadium in Los Angeles and Allegiant Stadium in Las Vegas! While neither venue will host fans this NFL season, our profiles will dig in-depth to tell you about the technologies in place to make these stadiums the most advanced when it comes to the game-day experience. We also have a substantive news analysis story about how venues and product and service suppliers are planning to tackle two of the biggest venue issues when it comes to hosting fans during a pandemic – venue entry and concessions operations.

We’d like to take a quick moment to thank our sponsors, which for this issue include Corning, Boingo, MatSing, Cox Business/Hospitality Network, Comcast Business, American Tower, CommScope, AmpThink and ExteNet Systems. Their generous sponsorship makes it possible for us to offer this content free of charge to our readers. We’d also like to welcome readers from the Inside Towers community, who may have found their way here via our ongoing partnership with the excellent publication Inside Towers. We’d also like to thank the SEAT community for your continued interest and support.

We would like to take a moment here and give some special thanks to the people at SoFi Stadium and at Allegiant Stadium, and to all the other subjects we interviewed for this issue, for their extra help when it came to providing interview time and especially photos to help bring our publications to life. We quite literally couldn’t have done this without your help, and we look forward to visiting venues again in the near future!

Filed Under: 4G LTE, 5G, AmpThink, Appetize, AT&T, Cisco, Comcast, Corning, coronavirus, DAS, Denver Broncos, Denver Broncos, MLS, MSR Guides, NFL, Samsung, Soccer, Super Bowl, VenueNext, Verizon Wireless, Wi-Fi Tagged With: 4G LTE, Alleigant Stadium, AmpThink, Appetize, AT&T, Banc of California Stadium, CenturyLink, Christian Lau, Cisco, Cisco Vision, CommScope, Cox Business/Hospitality Network, DAS, DGP, JMA, LAFC, Las Vegas Raiders, Los Angeles Chargers, Los Angeles Rams, MatSing, Miami Dolphins, Mobile Sports Report, NFL, ParkHub, Paul Kapustka, Samsung, SoFi Stadium, Stadium Wi-Fi, VenueNext, Verizon Wireless, WaitTime, Wi-Fi

Levi’s Stadium sees its second-highest Wi-Fi mark with nearly 6 TB at Niners-Vikings playoff game

January 17, 2020 by Paul Kapustka Leave a Comment

The video board shows team captains assembling before kickoff at last week’s playoff game between the Vikings and Niners at Levi’s Stadium. Credit: Brian Nitenson, MSR (click on any picture for a larger image)

The first NFL playoff game at Levi’s Stadium last Sunday saw the second-highest Wi-Fi data usage mark for the venue, with 5.95 terabytes used, according to figures provided by the San Francisco 49ers.

While that mark may eventually be eclipsed at this weekend’s NFL Championship game against the visiting Green Bay Packers, the packed house of 71,649 fans who witnessed the Niners’ 27-10 victory over the visiting Minnesota Vikings spent a lot of time using the stadium’s Wi-Fi network, with 21,195 unique connections recorded by the Niners. The peak concurrent connection number was 15,075, according to the Niners.

Of all the big events at Levi’s Stadium since its opening in 2014, only Super Bowl 50 on Feb. 7, 2016, saw more Wi-Fi used by fans, with 10.1 TB used that day. Last January, a crowd of 74,814 attending the college football playoff championship game between Alabama and Clemson used 5.1 TB of Wi-Fi data, the previous No. 2 mark at Levi’s. Other big-event totals included 4.5 TB used during Wrestlemania 31 on March 29, 2015 (with 76,976 fans in attendance).

DAS also strong

Speedtest of the DAS network during Sunday’s game. Credit: Keith Newman, MSR

While Levi’s Stadium still has the original number of approximately 1,300 Aruba Wi-Fi APs as the opening-day design, the cellular distributed antenna network (DAS) has undergone additions and improvements almost since the venue opened, including a significant upgrade from Verizon ahead of Super Bowl 50. Though we don’t have an exact count yet of the total of DAS antennas in the stadium, from visits over the past few years MSR has seen more DAS antennas each time we’ve visited, no surprise since the bandwidth demands from fans continue to increase.

MSR contributing editor Keith Newman was at Sunday’s game and got strong DAS speed tests on the main concourse and on the stadium’s top levels, in the 30 Mbps range each time. On the press box level on Levi’s Stadium’s west side, he got a mark of 116 Mbps on the download and 33.2 Mbps on the upload.

Below, some more photos from our field team at Sunday’s game. If you are at the championship game this week, send us some pix and speedtests!

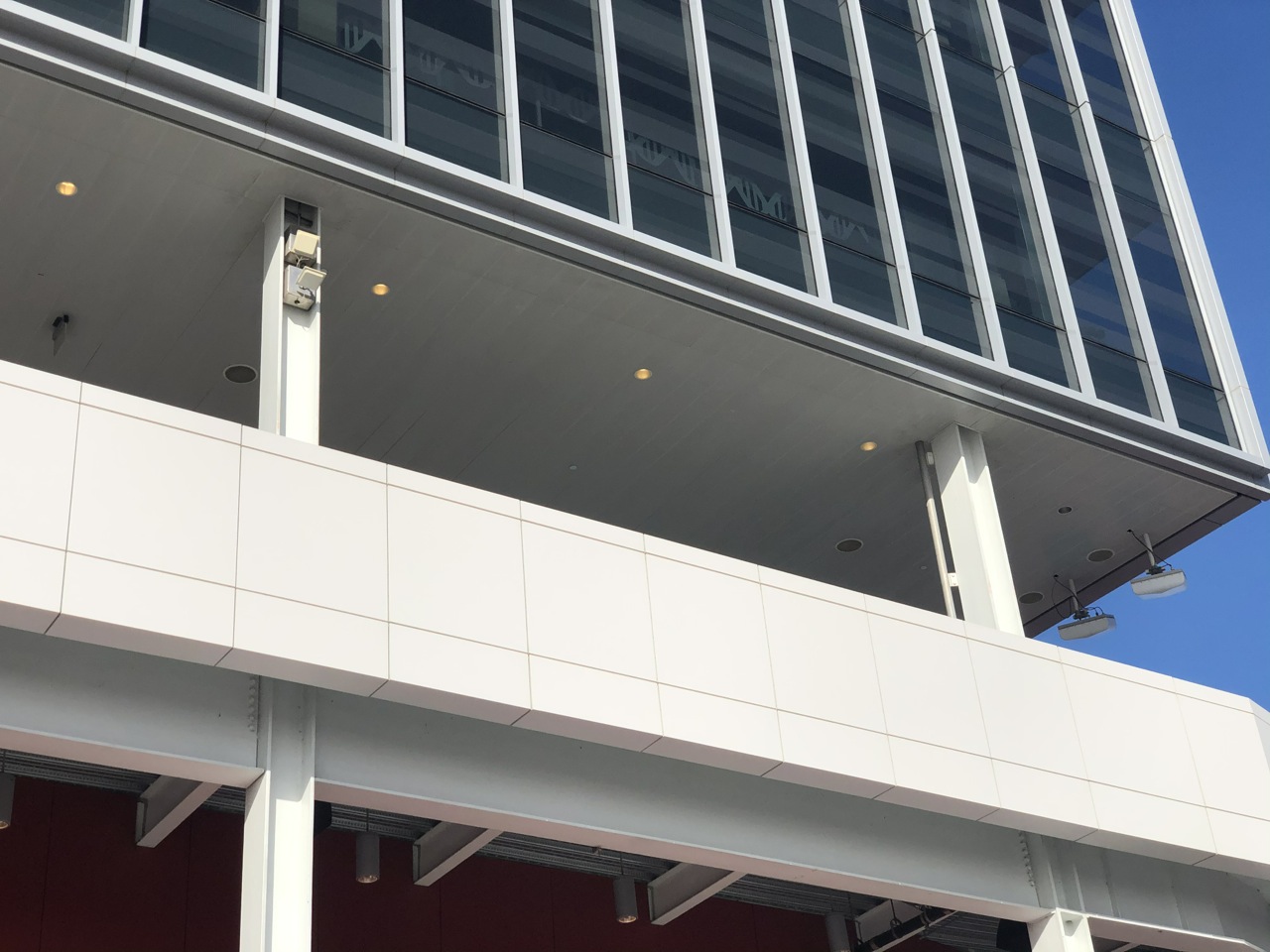

Wi-Fi and DAS antennas visible on the stadium structures. Credit: Keith Newman, MSR

Niners fans getting their tailgate on before the game. Credit: Brian Nitenson, MSR

Filed Under: 4G LTE, Aruba, Comcast, DAS, Hewlett-Packard, Levi's Stadium, NFL, Super Bowl, Verizon Wireless, Wi-Fi Tagged With: 4G LTE, Aruba, College Football Playoff championship, DAS, DGP, Minnesota Vikings, Mobile Sports Report, NFL, Paul Kapustka, San Francisco 49ers, Stadium Wi-Fi, Super Bowl, Verizon, Verizon Wireless, Wi-Fi, Wrestlemania 31

Cubs adding Wi-Fi to Wrigley Field wireless mix

October 4, 2018 by Paul Kapustka Leave a Comment

Wi-Fi APs can be seen on the overhang above Wrigley Field’s upper deck seating. Credit all photos: Paul Kapustka, MSR (click on any picture for a larger image)

After waiting 108 years for a championship, Cubs fans are getting much more from their team these days, especially when it comes to technology upgrades at Wrigley Field. Recent years have seen a complete renovation of the venerable bleachers, including big video screens in both left and right field, as well as a full-stadium distributed antenna system (DAS) for enhanced celluar connectivity that went live at the start of this year.

And while the Cubs were eliminated from the playoffs this week in a Wild Card loss to the Colorado Rockies, the Cubs in the offseason will continue this summer’s process of adding Wi-Fi everywhere they can inside the Friendly Confines, after more planned offseason stadium construction will force the club to move some equipment installed earlier this year.

While some Wi-Fi APs were live in the upper deck seating section as well as mounted on overhangs covering the stadium’s terrace-level seats this season, a planned installation of under-seat Wi-Fi AP locations is currently on hold, as the Cubs continue to evaluate how best to proceed for some of the tougher-to-cover seating areas. Wi-Fi coverage is already operative, however, for back-of-house operations, as well as in fan-facing areas on the outdoor Gallagher Plaza and the Zachary Hotel next door.

Continuing challenges with construction

Editor’s note: This profile is from our latest STADIUM TECH REPORT, an in-depth look at successful deployments of stadium technology. Included with this report is a profile of Wi-Fi at Nebraska’s Memorial Stadium, a sneak peek at Milwaukee’s new Fiserv Forum, and a profile of the new DAS at StubHub Center! DOWNLOAD YOUR FREE COPY now!

First announced in 2015, the plan to bring both DAS and Wi-Fi to Wrigley has been challenged almost since its inception by the team’s ambitious plan to renovate many parts of a stadium that was originally constructed in 1914. The multi-phase physical construction project included the bleacher expansion, the creation of a hotel, office building and park on the stadium’s west side, new club spaces and (still to come) expanded suites and an upper-deck concourse. Of course the entire plan got immediately sidetracked by the team’s historic run to the 2016 World Series title.

Wi-Fi antennas pointed forward and back to cover upper seating areas

While having construction delayed by winning your first crown in over 100 years is not a bad problem to have, the team’s string of extended seasons (the Cubs have made it to the NLCS the past three years, meaning baseball deep into October) has played continual havoc with the renovation plans, since winter in Chicago isn’t often friendly to construction activities. Originally scheduled to appear in 2017, the DAS wasn’t built until this past offseason, and even though it is running well now (our most recent visit saw speedtests in many locations well into the 20+ Mbps range for both download and upload) a good portion of the DAS antennas will also have to be relocated this offseason because of more construction plans.

The Wi-Fi network, which the Cubs are building with gear from Extreme Networks, felt even more of the pain from this past year’s main construction project, which saw the entire lower bowl of Wrigley get removed so crews could dig about 60 feet deep to build under-stand club areas, one of which opened for this season. Those clubs, including more that are scheduled to open for the 2019 season, sit directly below the seating area that was scheduled to get under-seat Wi-Fi deployments, further complicating and delaying the installation.

For the lower main seating bowl and for the bleachers, the problem for Wi-Fi in those seating areas is the complete lack of overhead structures, or of any aisles with railings, to mount antennas. While DAS antennas are able to cover those regions from above and behind, a good Wi-Fi design would need an under-seat deployment, which is what the Cubs and Extreme had planned for.

Andrew McIntyre, vice president of technology for the Chicago Cubs, talked with MSR during a late-August visit and said that while he thinks the club will eventually have to do some amount of under-seat antenna locations — if not for Wi-Fi, then eventually for 5G cellular support — the plan from earlier this year to put Wi-Fi under-seat during this summer is shelved for the time being.

“We just have to make sure the structural integrity [of the lower seating slab] is not challenged,” said McIntyre. Since a good part of any under-seat Wi-Fi deployment in the lower bowl would require work above the club-space ceilings, it would take extra time that’s simply not available between baseball games and other events like concerts.

Having to move gear one more time

In the upper deck seating sections at Wrigley there are no such impediments to Wi-Fi AP location, with many easy mounting points up in the roof infrastructure. With a wide concourse in the middle of the upper and lower sections, many APs required only a scissor lift for installation, McIntyre said.

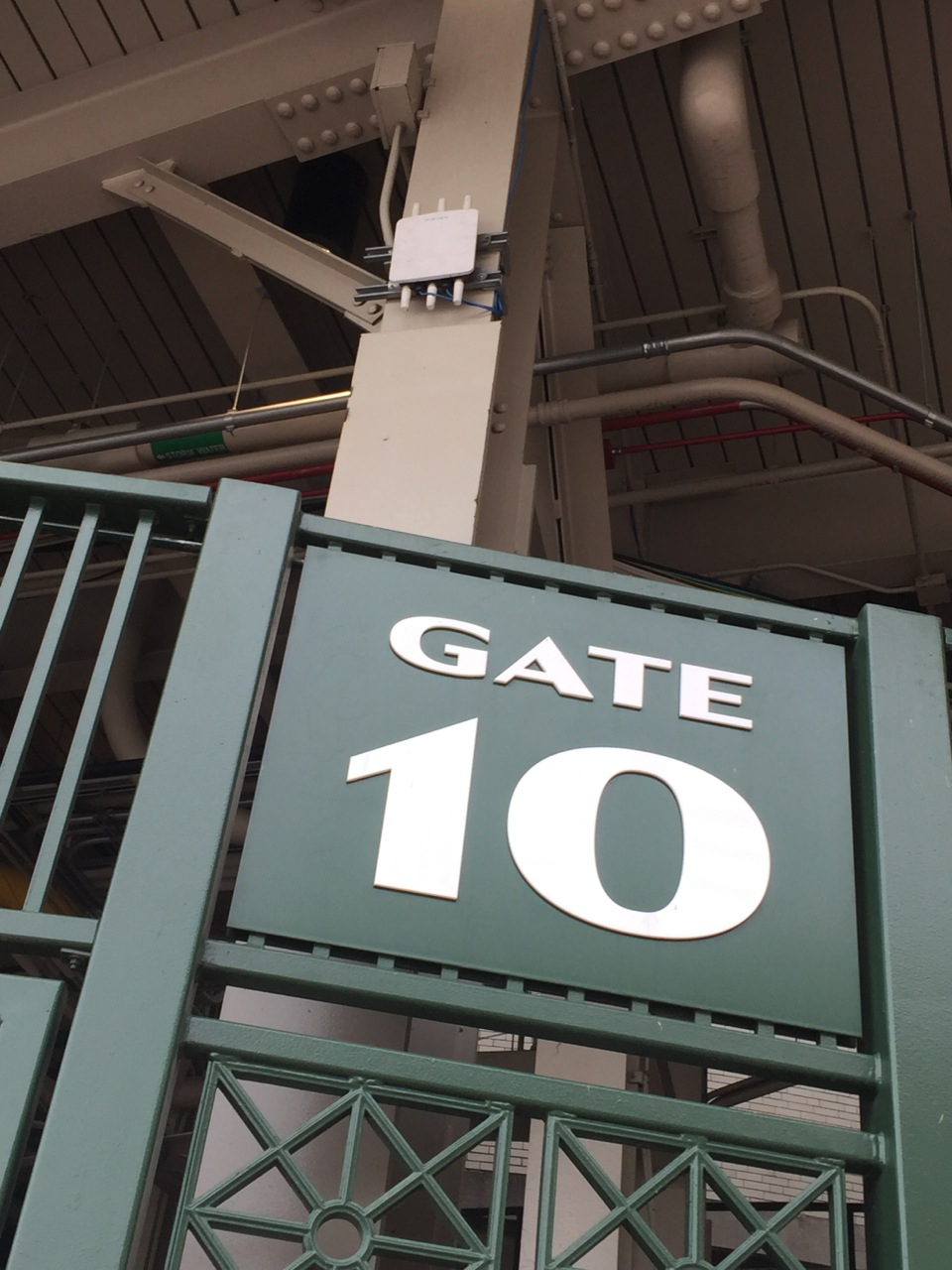

Wi-Fi AP covering an entry gate

The easily viewable APs have their accompanying antennas tilted either forward or backward to cover the two separate seating sections. Even though McIntyre and the Cubs are purposely throttling the unannounced Wi-Fi network’s speeds to a top mark of around 7.5 Mbps for both download and upload until the network is complete, MSR was able to get strong Wi-Fi responses everywhere we walked in the upper deck, as well as in the lower terrace seating areas, which are below the upper deck sections.

On the terrace level there are basically three rows of DAS and Wi-Fi gear, one in the back along the rear concourse, one in the middle of the roof to cover most of the seating and another out at the edge toward the field, to cover seats below there. Unfortunately, many of the devices in this area for both networks will need to be removed and replaced this upcoming offseason when the final phase of Wrigley’s renovation will see the premium suite areas extended further back, which will require construction work on their floors, where the antennas are currently mounted.

Tradeoffs part of playing in an icon

Like any networking pro, McIntyre would prefer to see his projects completed as thought out, but he is also a realist who knows that trying to do anything architecturally inside a beloved historical icon will eventually involve tradeoffs.

Take the center part of the right-field bleachers, which right now is somewhat less covered by the DAS simply because there’s no place on the back wall to mount antennas. Since anything placed there would be in view of passers-by on Sheffield Avenue, McIntyre said due to historic-building regulations the Cubs would need to ask for permission to build any new structures.

“It’s a never-ending challenge, and we fight as hard as we can [to get technology deployed],” McIntyre said. On the topic of incomplete Wi-Fi coverage, he noted that the DAS was designed to cover “100 percent” of fan connectivity needs, with the Wi-Fi being a complementary service.

At the very least, the new network means that more fans will have an easier time connecting in whatever way they need to, while enjoying baseball at one of the world’s most beloved venues.

“In the end, it’s all about delivering the best possible experience for fans,” said McIntyre.

Night game at the world’s best ballpark

Filed Under: 4G LTE, Baseball, Chicago Cubs, DAS, Extreme Networks, Major League Baseball, Wi-Fi Tagged With: 4G LTE, Chicago Cubs, DAS, DGP, Extreme Networks, MLB, Mobile Sports Report, Paul Kapustka, Stadium Wi-Fi, Wi-Fi, Wrigley Field

Connect the DAS: Enhanced cellular finally arrives at Wrigley Field

July 12, 2018 by Paul Kapustka Leave a Comment

Cubs VP of IT Andrew McIntyre looks up at some new DAS antenna placements in the main level concourse. Credit all photos: Paul Kapustka, MSR (click on any picture for a larger image)

When it comes to sports fans and their beloved stadiums, change is sometimes hard to take, especially at historic venues like the Chicago Cubs’ beloved Wrigley Field.

The last ballpark in the major leagues to get lights (in 1988), fans of the iconic Wrigley with its ivy-covered outfield walls put up some fierce resistance to some of the latest changes brought to the ballpark by the team’s latest owners, the Ricketts family, ove the past few years. An expansion of the bleacher seats, some new video boards behind the stands in the outfield and construction of a hotel and office building adjacent to the stadium all had their naysayers, some of whom would still prefer the old to anything new.

But this season, Wrigley is finally unveiling a part of its renovation that everyone can get behind — better cellular connectivity inside the park thanks to a new neutral-host distributed antenna system (DAS) built by DAS Group Professionals (DGP) for the Cubs. Delayed a couple years from its originally planned deployment due to the Cubs’ World Series title run in 2016, the new system has contracts with all four of the major U.S. wireless carriers, and should help fans share more memories from the Friendly Confines in the seasons to come.

Success on the field makes waiting OK

Editor’s note: This profile is from our latest STADIUM TECH REPORT, an in-depth look at successful deployments of stadium technology. Included with this report is a profile of a new MatSing ball DAS deployment at Amalie Arena, a new under-seat DAS deployment for the San Francisco Giants at AT&T Park, and a look at the networks inside the new Banc of California Stadium in Los Angeles! DOWNLOAD YOUR FREE COPY now!

First announced in 2015, the plan to bring the new DAS as well as a new Wi-Fi network to Wrigley was pushed back until this season, mainly because of the Cubs’ new-found success on the field. In addition to the World Series title in 2016 — as everyone knows, the Cubs’ first in 108 years — the Cubs also went deep into the postseason in both 2015 and 2017, reaching the NLCS in both those years. As the extended seasons pushed back all kinds of renovation construction schedules, the arrival of the new connectivity options was pushed back a season longer than expected — a delay that was felt but perhaps not minded all too much by the celebrating Cubs fans.

DAS antennas visible near tops of stanchions in lower seating bowl

Since deployment of the DAS was (mostly) fairly straightforward — the DGP deployment uses entirely overhead and side-structure antenna placements, thanks to Wrigley’s multiple overhangs — it was finished in time for opening day. The Wi-Fi network, however, will be rolled out as the season progresses, mainly due to the need to place APs under seats in the lower seating sections.

Much of the engineering to get both systems inside the stadium faced more than the regular share of stadium conflicts, as this past offseason saw the Cubs pull out almost all the lower-bowl seats and dig 60 feet down into the dirt to clear room for some under-seat club areas, one of which is already open. Even though the DAS network wasn’t powered up until about a week before the season’s first pitch, deadlines were met and the new celluar system was ready for opening day.

“We definitely put scheduling and timing to the test, but we got it done,” said Andrew McIntyre, vice president of technology for the Chicago Cubs. “By the All-Star break, we should have both systems online,” McIntyre said.

The DAS system deployed by DGP uses JMA equipment, just like DGP’s other big-stadium DAS deployments at the San Francisco 49ers’ Levi’s Stadium and the Sacramento Kings’ Golden 1 Center. Steve Dutto, president of DGP, acknowledged the challenge of the Wrigley buildout, including one instance where DGP technicians needed to set up scaffolding to mount antennas but couldn’t because instead of a concrete floor there was a 60-foot hole in the ground.

“We worked around all that and got it done,” said Dutto.

New club spaces get new flat antennas

Mobile Sports Report traveled to Chicago for a mid-April visit, hoping to get some sense of the new network’s performance on a full-stadium game day. Instead, we got a lonely and chilly tour when sub-freezing temperatures caused that day’s game to be canceled. One positive was that with empty stands, it was easier to get around and see all the DAS antenna placements.

New flat-panel DAS antenna blends nicely in club space.

The first part of our tour was a trip underground to the new 1914 Club (for the year Wrigley opened) that sits directly under the seats right behind home plate. With the feel of sports bar-meets-speakeasy, the classy premium-seat space has great connectivity even while underground, thanks in part to a new flat-panel disc-shaped omnidirectional DAS antenna from Laird Technologies that DGP used in both indoor and outdoor placements.

With nobody in the club, we got an off-the-scale speedtest of 139 Mbps down and 46.7 Mbps up, proof on one level that the system is ready to go. Since it was freezing outside (did we mention it was cold?) MSR didn’t stop to take our gloves off to get many more tests, but we did get marks in the high 30 to high 40 Mbps range pretty much anywhere we did stop, including the upper decks and the bleachers. Even out in the middle of the adjacent plaza (where the Cubs’ networks are designed to cover) we got a DAS speed mark of 38.2 Mbps / 44.0 Mbps.

“The new DAS is much more higher performance grade than in the past,” McIntyre said.

The premium-seating club spaces, which were previously nonexistent at Wrigley, will expand next year when the Cubs finish out two more underground spaces, along each base line. According to McIntyre fans in those clubs will be able to watch players using the underground batting tunnels to tune their swings mid-game.

The last phase of the current Wrigley renovations will also see the addition of some more open gathering and club areas on the upper deck level, including party porches on the outside of the stadium walls overlooking the plaza (now called Gallagher Way under a sponsor-naming deal with the Illinois-based insurance brokerage). Gallagher Way, which hosted an outdoor ice rink in the winter, is set to hold concerts and other gatherings like movie nights this summer.

Old overhangs perfect for new technology

Sometimes in stadium wireless retrofits, you get lucky and the old stuff blends pretty well with the new. Take Wrigley Field’s classic metal-and-wood overhangs, which provide shade and rain cover for fans on the lower back and upper decks. According to DGP vice president of engineering Derek Cotton, getting DAS antennas in the right spots for a good signal there was half easy, half hard.

On the top levels, DGP was able to install the JMA gear out where it could offer the best connection — at the edge of the roofs, pointing backward toward the stands. With aesthetics a top concern at Wrigley, the roofs were a perfect place to “hide” some of the 420 total antennas in the deployment.

Green-painted DAS antennas point toward stands from back of bleachers club area

But on the lower-level roof, DGP and the Cubs had a concession to make that will be fixed during the upcoming offseason. Because of the deep pits dug into the box seat and field level, Cotton said DGP couldn’t get a scaffolding set to reach the outer parts of the lower roof — so instead DGP put those antennas in toward the backs of the roofs, and will move them out to the edges this winter. Some other antennas installed this year will have to be taken out and replaced while the rooftop party decks get built; and by next year the Cubs hope to have all the marooned gear from an AT&T Wi-Fi deployment from 2012 removed — but if you have sharp eyes this summer you can spot some of the old “Pringles can” Wi-Fi radios still nestled up in the rafters.

‘Creativity’ needed for bleachers

If DAS deployment in the main seats at Wrigley was fairly straightforward, for the venue’s unique and famous bleacher seating DGP’s Cotton said “some creativity was needed” to find places to mount antennas.

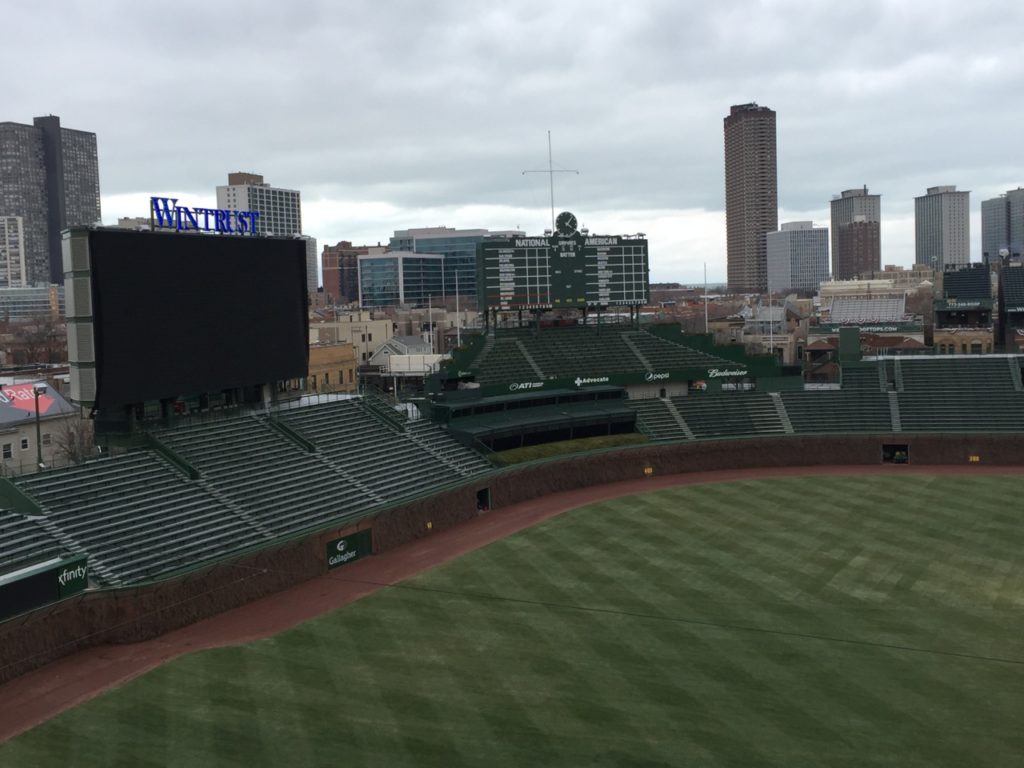

With no overhead structure and only the historic, manually operated scoreboard in the back, Wrigley’s bleacher seating now has DAS coverage from a wide array of antenna placements that took use of just about every kind of mounting area available. Some gear hangs from the back of a sponsor’s sign in left field; other antennas are tucked underneath the bottom of the scoreboard, pointing out from a small club area there; and still others are concealed in the tall grass of the planters that go up the sides of the centerfield seating section, just next to the poles that carry the Cubs’ World Championship flags from 1907, 1908, and most recently, 2016.

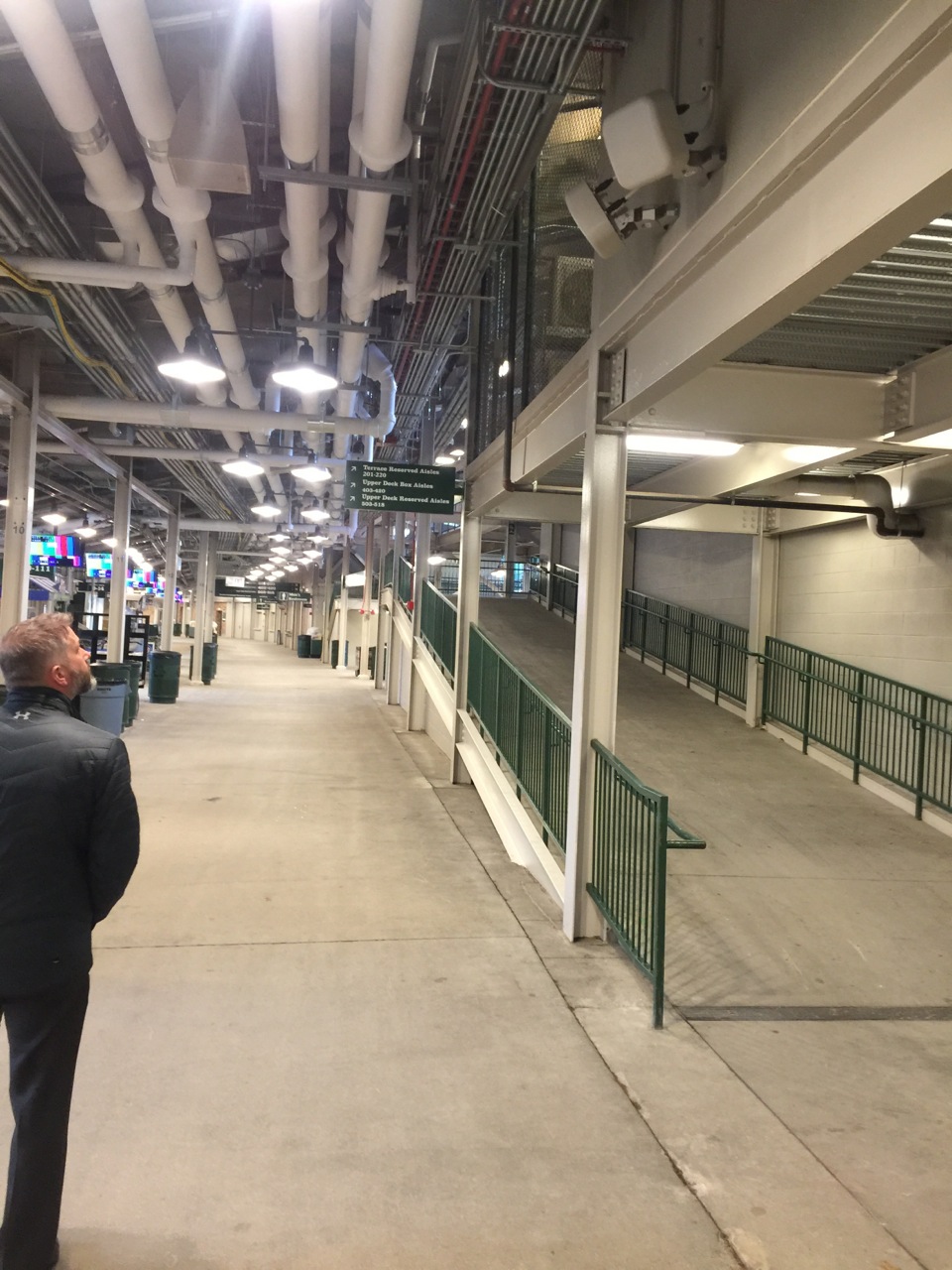

Other more normal antenna placements are found around the back side of the bleachers, where recent renovations added a concessions area and more stairways.

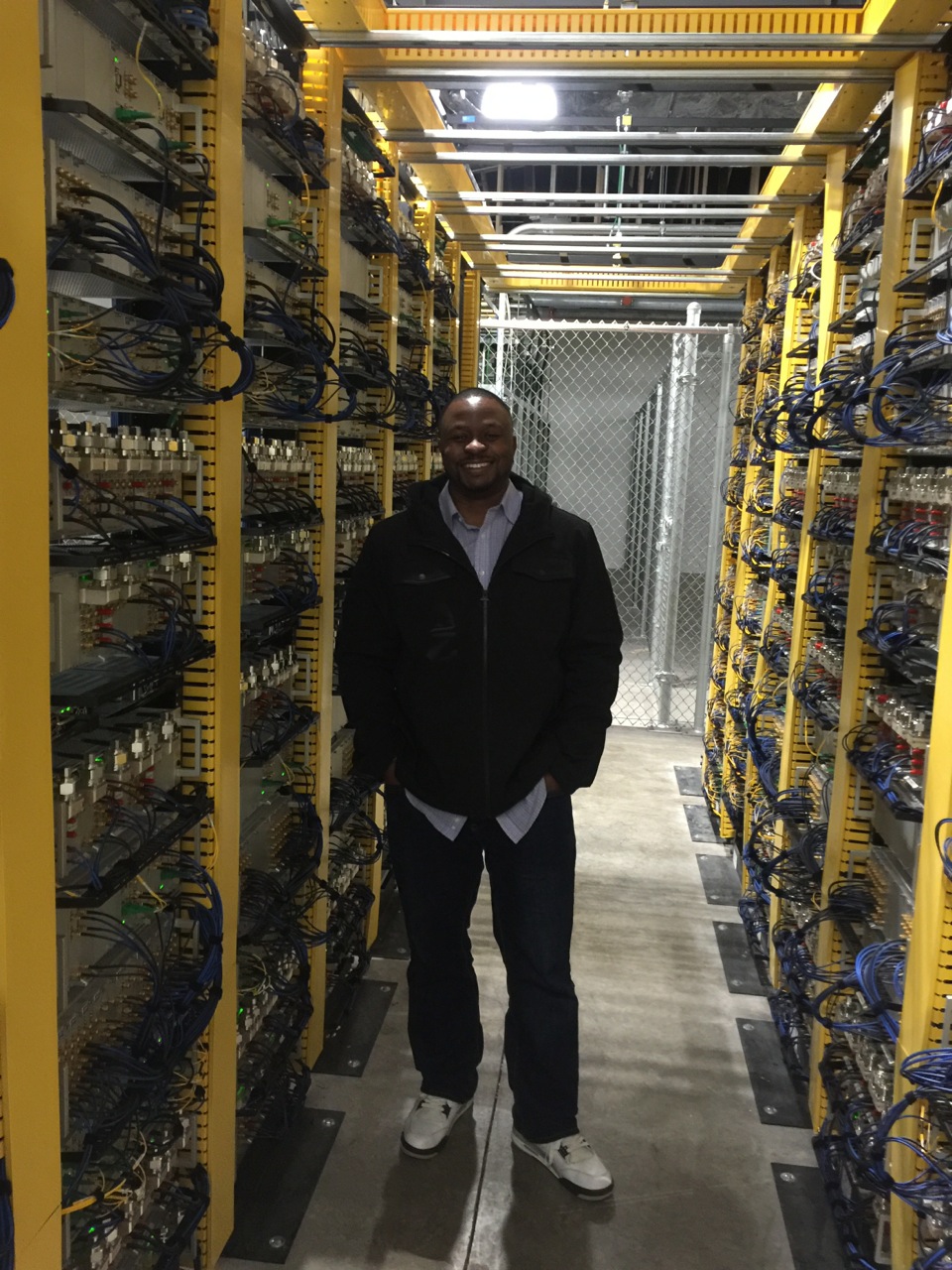

DGP’s Derek Cotton inside the Wrigley head end room

Moving outside the park to the plaza, artistic concealment continues with antennas hidden on light poles that surround the triangular plot of lawn. According to McIntyre, the club’s wireless coverage extends across Clark Street to the new Hotel Zachary, named for Wrigley Field’s original architect, Zachary Taylor Davis.

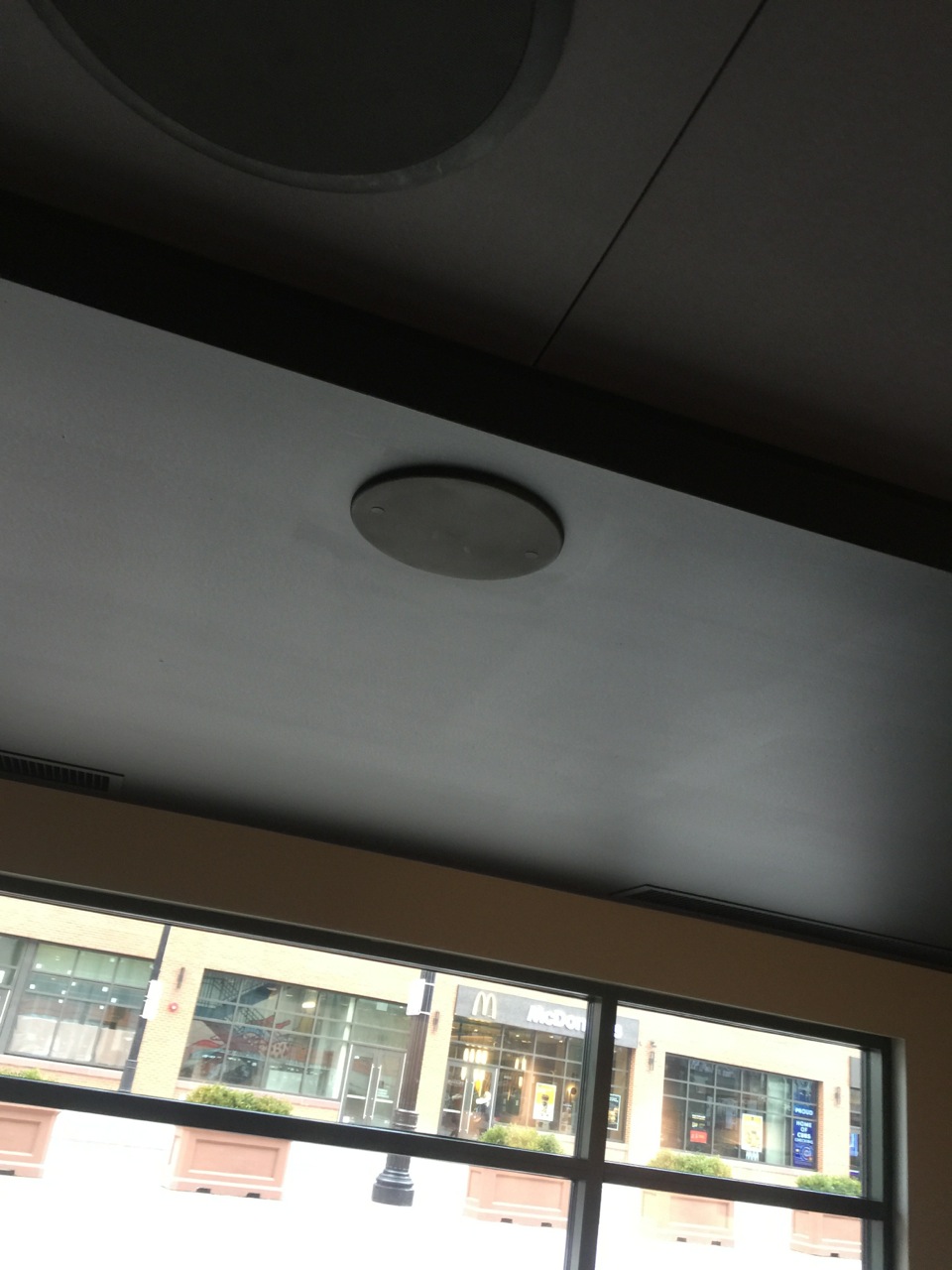

The hotel, which has retail shops on the street level — including a McDonald’s franchise that replaces a standalone McDonald’s that used to sit in the parking lot where the plaza now stands — has DAS coverage on all floors, with Wi-Fi planned for public spaces on the first floor and second floor, where the main lobby and lobby bar reside. In the lobby bar comfortable couches provide a great place to look over the plaza and at Wrigley; and in fact the Extreme Networks Wi-Fi gear visible on the ceilings is already operative there, though purposely limited in throughput to 7.5 Mbps up and down for now.

Most of all the wiring for the new networks comes together in a small brick headend building about a block north on Clark, behind the Wrigleyville hot dog stand. Unless you knew what was inside, you’d be hard pressed to guess why there are huge strands of red, white and blue cabling coming through one wall. Just before the start of the season, the Cubs announced a deal with Comcast Business that will see a “XfinityWiFi@Wrigley” label on the Wrigley Wi-Fi SSID. According to McIntyre Comcast will bring in twin 10-Gbps pipes to power the Wrigley Wi-Fi network.

When the Wi-Fi network comes online later this season, there will be even less of a reason to believe there will be any more grumbling about connectivity at the Friendly Confines. The new era starts with the DAS deployed by DGP, which was picked by McIntyre and the Cubs several years ago, after hearing of DGP’s deployments at Levi’s Stadium and over face-to-face meetings at the SEAT Conference.

And while Cubs fans didn’t have to wait for new wireless as long as they did for a world championship, they can now start enjoying the ability to connect to the world outside the ivy.

“When it’s fully done our fans will have a real ability to share, in a modern way, from one of the most iconic and historic venues,” McIntyre said. “It’s a whole new world.”

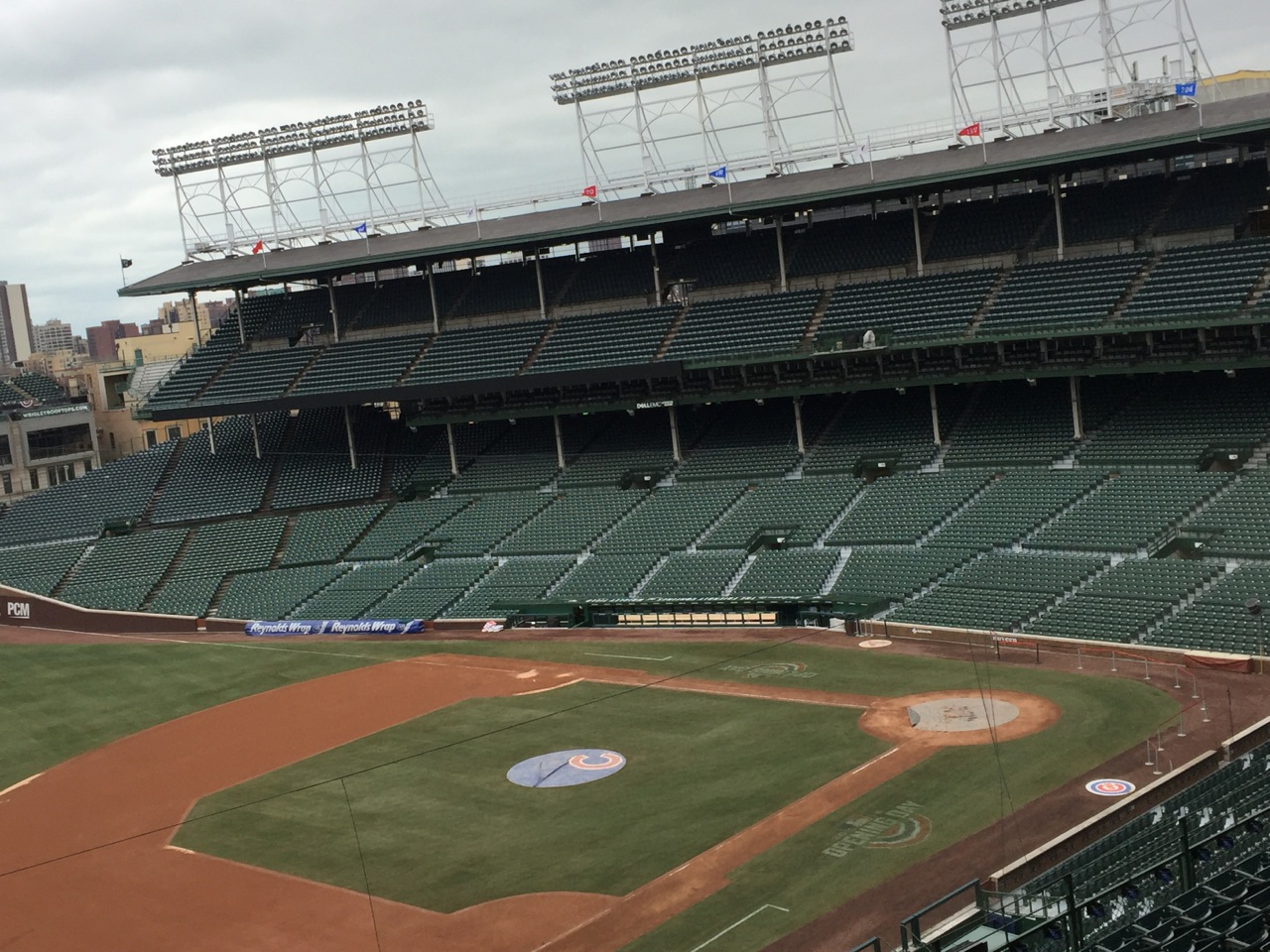

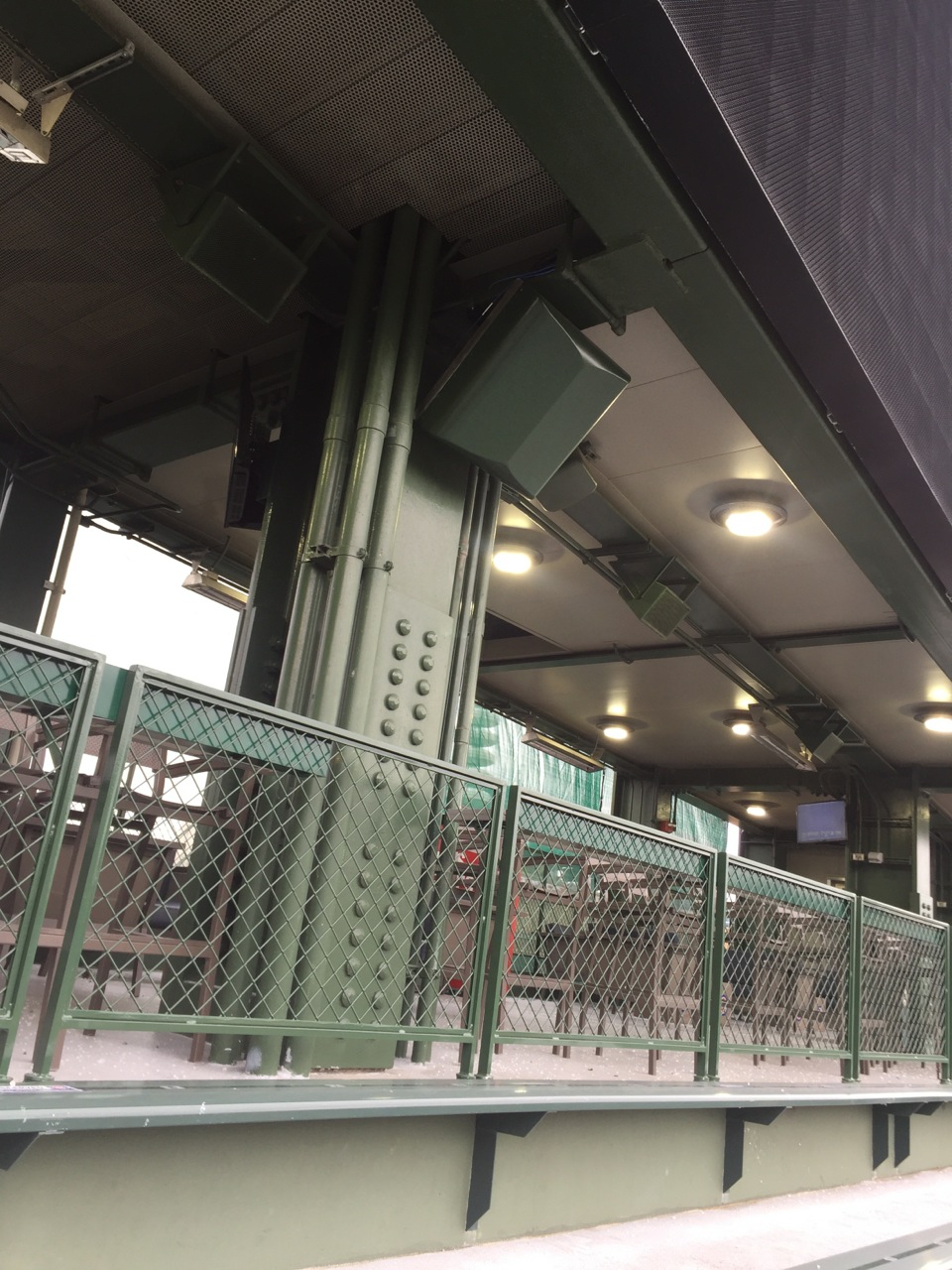

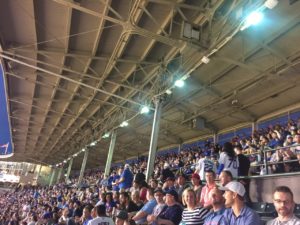

This look at the main seating shows the multiple overhangs where DAS antennas were mounted

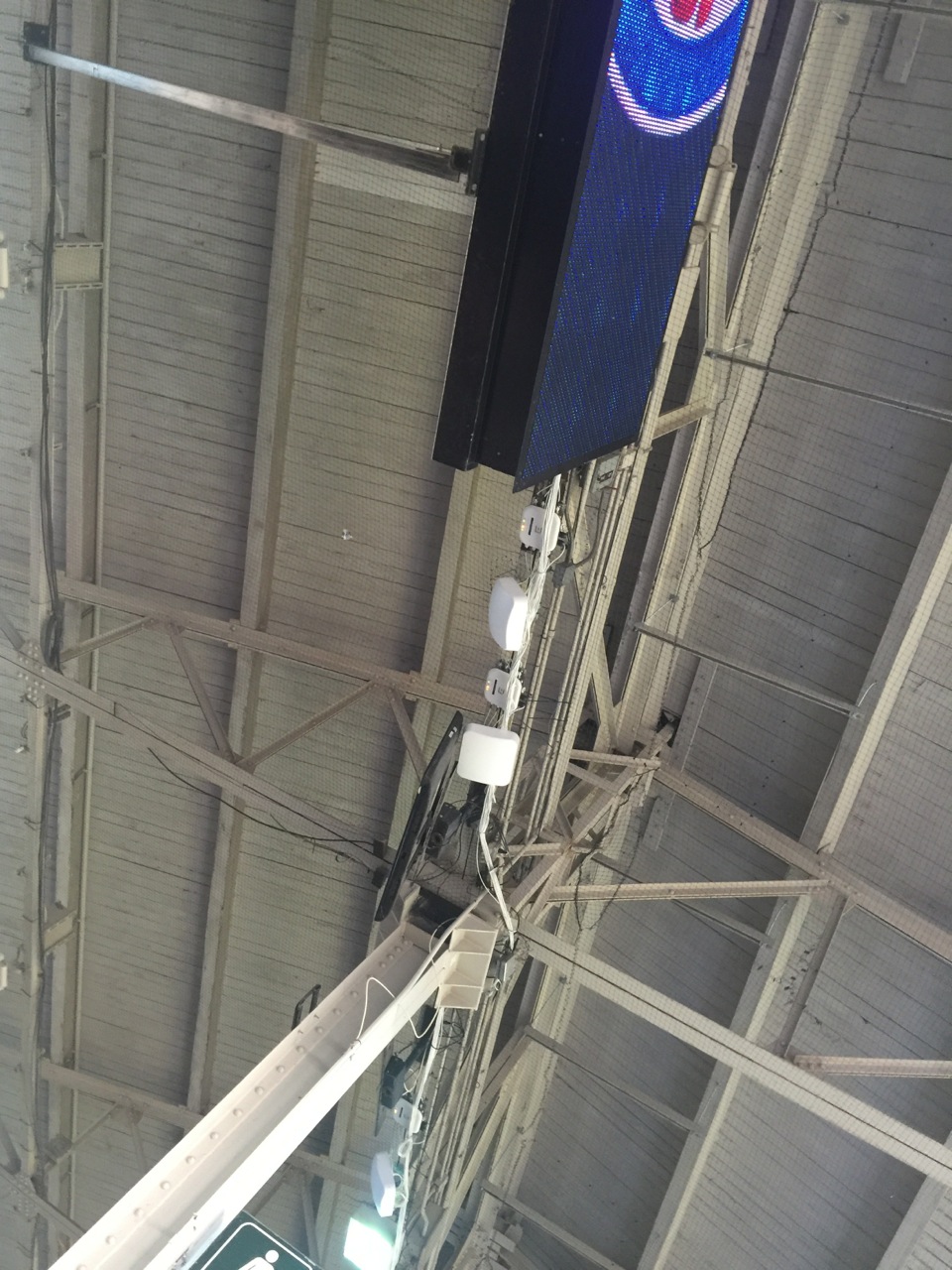

This look at the Wrigley Field bleachers shows the lack of any structures to hang antennas from

If you get hungry while at the Wrigley Field head end, this fine dining establishment is just outside the door

“How often does the train come by?” “So often you don’t notice.”

Filed Under: 4G LTE, AT&T, Baseball, Chicago Cubs, Comcast, DAS, Extreme Networks, Major League Baseball, Sprint, T-Mobile, Verizon Wireless, Wi-Fi Tagged With: 4G LTE, AT&T, Chicago Cubs, DAS, DAS Group Professionals, DGP, Extreme Networks, MLB, Mobile Sports Report, Paul Kapustka, Stadium Wi-Fi, Verizon Wireless, Wi-Fi, World Series, Wrigley Field
